TSC TTP-286MT 8 pistettä/mm 203dpi RTC näyttö TSPL-EZ USB RS232 LPT - tarratulostin

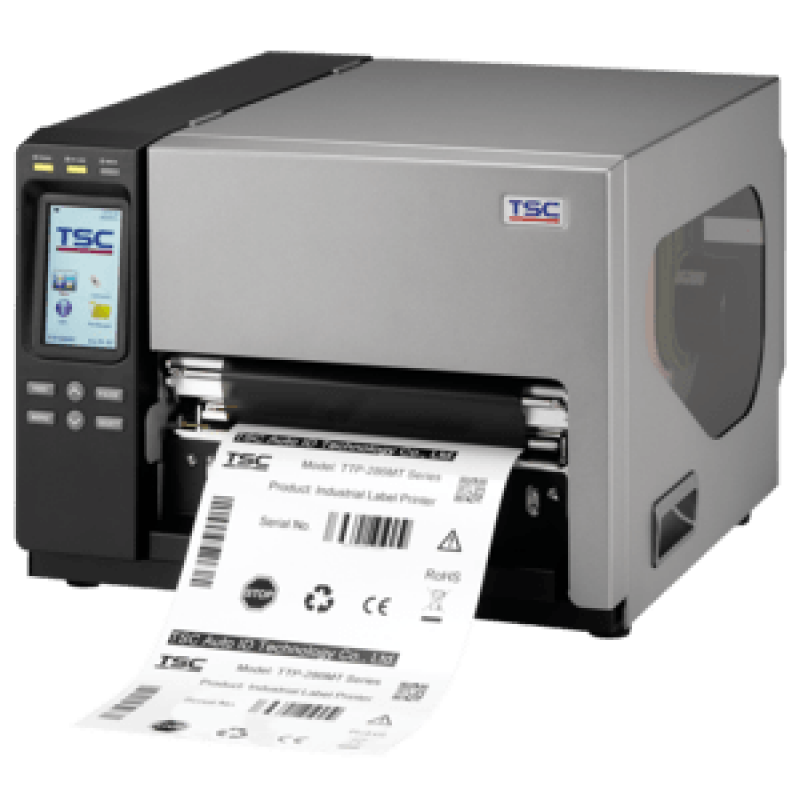

The TSC TTP-286MT is a robust industrial barcode label printer engineered for high-volume printing tasks where precision and durability are non-negotiable. Its 203 dpi resolution and 216 mm print width deliver crisp, scannable labels for logistics, manufacturing, and retail environments. The die-cast aluminum frame ensures stable operation even in demanding 24/7 production lines.

Advantages

Built to last with a rigid metal housing, this printer handles large 600-meter ribbon rolls and media rolls up to 208.3 mm diameter, minimizing downtime for reloads. The 3.5-inch color LCD with intuitive menu navigation simplifies setup and monitoring. Dual thermal transfer and direct thermal printing support flexible media choices, from wax ribbons to heat-sensitive labels, reducing consumable costs.

Suitable for

• Warehouse and distribution center shipping labels
• Manufacturing product identification and compliance tags
• Retail price marking and inventory management
• Healthcare specimen labeling and patient wristbands
• Logistics pallet and carton labeling

Key specifications

• Print resolution: 203 dpi (8 dots/mm)
• Maximum print width: 216 mm (8.5 inches)
• Print speed: up to 152 mm/s (6 ips)
• Print technology: Thermal transfer and direct thermal
• Connectivity: USB 2.0, RS-232 serial, parallel (LPT), internal Ethernet 10/100 Mbps
• Memory: 128 MB Flash, 128 MB SDRAM
• Display: 3.5-inch color LCD
• Media sensors: Gap, black mark, ribbon end, head open
• Ribbon capacity: 600 m length, width 50.8–220 mm
• Media thickness: 0.06–0.30 mm
• Real-time clock (RTC) for time/date stamping
• Printer language: TSPL-EZD
• Included software: BarTender UltraLite, Windows drivers

Recommendations

For operations requiring reliable, high-volume label production with minimal intervention, the TTP-286MT is an excellent choice. Pair it with TSC-approved thermal ribbons and labels to maintain print quality and extend printhead life. Regular cleaning of the printhead and platen roller is advised to ensure consistent output.
