Tuuletin APNX FP1-140 PWM ARGB 14 cm valkoinen 86,9 cfm 1,67 mmH2O

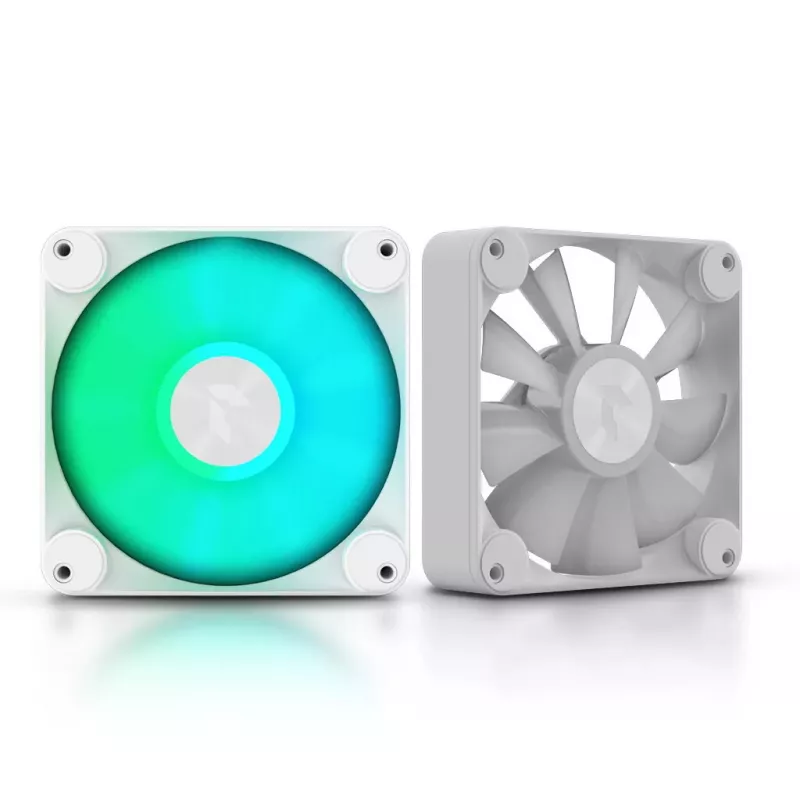

The APNX FP1-140 PWM ARGB 14 cm White fan is a 30 mm-thick case fan designed to improve cooling performance for desktop PC builds. With a 14 cm diameter, PWM control and ARGB lighting, the FP1 combines increased airflow and selectable illumination while retaining quiet operation thanks to hydraulic bearing technology. Available in black or white finishes, this fan is intended for use in computer cases where higher airflow and visual customization are required.

Advantages

Thanks to a 30 mm frame and specially shaped blades, the FP1 offers a 30–50% increase in cooling power compared with standard 25 mm fans. It delivers up to 86.9 CFM of airflow at a maximum speed of around 1600 RPM and reaches a static pressure of 1.67 mmH2O, which helps move air effectively through radiators and dense case filters. The fan features ARGB illumination for customizable lighting and includes an ultra-thick shock-absorbing pad to reduce vibration and improve mounting stability.

Suitable for

• Case cooling for mid-tower and full-tower desktop PCs
• Radiator fans in liquid-cooling setups that need moderate static pressure
• Systems where ARGB lighting integration is desired
• Builds requiring reduced vibration and stable fan mounting

Key specifications

• Model: APNX FP1-140 PWM ARGB
• Size: 140 mm (14 cm) diameter, 30 mm thickness
• Maximum airflow: 86.9 CFM
• Maximum static pressure: 1.67 mmH2O
• Max speed: up to ~1600 RPM (PWM-controlled)
• Bearing type: hydraulic bearing (silent operation)
• Lighting: ARGB (addressable RGB), on/off control
• Colors available: White and Black
• MPN: FP1-140 WH, EAN: 4711099474431

How to use

Install the FP1-140 fan in a standard 140 mm fan mount inside your PC case using the supplied mounting hardware. Connect the 4-pin PWM power cable to a compatible motherboard header or fan controller to enable automatic speed regulation. Attach the ARGB connector to an addressable RGB header or compatible controller to manage lighting effects. Ensure the shock-absorbing pad contacts the case to reduce vibration during operation.

Recommendations

For optimal performance, use PWM fan control to allow the motherboard to adjust speed based on system temperatures. When using the fan on radiators or behind dust filters, increase fan speed during heavy loads to maintain airflow. Choose white or black finish to match your build aesthetic and keep the ARGB controller firmware up to date for best lighting compatibility.
