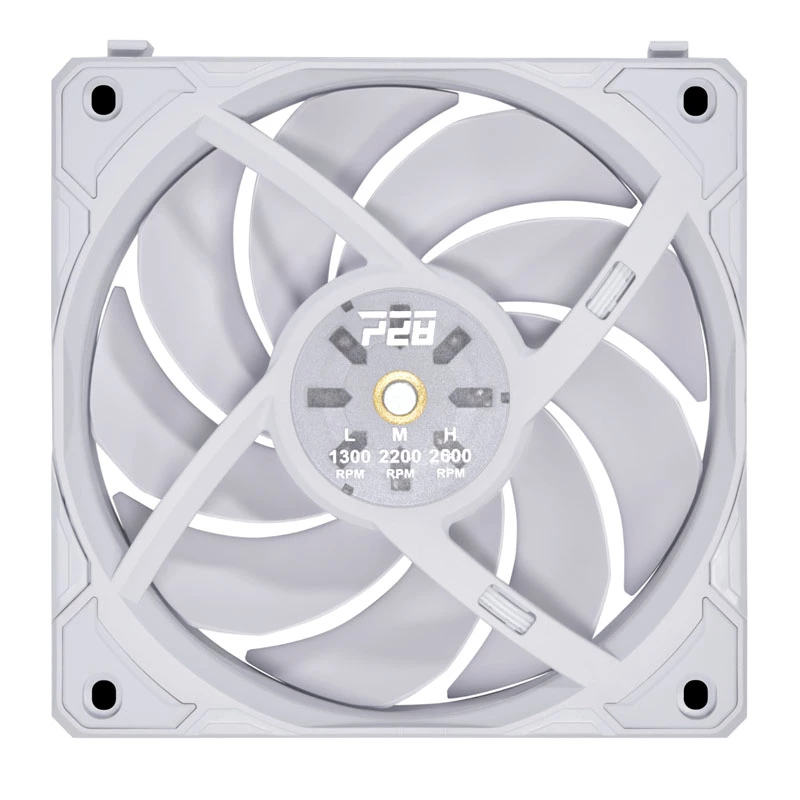

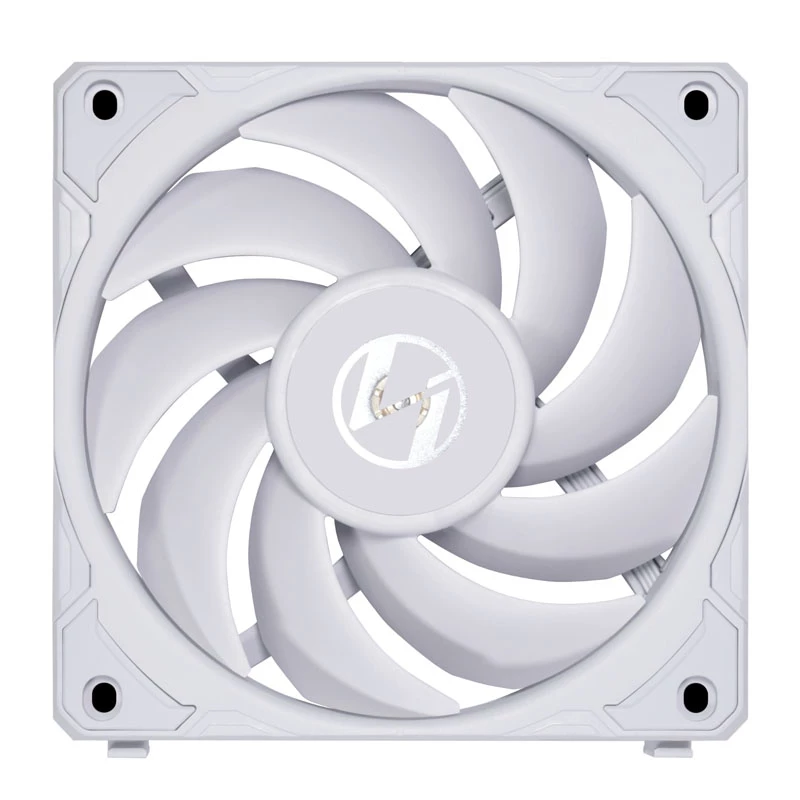

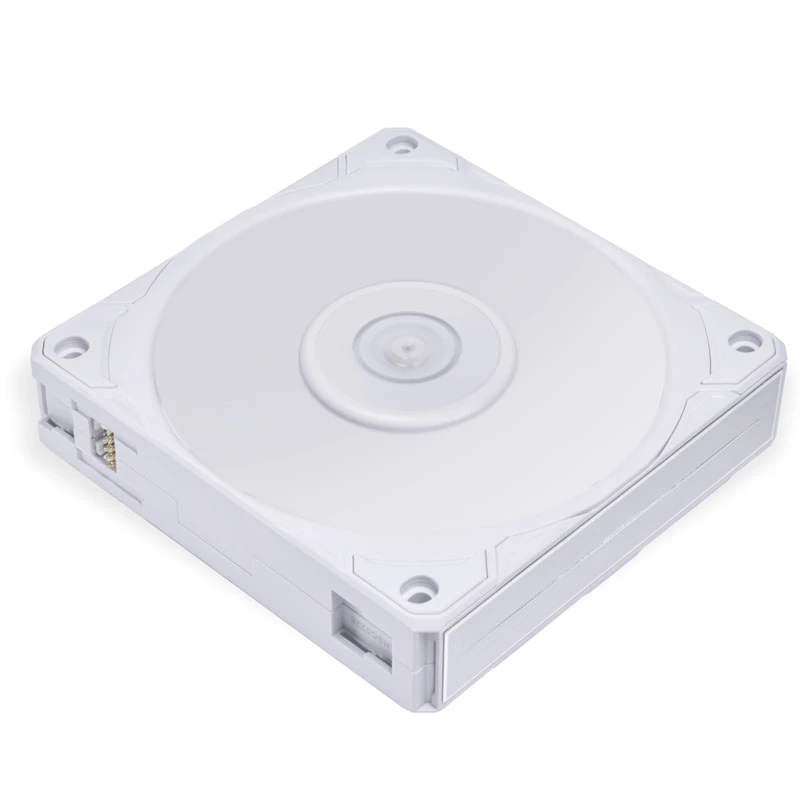

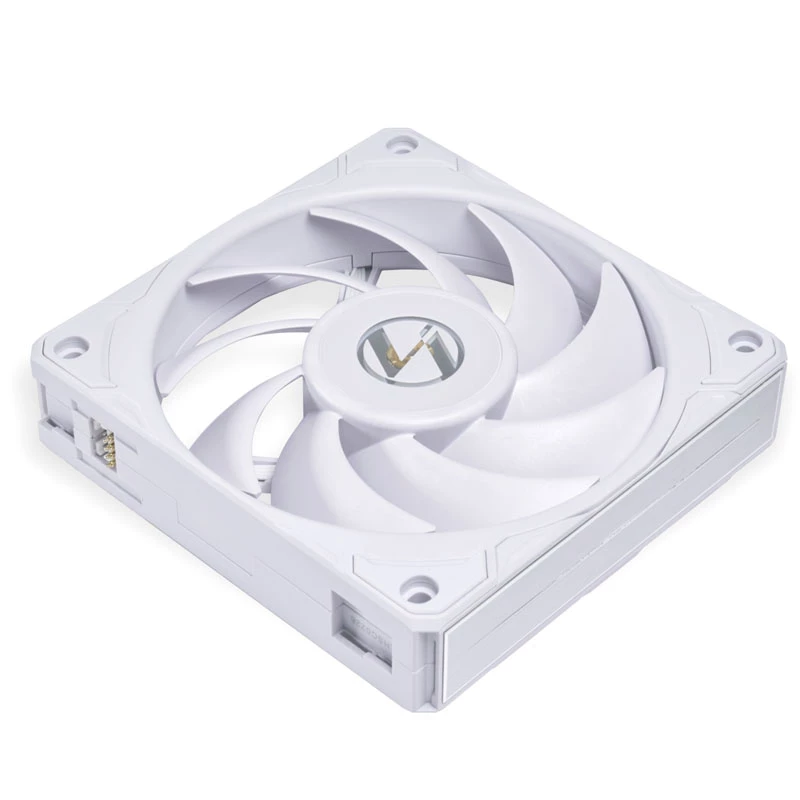

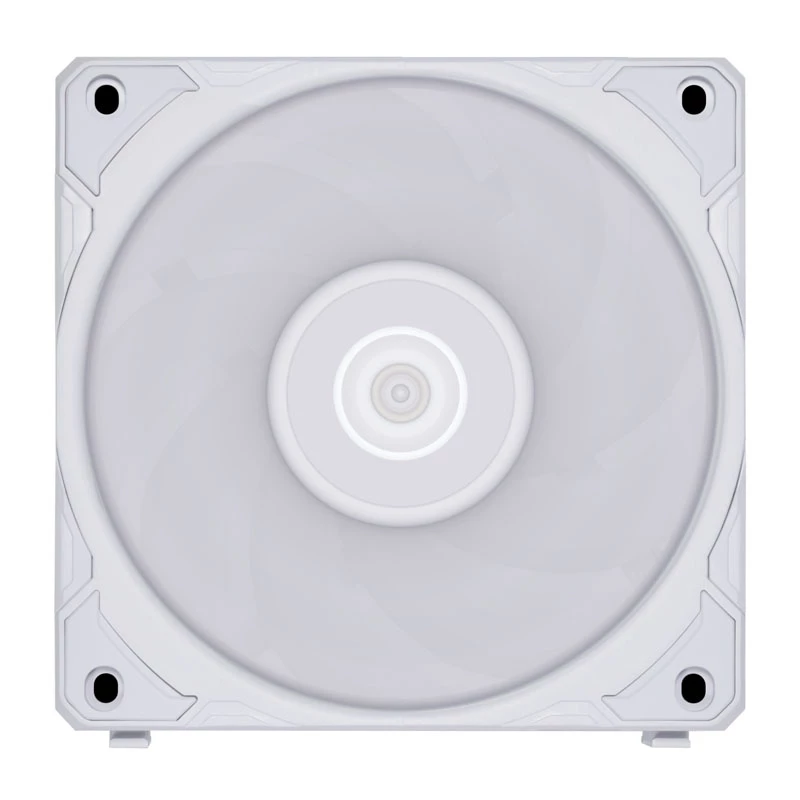

Tuuletin Lian Li UF-P28120-1W 12 cm 300-2600 RPM valkoinen

The Lian Li UNI FAN P28 (model UF-P28120-1W) is a 120 mm performance-oriented case fan designed for both air and water cooling setups. It delivers a wide speed range (300–2600 RPM) with strong airflow and static pressure, while using a 28 mm-thick frame and LCP (liquid-crystal polymer) blades for increased rigidity and optimized acoustic performance. The fan is available in white with brushed aluminum side strips and includes a magnetic fan speed controller for convenient installation and control.

Advantages

The UNI FAN P28 combines a thicker 28 mm frame and LCP fan blades to increase impeller surface and improve airflow and static pressure without significantly raising noise. A metal bearing shell and copper shielding reduce friction and vibration for more stable, longer-lasting operation. The brushed aluminum side accents reflect internal LEDs for an aesthetic effect, and the bundled magnetic speed controller simplifies cable management and fan speed adjustment.

Suitable for

• CPU air coolers and GPU/VRM ventilation in PC cases
• Radiator fans in water cooling loops
• High-performance builds requiring strong static pressure
• Systems where neat cable management and linked fan control are desired

Key specifications

• Model: UF-P28120-1W
• Fan diameter: 120 mm
• Frame thickness: 28 mm
• Speed range: 300–2600 RPM
• Maximum static pressure: 4.79 mmH2O
• Bearing / motor features: metal bearing shell, copper shielding, Fluid Dynamic Bearing technology
• Blade material: Liquid-crystal polymer (LCP)
• Color: White with brushed aluminum side strips
• Package: triple pack with magnetic fan speed controller (supports up to 6 fans in two clusters)
• MPN: UF-P28120-1W
• EAN: 4718466013354

How to use

Install the UF-P28120-1W in the desired fan mount or radiator slot using compatible 25 mm fan screws in the indented screw holes. Connect the fans and magnetic speed controller according to the included interlocking system, allowing up to six fans to be grouped into two clusters controlled by a single controller. Attach the magnetic controller to a metal surface inside the case for easy access and routing. Configure fan curves or manual speeds in the system or controller to match cooling needs.

Recommendations

The fan is suitable for both air cooling and water cooling radiators where high static pressure and airflow are required. For radiator use, mount the fans to prioritize static pressure toward the radiator fins. When installing multiple fans, balance speed and noise by grouping fans on the magnetic controller and setting an appropriate RPM range to achieve desired thermal performance without excessive acoustic output.
