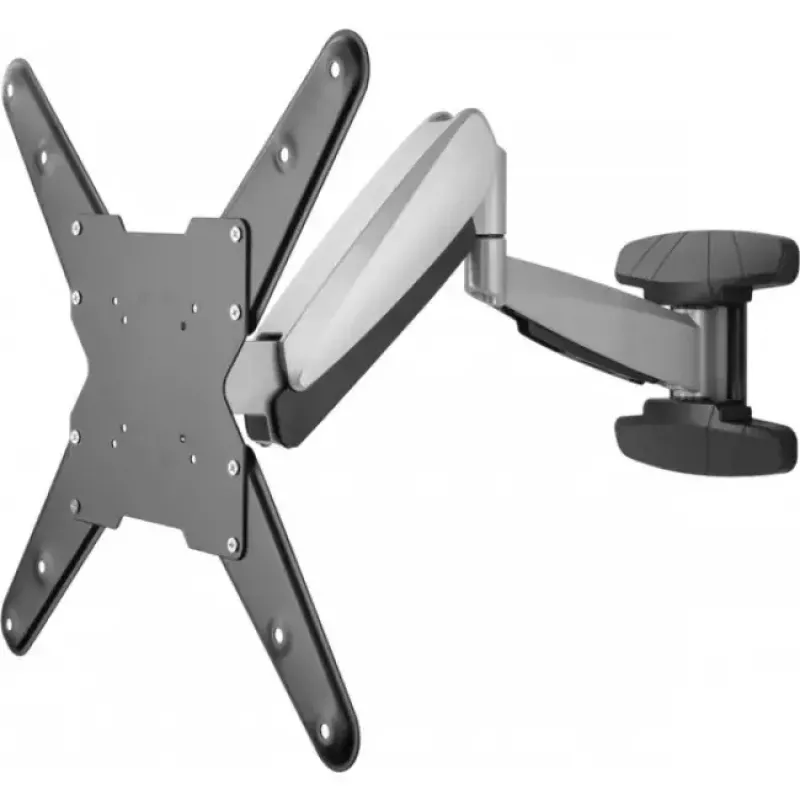

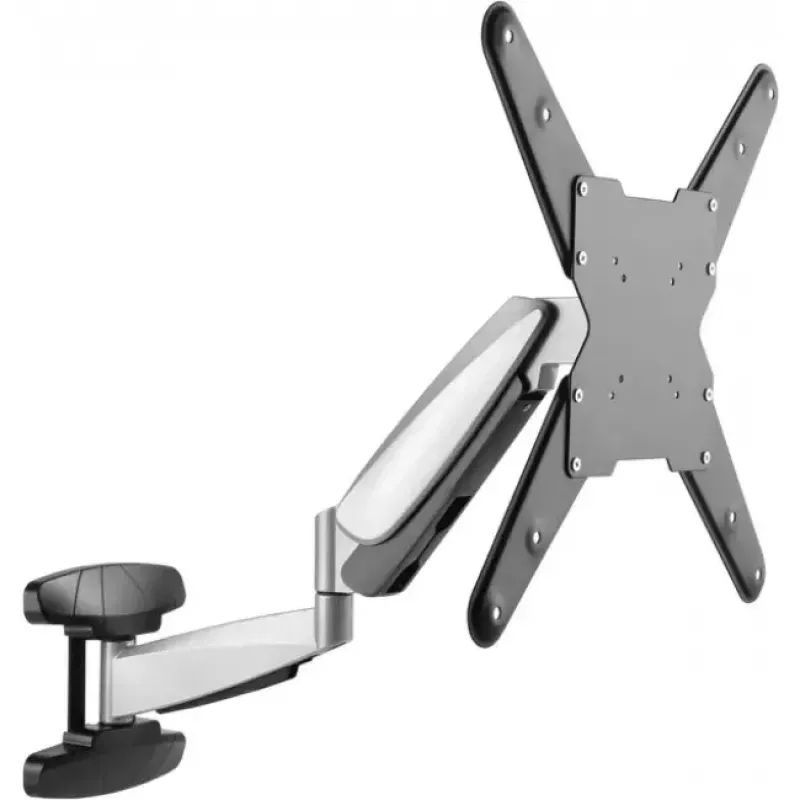

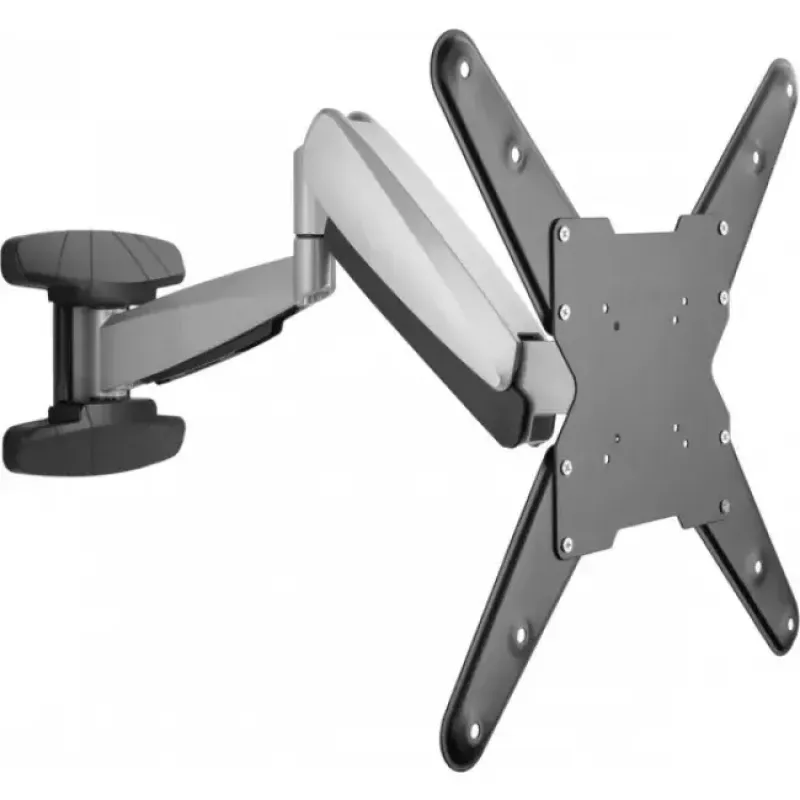

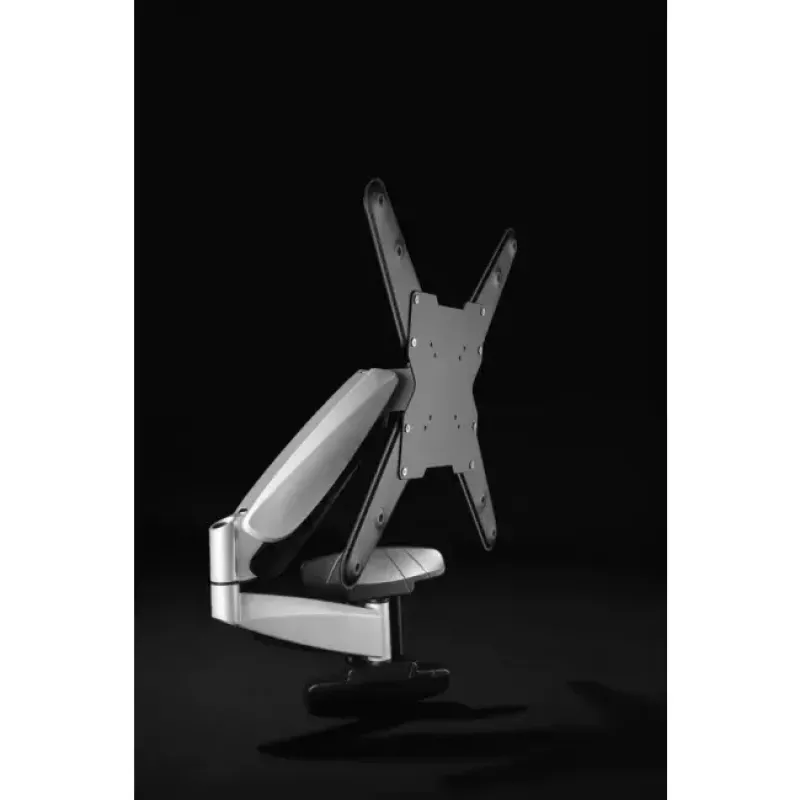

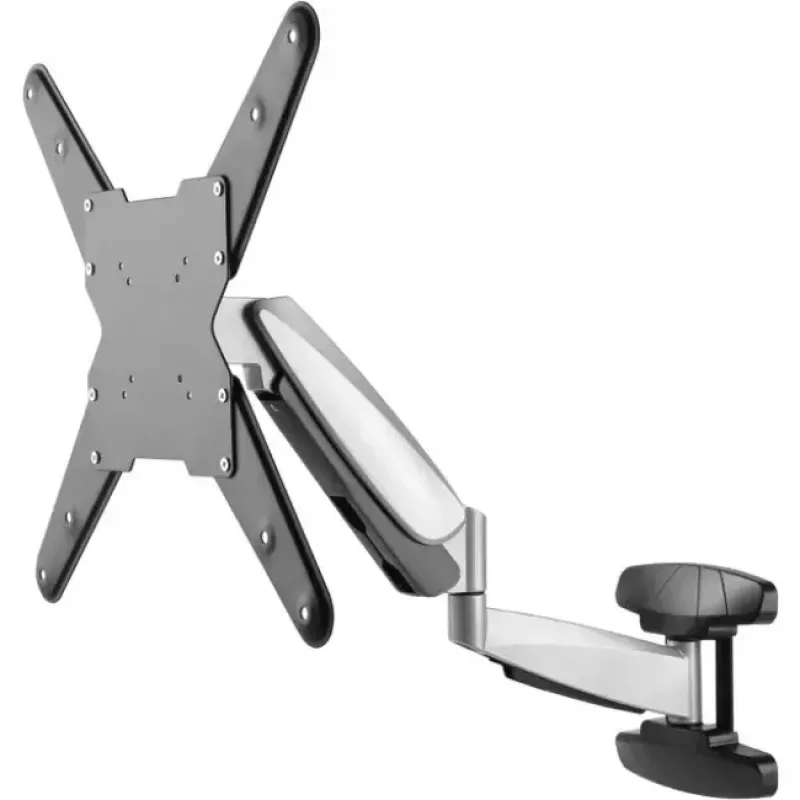

TV-seinäteline Schwaiger LWHD5530 511 musta

The Schwaiger LWHD5530 511 Black TV wall mount bracket is a compact, single-display mounting solution designed for flat-panel TVs and monitors with VESA patterns from 75x75 mm up to 400x400 mm. Built to support screens up to 30 kg, the bracket provides adjustable tilt and slight swivel ranges while allowing the display to be positioned close to the wall or pulled out for viewing and cable access. The matte black finish offers a discreet look that fits home and office interiors.

Advantages

This bracket combines low weight with a relatively high load capacity, enabling easy installation without bulky hardware. The extendable arm allows the display to sit as close as 5.8 cm from the wall or extend to 59.5 cm for optimal viewing angles and service access. Adjustable tilt from -20° to 10° and a small swivel range help reduce glare and fine-tune the viewing position. The product's compatibility with a wide range of VESA standards simplifies selection for many common TV and monitor sizes.

Suitable for

• Mounting a single flat-screen TV or monitor with VESA 75x75 up to 400x400
• Rooms where a slim, black wall-mounted solution is preferred
• Situations requiring occasional adjustment of tilt and extension for viewing or maintenance

Key specifications

• VESA compatibility: 75 x 75 mm to 400 x 400 mm
• Maximum weight capacity: 30 kg
• Mount type: single-display wall bracket with extendable arm

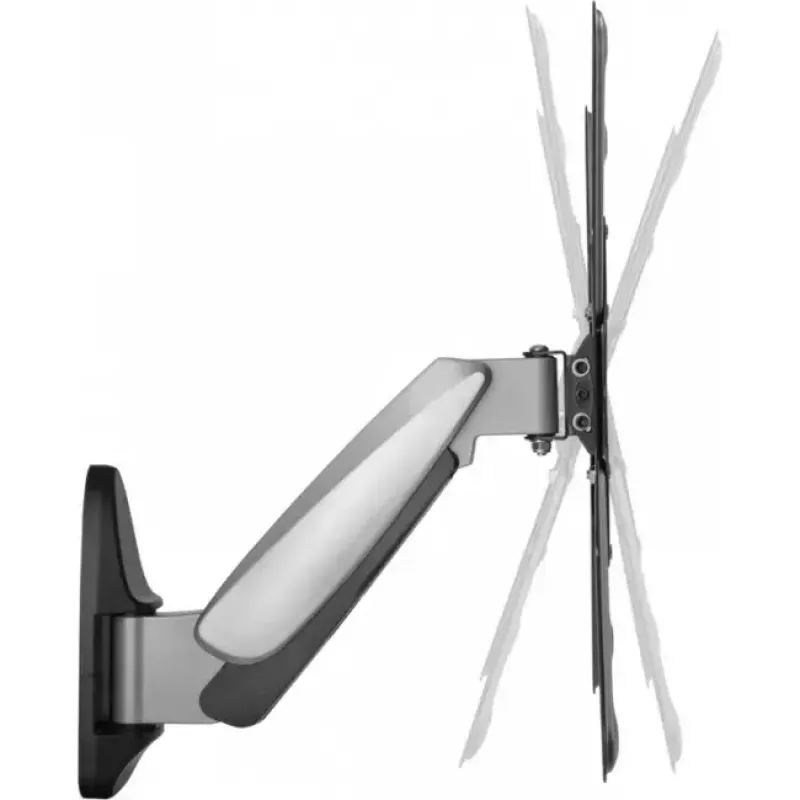

• Tilt range: -20° to 10°
• Swivel range: -3° to 3°

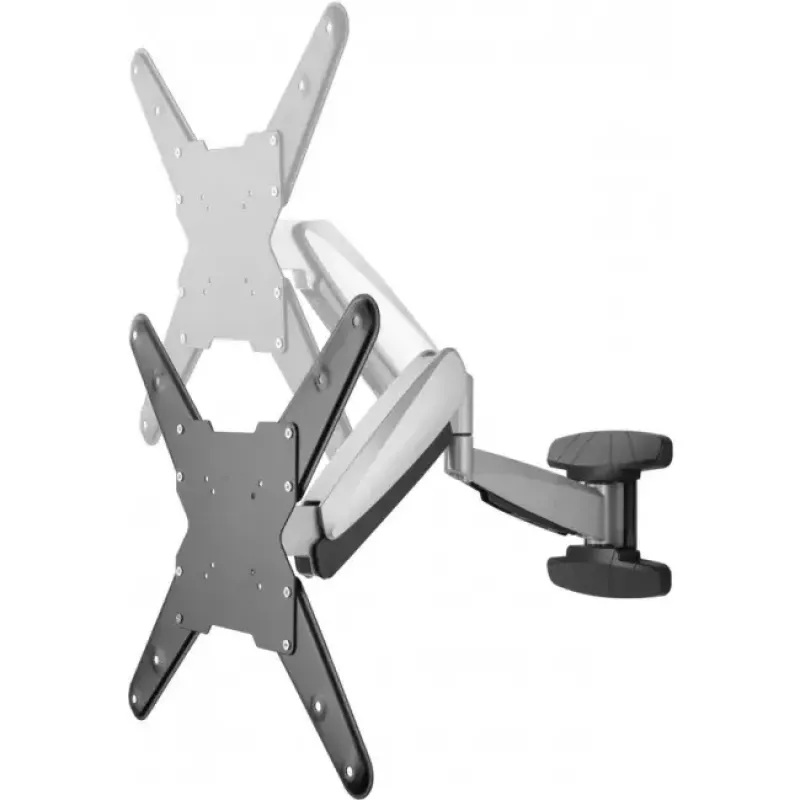

• Extension from wall: 5.8 cm to 59.5 cm
• Product colour: Black
• Product weight: 0.9 kg

How to use

Select a suitable mounting location on a solid wall and verify that the chosen display's weight and VESA pattern fall within the bracket's specifications. Use appropriate anchors or fixings for the wall material and follow the included installation instructions to attach the wall plate first, then secure the display to the bracket. Adjust the arm to the desired extension and set the tilt and swivel angles to reduce reflections and establish a comfortable viewing position. Check all fastenings after installation and periodically to ensure continued safety.

Recommendations

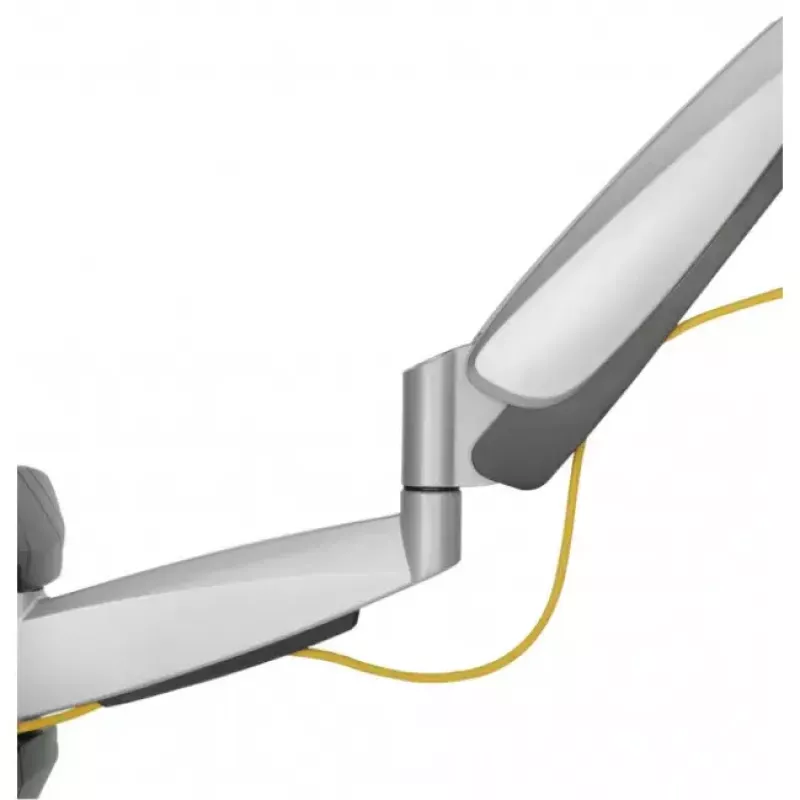

For stable installation, mount on load-bearing surfaces and use hardware appropriate for the wall type. Do not exceed the 30 kg maximum load. When positioning the display, consider cable routing and leave enough clearance at full extension for ventilation and access.
