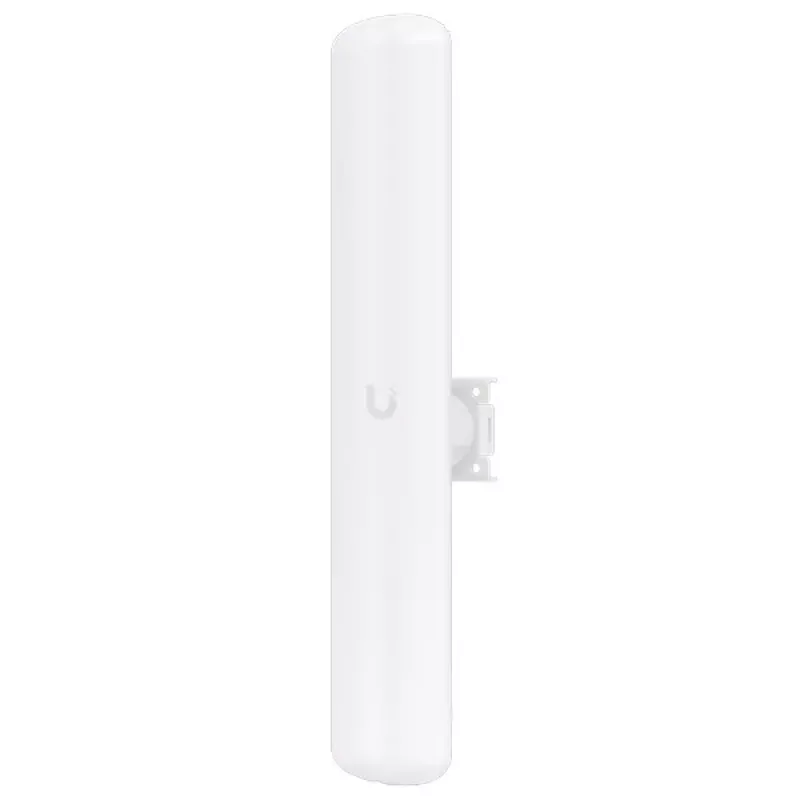

UBIQUITI LiteBeam 5AC-16-120 tukiasema Wi-Fi 5

The UBIQUITI LiteBeam 5AC-16-120 is a high-performance outdoor access point designed for long-range wireless connectivity. Featuring Wi-Fi 5 (802.11ac) technology and a 16 dBi sector antenna with a 120° beamwidth, it delivers reliable throughput of over 450 Mbps. Ideal for point-to-multipoint deployments, this device is built to withstand harsh outdoor conditions with an operating temperature range of -40 to 70° C and UV-stabilized plastic enclosure.

Advantages

With its 2x2 MIMO configuration and 5 GHz frequency band, the LiteBeam 5AC-16-120 offers excellent signal strength and interference mitigation. The included 24V passive PoE adapter simplifies installation, while the pole-mount kit ensures flexible deployment. Its compact design and low power consumption (7 W) make it an energy-efficient choice for expanding network coverage.

Suitable for

• Outdoor wireless bridging and backhaul
• ISP last-mile connectivity
• Large campus or industrial networks
• Video surveillance and IoT backhaul

Key specifications

• Wireless Standard: Wi-Fi 5 (802.11ac)
• Frequency Band: 5 GHz
• Antenna Gain: 16 dBi
• Antenna Type: Sector
• Beamwidth (Azimuth): 120°
• Beamwidth (Elevation): 120°
• MIMO Configuration: 2x2 MIMO
• Max Throughput: 450+ Mbps
• Networking Interface: 1x 10/100/1000 Mbps Ethernet Port
• Processor: MIPS 74Kc
• System Memory: 64 MB DDR2
• Power Method: 24V Passive PoE
• Max Power Consumption: 7 W
• PoE Adapter: 24V, 0.3A Gigabit PoE Adapter (Included)
• Operating Temperature: -40 to 70° C
• Operating Humidity: 5 to 95% Noncondensing
• Enclosure Material: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount Kit (Included)
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Certifications: CE, FCC, IC

Recommendations

For optimal performance, pair the LiteBeam 5AC-16-120 with a compatible UBIQUITI switch or router. Ensure proper grounding and surge protection for outdoor installations. The device supports web-based management for easy configuration and monitoring.
