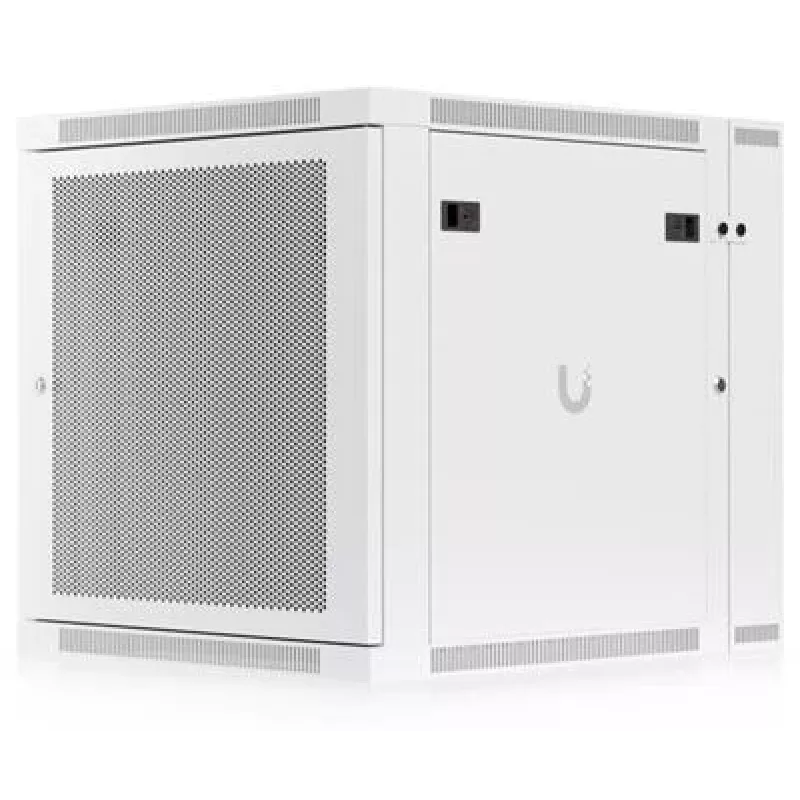

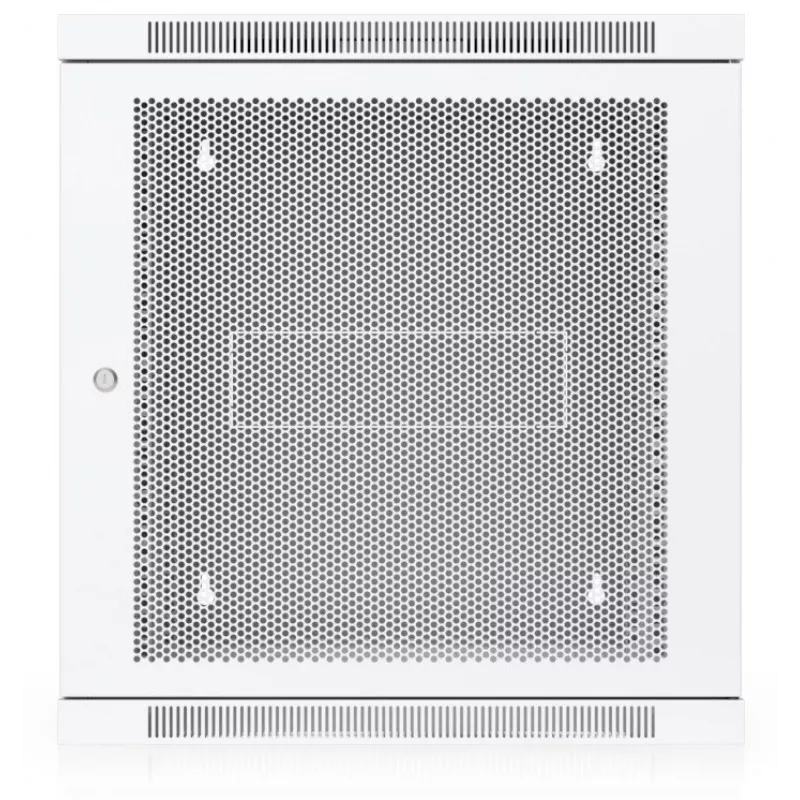

Ubiquiti-verkkokaappi UACC-Rack-12U-Wall-SW-P - kaappi

Network equipment often ends up in cramped, insecure spaces, exposed to dust and accidental tampering. The Ubiquiti UACC-Rack-12U-Wall-SW-P solves this by providing a sturdy, lockable, 12U wall-mount enclosure that keeps your switches, patch panels, and other 19-inch gear organized, secure, and properly ventilated. Its welded cold-rolled steel frame supports up to 90 kg, while the reversible tempered glass front door and removable side panels offer both visibility and easy access during installation and maintenance.

Who is it for

This rack is ideal for IT administrators, system integrators, and small-to-medium businesses that need to mount networking hardware in limited floor space. It suits branch offices, retail back rooms, classrooms, or any environment where a floor-standing rack is impractical but professional cable management and physical security are still required.

Main features

• 12U wall-mount design saves floor space and keeps equipment at a convenient working height.
• Welded cold-rolled steel construction with black finish for durability and a clean look.
• Reversible, tempered glass front door with keyed lock prevents unauthorized access while allowing visual monitoring of LEDs.
• Removable, lockable side panels provide easy access for cabling and hardware changes.
• Adjustable mounting depth from 152 to 254 mm (6–10 inches) accommodates a wide range of rack-mount devices.
• Top and bottom cable entry points with passive ventilation; top panel is fan-ready for active cooling if needed.
• Includes mounting hardware, cage nuts, and keys for immediate installation.

Specifications

• Rack units: 12U
• Material: Cold-rolled steel
• Colour: Black
• Max static load capacity: 90 kg (200 lbs)
• Mounting depth: 152–254 mm (6–10 in)
• Internal max usable depth: approx. 380 mm

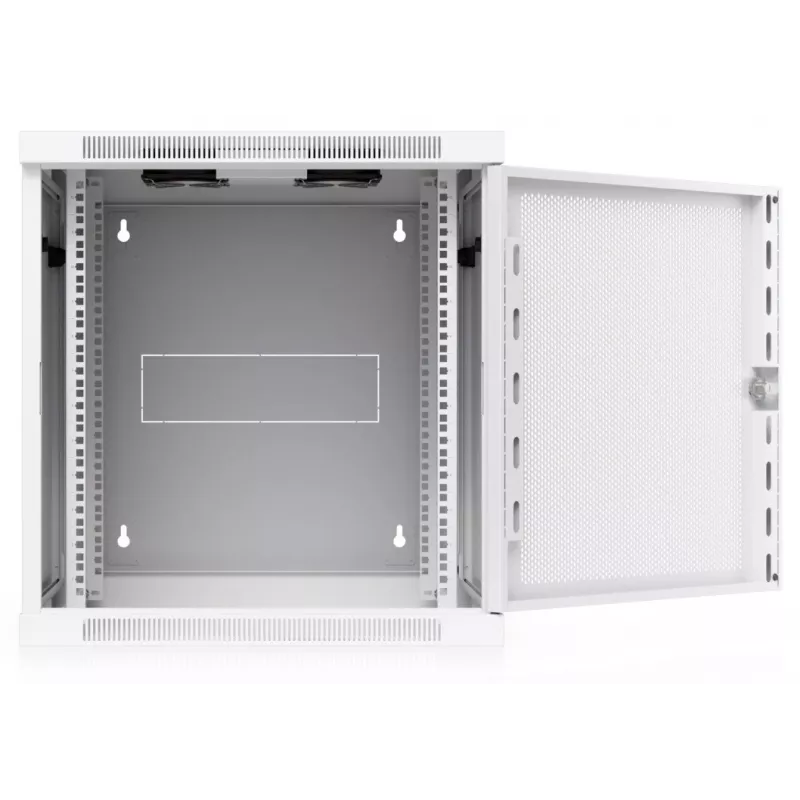

• Front door: Reversible tempered glass, lockable
• Side panels: Removable, lockable
• Ventilation: Passive, fan-ready top panel
• Compatibility: Standard 19-inch rack-mount equipment
• Included accessories: Mounting hardware, cage nuts, keys

Tips

Before mounting, verify that the wall structure can support the combined weight of the rack and installed equipment. Use the adjustable depth rails to match your deepest device, and plan cable routing through the top or bottom entries to maintain a tidy installation. For high-density PoE switches, consider adding a fan kit to the top panel to improve airflow.
