UPS ARMAC O/2000I/PF1 2 kVA (2000 W) torni-UPS, 8x IEC C13, LCD, AVR, 230 V

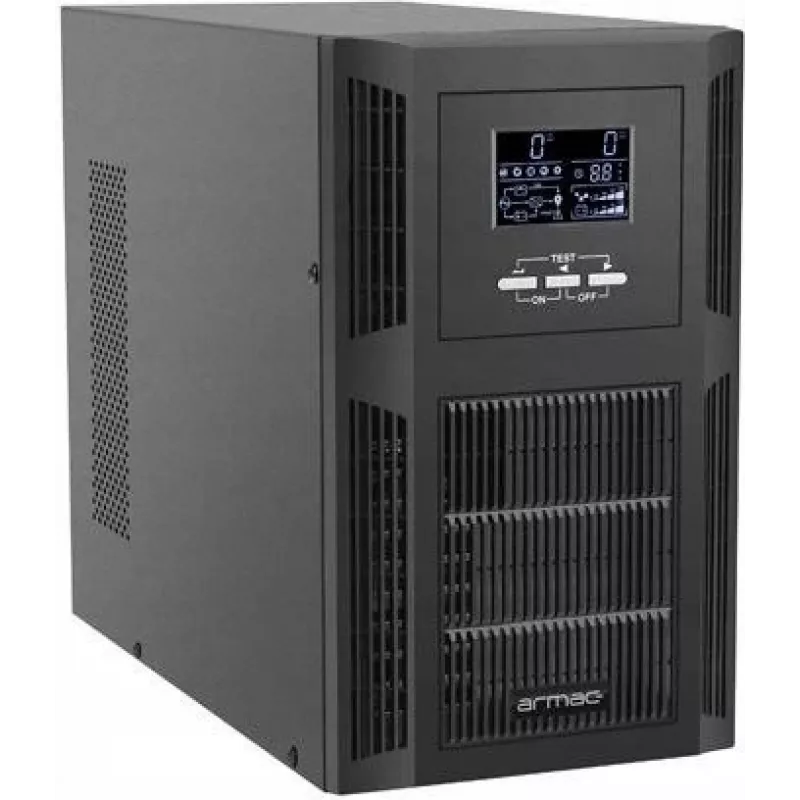

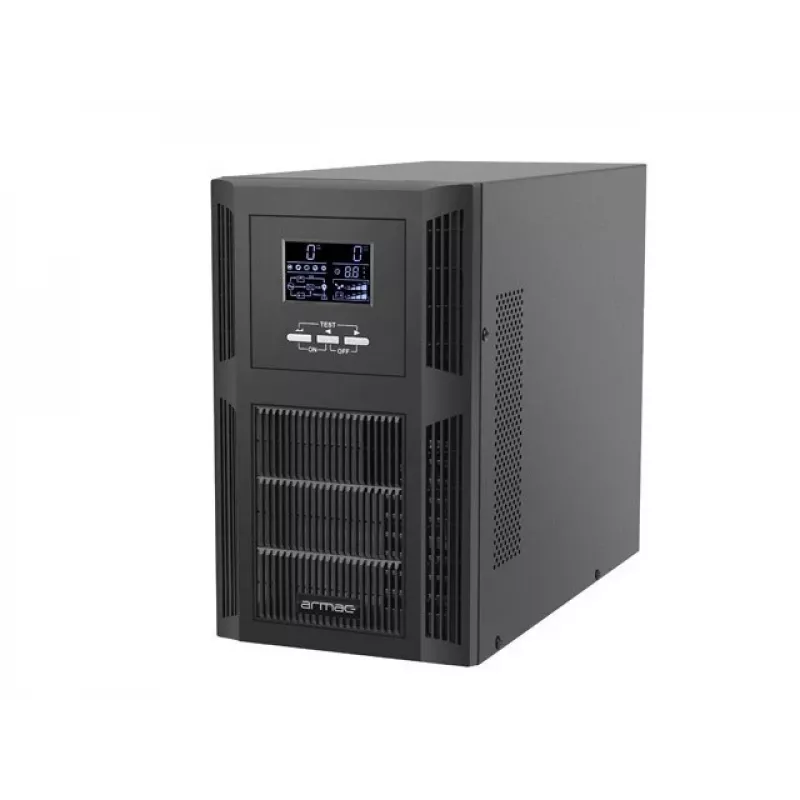

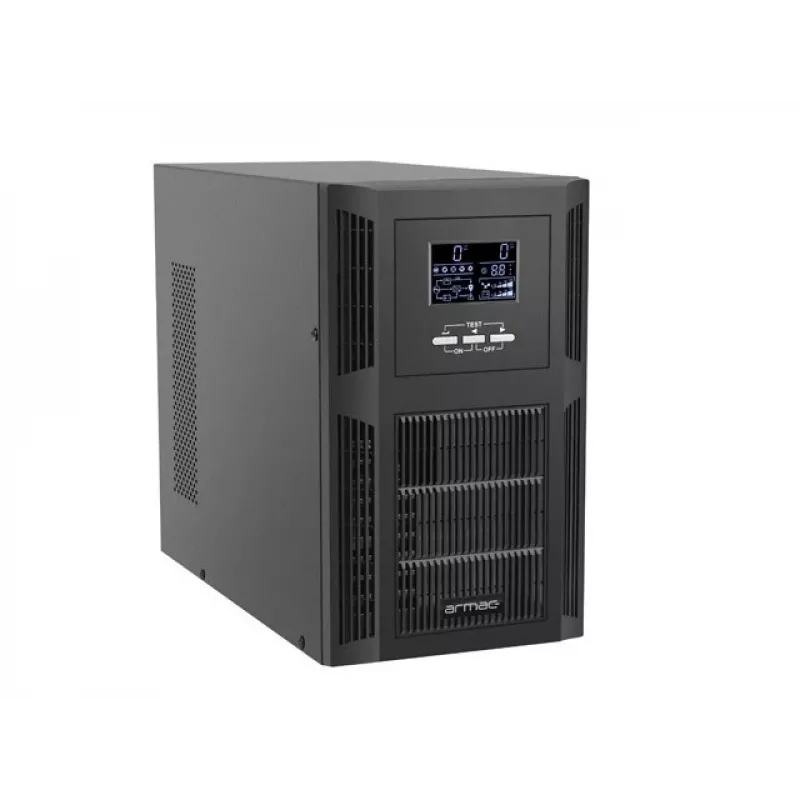

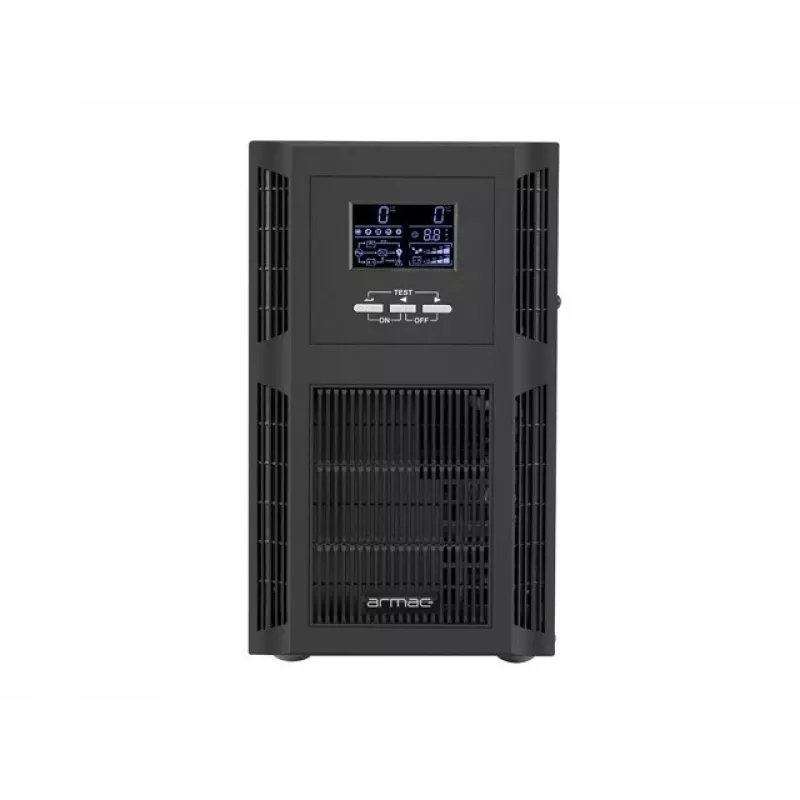

The Armac O/2000I/PF1 is a double-conversion online UPS with a capacity of 2 kVA (2000 W) designed to provide continuous, clean power for sensitive and high-consumption electronic equipment. The unit features 8 IEC 320 C13 AC outlets, an LCD panel for configuration and monitoring, USB and RS-232 communication, and built-in lead‑acid batteries with automatic charging and periodic self-tests.

Advantages

This UPS maintains a Power Factor of 1.0 so nearly all input power is available at the output, enabling a maximum supported load of 2000 W. Continuous online operation eliminates transfer time to battery, reducing risk to connected devices. The device includes adjustable cut‑off voltage settings from the LCD to limit excessive battery discharge and extends battery life, and it performs an automatic battery discharge test every 60 days. It supports connection of dedicated B/0609/O battery expansion modules to increase backup time and has internal processor control for safe automatic start, charging, and overload protection. Reinforced internal components improve reliability during transport.

Suitable for

• Protecting powerful desktop computers and workstations
• Supporting servers and network equipment in small offices
• Powering devices with motors or heaters (laser printers, scanners, gates, roller shutters, heating furnaces)
• Environments requiring zero transfer time and a pure sine wave output

Key specifications

• Model: Armac O/2000I/PF1
• Output power capacity: 2 kVA (2000 VA)
• Maximum output power: 2000 W
• Output waveform: Full pure sine wave (double conversion online)

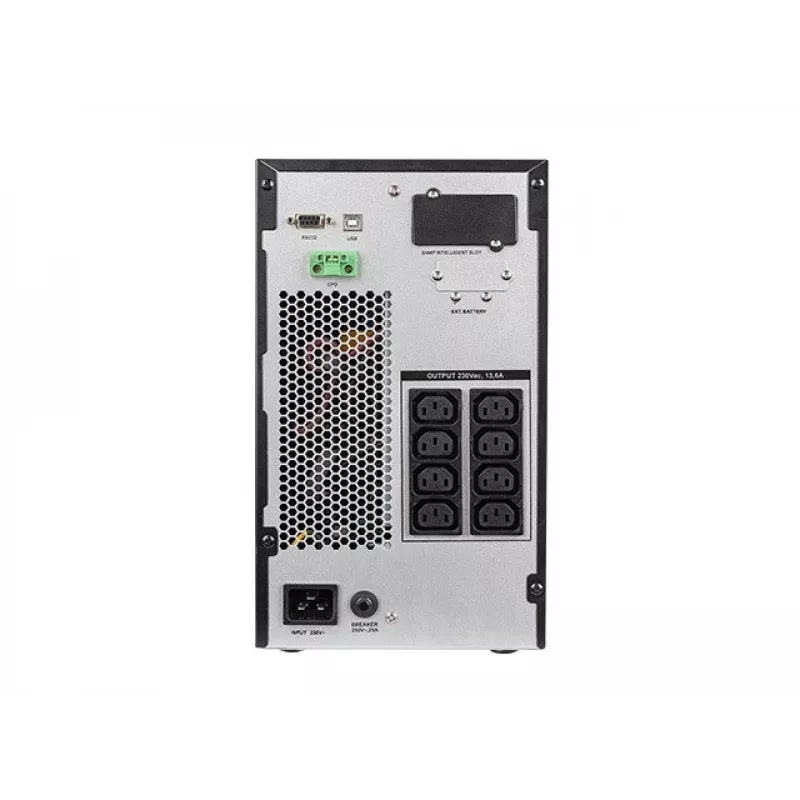

• AC outlets: 8 × IEC 320 C13
• Communication ports: 1 × USB 2.0, RS-232
• Battery type: Lead‑acid (internal), automatic charging
• Weight: 14.1 kg
• Color: Black

How to use

Install the UPS on a stable, ventilated surface and connect the mains supply. Configure basic settings, including cut‑off voltage and operational modes, using the LCD panel. Connect equipment to the IEC C13 outlets and use the USB or RS‑232 connection with PowerManager II software to monitor status and set shutdown or notification policies. If extended runtime is required, connect one or more dedicated B/0609/O battery modules, ensuring the combined battery voltage matches the UPS battery voltage before powering the unit.

Recommendations

Perform regular visual checks and keep the UPS in a dry, dust‑free environment. Allow the unit to complete its automatic battery self‑test cycles and follow manufacturer guidance for periodic battery replacement to maintain reliable backup time.
