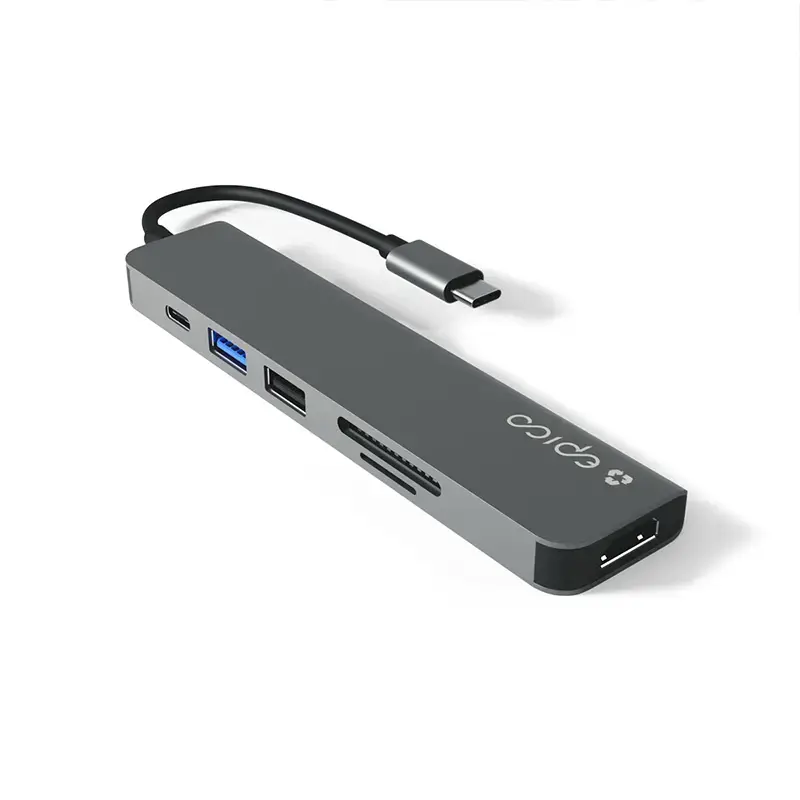

USB-keskitin Epico 9915112100080 — USB Type-C-isäntä, HDMI, USB 2.0, USB Type-C, MicroSD-/SD-kortinlukija, alumiini/TPU, harmaa

Epico Resolve 8K Aluminium Hub 6in1 is a compact USB-C interface hub designed to expand connectivity for laptops, tablets and other USB-C devices. The hub combines HDMI output, a USB-C port with pass-through power delivery, two USB-A ports and an SD/MicroSD card slot in a recycled aluminium and recycled plastic housing. Its HDMI output supports up to 8K/30Hz and the USB-C power delivery supports up to 100W for charging connected hosts.

Advantages

The hub is built from 100% recycled aluminium alloy and recycled TPE/ABS plastics, reducing material waste while keeping a slim, portable form factor (30 × 110 × 13 mm) and light weight (50 g). It provides high-speed data transfer via the USB-C port (up to 10 Gbps) and USB-A 3.0 (up to 5 Gbps), along with backwards-compatible USB-A 2.0 support. The integrated card reader accepts SD/SDHC/SDXC (SD3.0, UHS-I) cards, and the HDMI output is HDCP 1.4/2.2 compatible for high-resolution video.

Suitable for

• Connecting external displays and projectors to USB-C laptops and tablets
• Transferring photos and video from SD or MicroSD cards
• Charging a laptop or device via USB-C PD while using peripherals
• Attaching USB accessories such as flash drives, mice or keyboards

Key specifications

• Host interface: USB Type-C
• HDMI output: up to 8K/30Hz, also supports 4K/120Hz, HDCP 1.4/2.2
• USB-C data: up to 10 Gbps; USB-C PD charging: up to 100 W
• USB-A 3.0: up to 5 Gbps; USB-A 2.0: up to 480 Mbps
• Card reader: SD/MicroSD — SD/SDHC/SDXC, SD3.0, UHS-I
• Material: recycled aluminium, recycled TPE, recycled ABS
• Dimensions: 30 × 110 × 13 mm; Weight: 50 g

How to use

Plug the hub into a device with a USB-C host port. Connect an external display to the HDMI port, insert an SD or MicroSD card into the card slot, and attach USB peripherals to the USB-A ports as needed. To charge the host device while using the hub, connect a USB-C PD power adapter to the hub’s USB-C power input; the hub supports pass-through charging up to 100 W.

Recommendations

For best video performance use a high-quality HDMI cable and verify display device support for target resolutions. When transferring large files, connect high-speed USB devices to the USB-A 3.0 port or use the USB-C data connection. Use a compatible USB-C PD charger to ensure stable pass-through charging.
