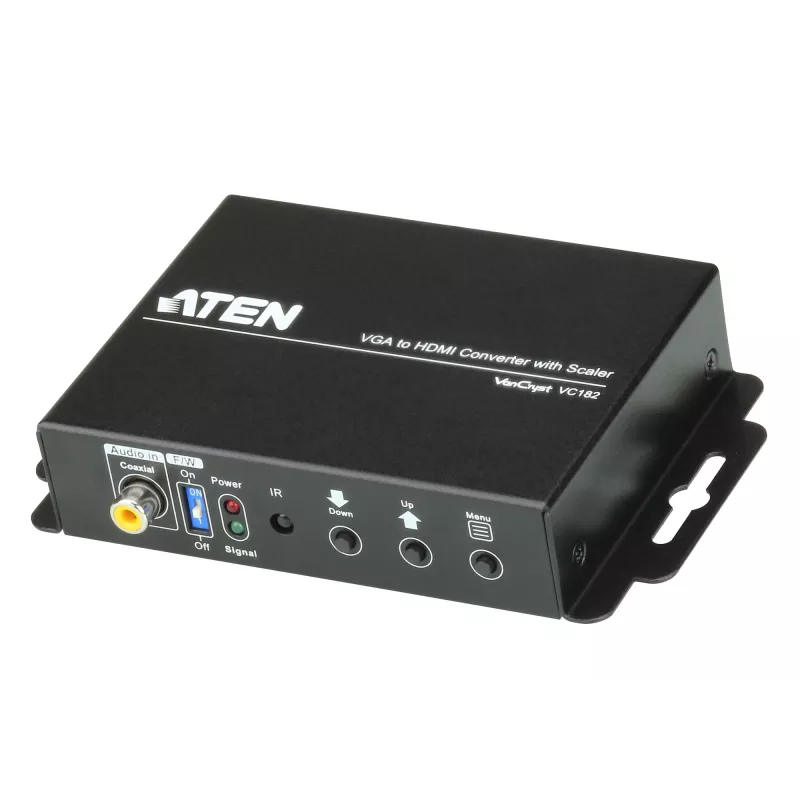

VGA-HDMI-muunnin ATEN VC182-AT-G

The ATEN VGA to HDMI Converter ATEN VC182-AT-G converts analog VGA signals into digital HDMI output, allowing connection of older VGA devices to modern HDMI displays. The unit includes a scaling engine that adjusts output resolution up to 1920 x 1200 (supports video modes up to 1080p) to improve image compatibility and quality. Inputs include HDB-15 (VGA) and RCA; output is a single HDMI port. The converter is compact and black, with dimensions 83 mm × 110 mm × 28 mm and operates from a 5V power input.

Advantages

The VC182 provides reliable VGA-to-HDMI conversion with built-in scaling to match different display resolutions, reducing the need for manual configuration. Its compact black enclosure and standard HDB-15/RCA input make it compatible with a variety of legacy devices, while the HDMI output supports connection to modern monitors and TVs. Simple power requirements (5V) and straightforward cabling simplify installation.

Suitable for

• Connecting desktop PCs or older laptops with VGA output to HDMI monitors or TVs
• Using VGA-equipped media players or cameras with HDMI displays
• Presentations and meeting rooms where legacy VGA sources must feed modern screens
• Home or small-office setups that require analog-to-digital video conversion

Key specifications

• Model: ATEN VC182-AT-G

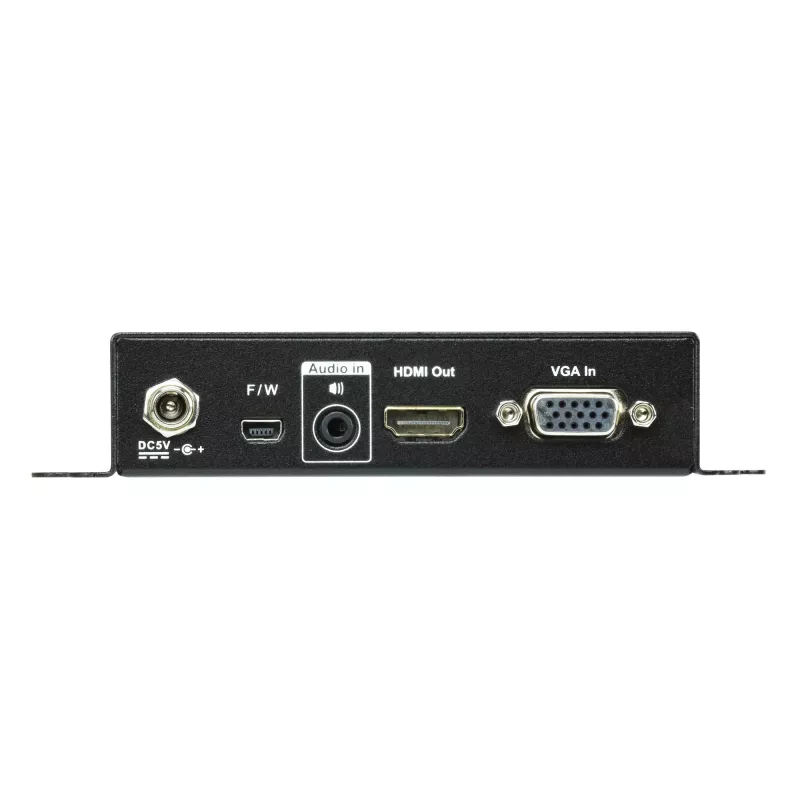

• Input interfaces: HDB-15 (VGA), RCA
• Output interface: HDMI
• Maximum supported resolution: 1920 x 1200 (supports video modes up to 1080p)
• Scaling: built-in scaler for output resolution adjustment
• Power: 5V input voltage
• Colour: Black
• Dimensions (W × D × H): 83 mm × 110 mm × 28 mm

How to use

Connect the VGA source to the VC182 using an HDB-15 cable and, if required, connect the RCA audio input. Plug an HDMI cable from the VC182 HDMI output to the display. Provide power to the unit with a compatible 5V adapter. The scaler will adjust the output resolution automatically or to the best match supported by the connected HDMI display. Verify the display’s input selection and adjust source device output if necessary.

Recommendations

For optimal image quality, use high-quality VGA and HDMI cables and ensure the display supports the target resolution. If audio is required, connect the RCA audio input or provide a separate audio path, as the converter focuses on video signal conversion.
