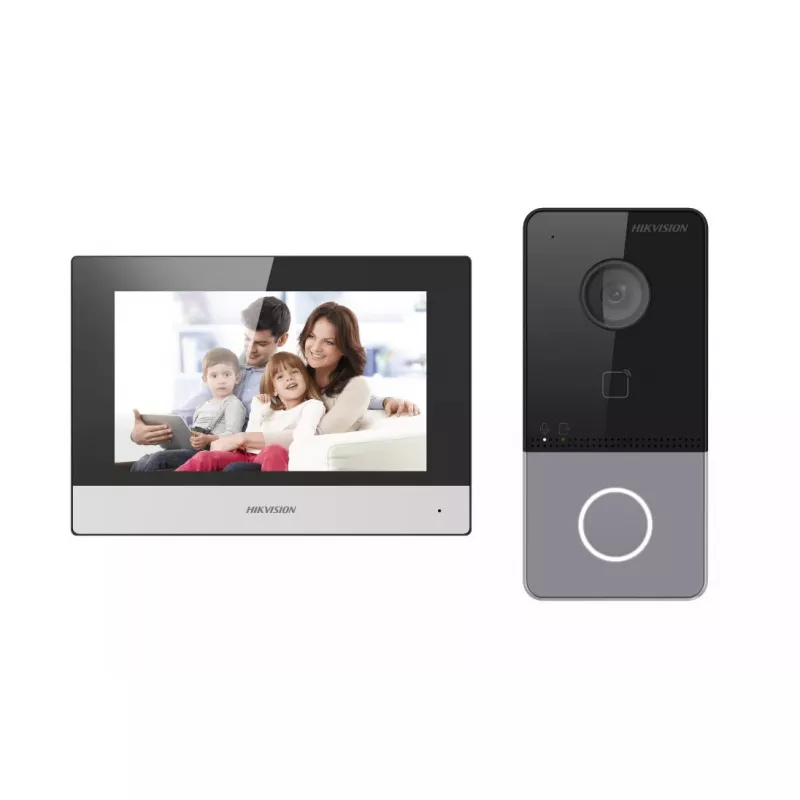

Video-ovisilmukka Hikvision DS-KIS603-P(B) 2 MP, 7" (17,8 cm) LCD, IP65, Wi‑Fi, Fast Ethernet

Hikvision DS-KIS603-P(B) is a 2 MP video intercom featuring a 7" (17.8 cm) LCD with 1024×600 resolution and support for 720p and 1080p video streams. The unit provides wired Fast Ethernet (10/100 Mbps) and wireless connectivity via 802.11b/g/n Wi‑Fi, enabling remote visitor viewing, two-way audio communication and basic access control for residential or small business entrances. Constructed with a plastic housing rated IP65, the device is designed for outdoor mounting where protection against dust and water jets is required. A combination of IR illumination and a color camera allows reliable visual identification in varied lighting conditions.

Advantages

The intercom combines a compact 7" touchscreen with high-definition video capability and flexible network interfaces, allowing installation without extensive wiring when Wi‑Fi is available. IP65 protection ensures the unit withstands outdoor conditions such as rain and dust. Integrated IR LEDs extend usability during low-light periods, and Fast Ethernet supports stable local network operation. The device’s form factor and neutral black/grey/silver finish are suitable for multiple architectural styles.

Suitable for

• Residential front doors and gated entries
• Small office or retail entrances requiring visitor screening
• Remote monitoring and communication with visitors via local network or Wi‑Fi

Key specifications

• Image sensor resolution: 2 megapixels
• Display: 7" (17.8 cm) LCD, 1024×600 pixels
• Supported video output: 720p and 1080p streams
• Network interfaces: Fast Ethernet (10/100 Mbps) and Wi‑Fi 802.11b/g/n
• Audio: two-way voice communication support
• Illumination: IR LED for low-light visibility
• Housing: plastic with IP65 dust and water protection
• Finish: black/grey/silver color scheme

How to use

Mount the intercom at the entrance height appropriate for clear identification of visitors and connect it to a local network using either the Fast Ethernet port or the onboard Wi‑Fi. Power the device according to the manufacturer’s power specifications and configure network settings through the on-screen setup menu. Use the touchscreen to view live video, answer calls and control connected door release mechanisms if integrated. For remote access, enable network and user account settings so authorized users can view and communicate with visitors from compatible client applications or web interfaces.

Recommendations

Place the unit under a small protective overhang where possible to reduce direct exposure to heavy rainfall despite the IP65 rating. For reliable remote access, connect via wired Fast Ethernet when available; if using Wi‑Fi, ensure a strong, secure wireless signal and keep firmware updated for security and compatibility.
