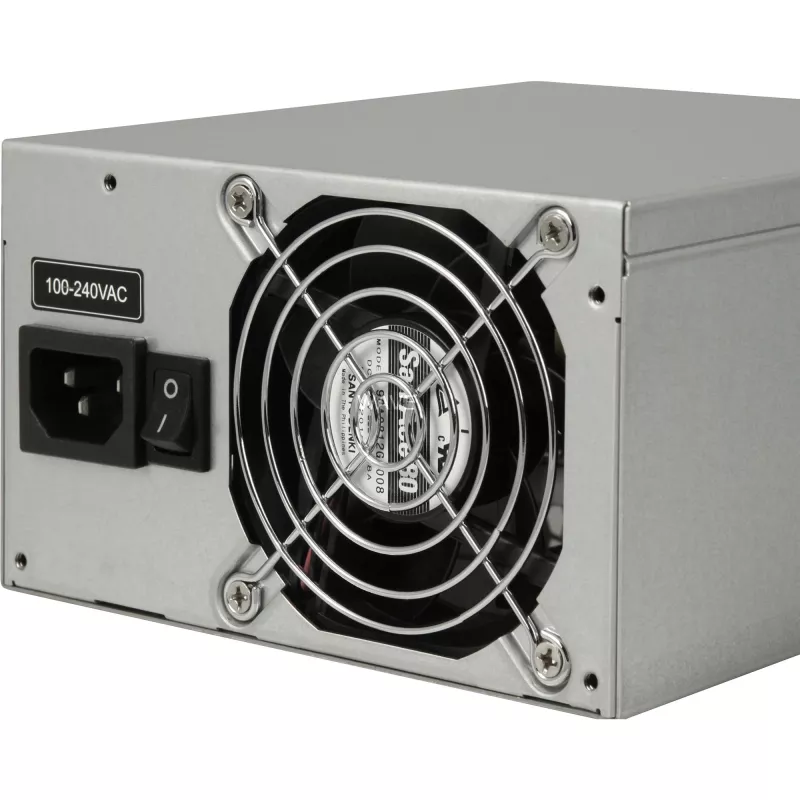

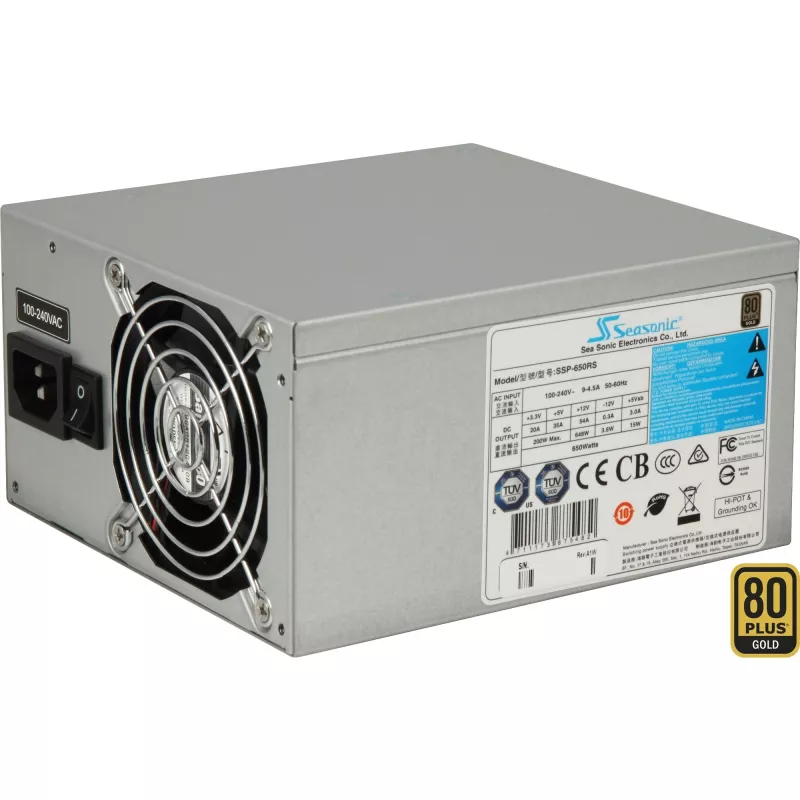

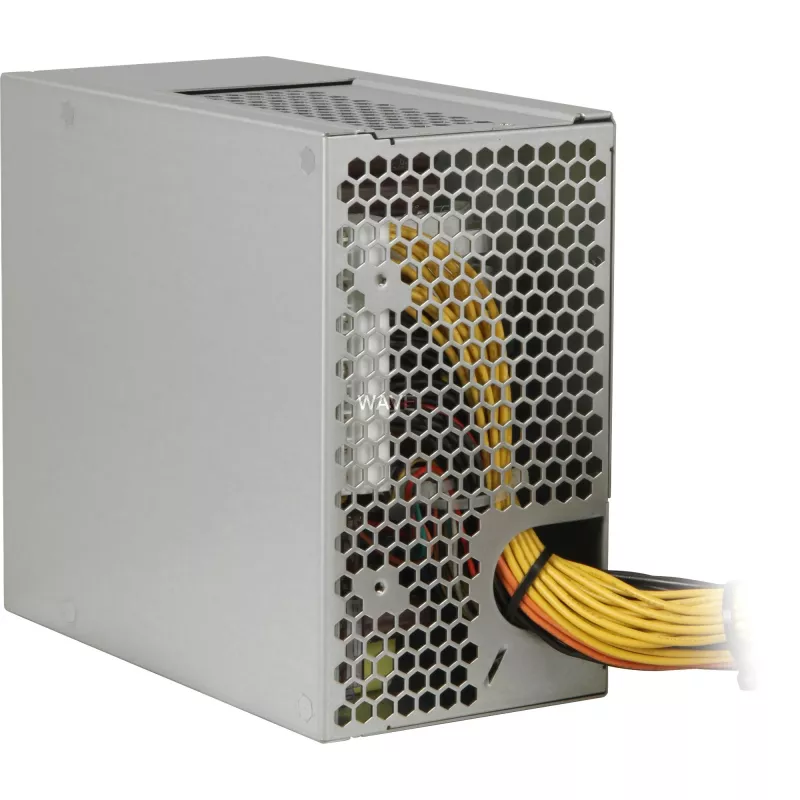

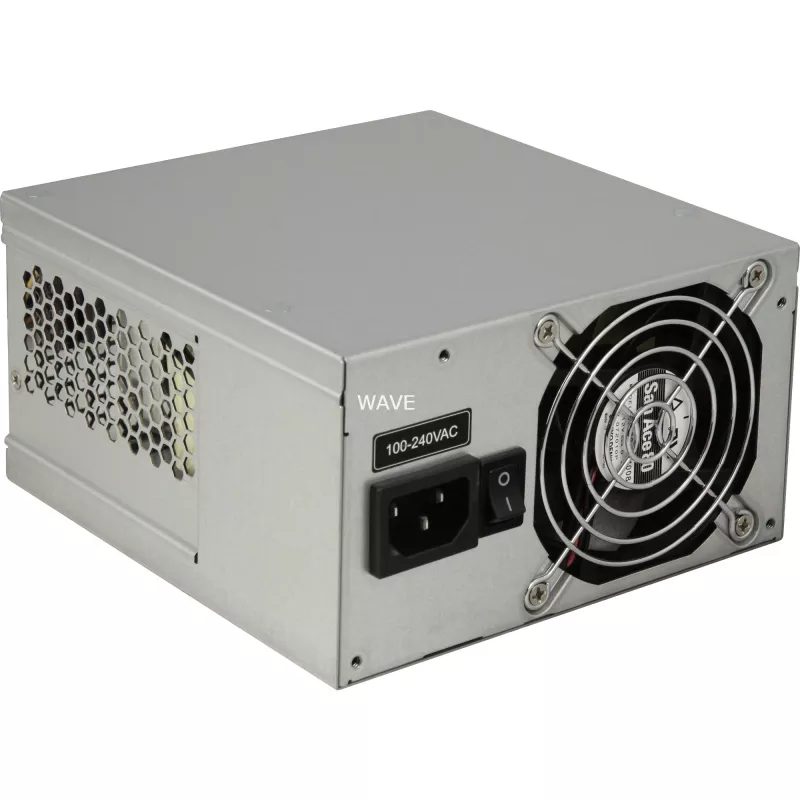

Virtalähde Seasonic SSP-650RS 650 W

The Seasonic SSP-650RS 650 W is a reliable ATX power supply unit designed for desktop PCs. It provides 650 W total power, features a 20-pin ATX motherboard connector and non-modular cabling, and supports AC input from 100 to 240 V at 50/60 Hz. The unit is 80 PLUS Gold certified for high energy efficiency and uses an 80 mm rear fan for active cooling. It is compatible with modern Intel and AMD platforms and includes protections against short circuit, overpower and overvoltage events.

Advantages

The SSP-650RS delivers efficient power conversion with an 80 PLUS Gold rating, achieving up to around 90% efficiency at typical mains and mid-load conditions. Its Active PFC circuit improves power factor and stability. A compact 80 mm rear fan provides steady cooling suitable for industrial or compact PC enclosures. The unit is PCIe and SATA cable ready and meets CE compliance.

Suitable for

• Home and office desktop PCs requiring a reliable 650 W PSU
• Systems using Intel or AMD mainstream platforms
• Compact or industrial chassis where a rear 80 mm fan is preferred
• Builds needing PCIe and SATA power connectors

Key specifications

• Total power: 650 W
• Motherboard power connector: 20-pin ATX
• 80 PLUS certification: 80 PLUS Gold
• Fan diameter: 80 mm
• Product colour: Silver
• AC input: 100–240 V, 50/60 Hz
• Cabling: non-modular

How to use

Install the SSP-650RS into a compatible ATX case following the motherboard and PSU manufacturer instructions. Connect the 20-pin ATX connector to the motherboard and attach available PCIe and SATA power connectors to your components as required. Ensure mains voltage selection (if applicable) and connect the AC power cable to a properly grounded outlet. Power on the system and verify stable operation and that connected components receive power.

Recommendations

For reliable operation, use the Seasonic SSP-650RS within its rated load and keep case airflow unobstructed. Regularly inspect cables and connections, and consult local Seasonic representatives for availability or regional compliance information.
