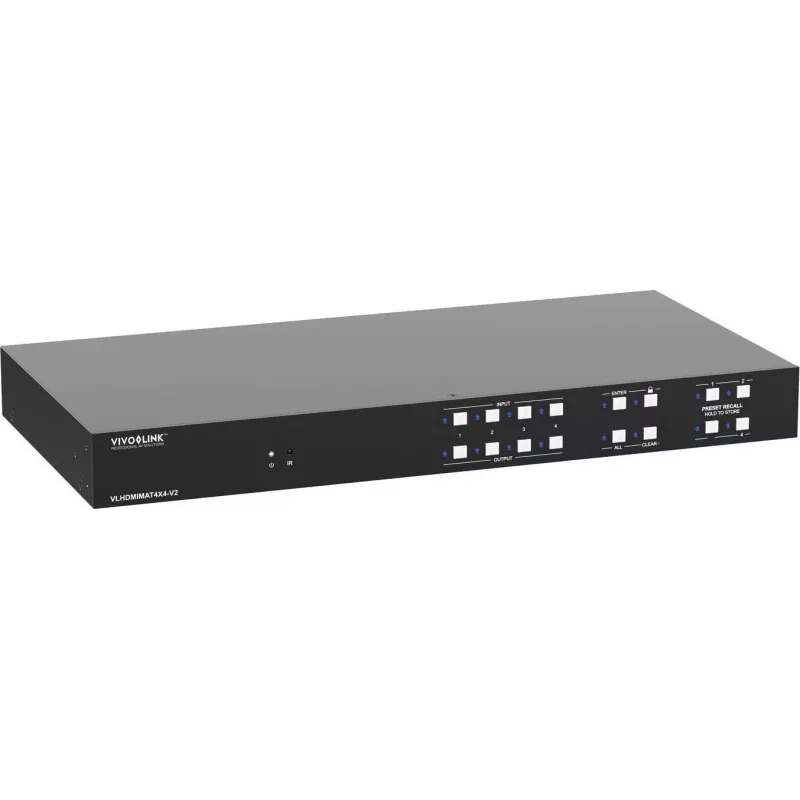

VivoLink HDMI 2.0 4x4 matriisikytkin VLHDMIMAT4X4-V2 4K UHD rack-asennus RS232/LAN

In a corporate boardroom or a multi-zone sports bar, the VivoLink VLHDMIMAT4X4-V2 routes any of four HDMI sources to any of four displays simultaneously, with independent switching per output. This 1U rack-mountable matrix switch delivers 4K UHD at 60Hz with 4:4:4 chroma sampling, ensuring crisp text and vibrant video across all connected screens. Control is flexible via front-panel buttons, IR remote, RS-232, or TCP/IP over LAN, making it ideal for professional AV installations.

Key specifications

• HDMI 2.0 and HDCP 2.2/1.4 compliant
• 4 HDMI inputs and 4 HDMI outputs (Type A)
• Supports resolutions up to 4K UHD (3840x2160) @ 60Hz 4:4:4
• 18 Gbps video bandwidth
• HDR10 and HLG support
• Audio formats: LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio
• Advanced EDID management
• Control: front panel, IR remote, RS-232, TCP/IP (LAN)
• Rack mountable (1U)
• Power supply: DC 12V/2A

Why choose it

This matrix switch combines high-bandwidth 4K performance with robust control options, making it a reliable backbone for professional AV distribution. Its metal housing and rack-mount design ensure durability in fixed installations, while CEC bypass simplifies integration with display control systems.

Ideal use cases

• Corporate meeting rooms and conference centers
• Digital signage in retail or hospitality
• Sports bars and entertainment venues
• Educational facilities with multiple displays
• Control rooms requiring multi-source routing

Good to know

The unit supports color depths up to 12-bit and color spaces including RGB and YCbCr 4:4:4, 4:2:2, and 4:2:0. Operating temperature range is 0°C to 45°C. LED indicators provide status at a glance. The package includes the matrix switch, power supply, IR remote, rack-mount ears, and user manual.
