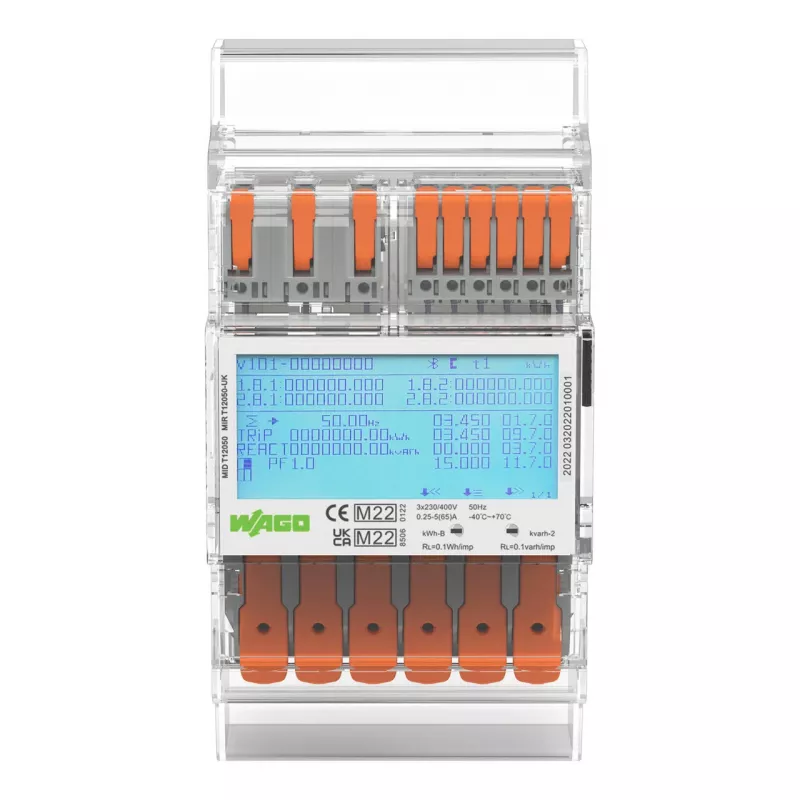

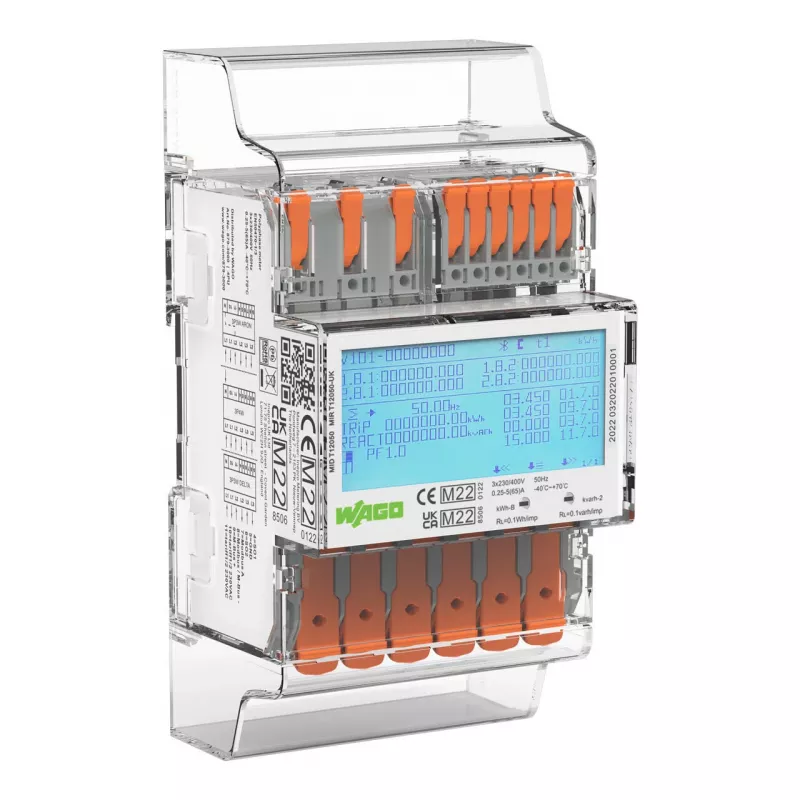

WAGO 879-3000 4PU kolmivaiheinen energiamittari digitaalinen 65 A MID-yhteensopiva 1 kpl

The WAGO 879-3000 is a digital three-phase energy meter designed for direct measurement of active energy in residential and commercial applications. With a maximum current of 65 A and MID compliance (Module B + D), it ensures accurate billing-grade metering. The device features a clear LCD display with backlight, S0 pulse output for remote reading, and easy DIN rail mounting. Its compact 4-module width saves space in distribution boards.

Advantages

MID certified for legal metrology; high accuracy Class B; direct measurement up to 65 A; integrated backlight for easy reading; S0 pulse interface for energy management systems.

Suitable for

• Sub-metering in apartment buildings
• Commercial energy monitoring
• Industrial load management
• Renewable energy systems

Key specifications

• Meter Type: 3-Phase Energy Meter
• Measurement: Direct
• Max Current: 65 A
• Nominal Voltage: 3 x 230/400 V AC
• Frequency: 50/60 Hz
• Accuracy Class: B (EN 50470-1/-3)
• MID Compliant: Yes
• Display: LCD, 7-digit (6+1)
• Mounting: DIN Rail (EN 60715)
• Width: 4 Modules (72 mm)
• Communication: S0 Pulse Output
• Energy Measurement: Active Energy (kWh)
• Tariff: Single Tariff
• Backlight: Yes
• Protection Front: IP51
• Protection Terminals: IP20
• Operating Temperature: -25 to +55 °C
• Terminals: Screw, up to 16 mm² solid / 10 mm² fine-stranded
• Starting Current: 20 mA
• Power Consumption: < 2 W / 10 VA per phase

Recommendations

For optimal performance, use with a suitable energy management system. Ensure proper installation by a qualified electrician. Verify local regulations for MID meter usage.
