Wirewin 19 tuuman seinäkotelo, yksiosainen, Pro 3. sukupolvi, Flat-Pack, 600x600 mm, vaaleanharmaa (WCAB PS3 600X600X12U FP)

This 12U wall-mounted cabinet supports up to 60 kg of equipment in a compact 600x600mm footprint, with a tempered glass front door and removable lockable side panels for secure access.

Overview

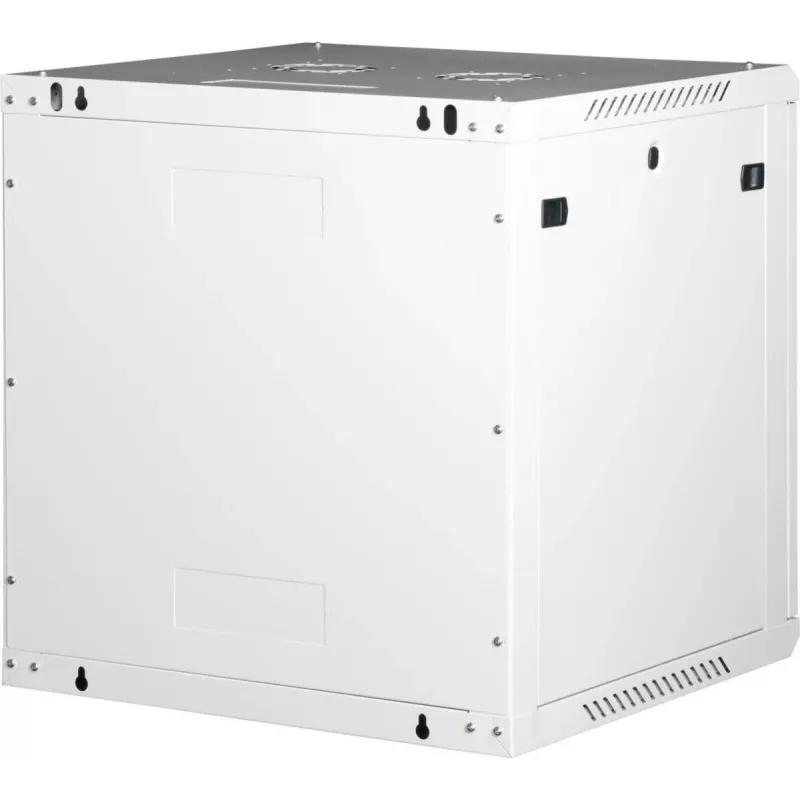

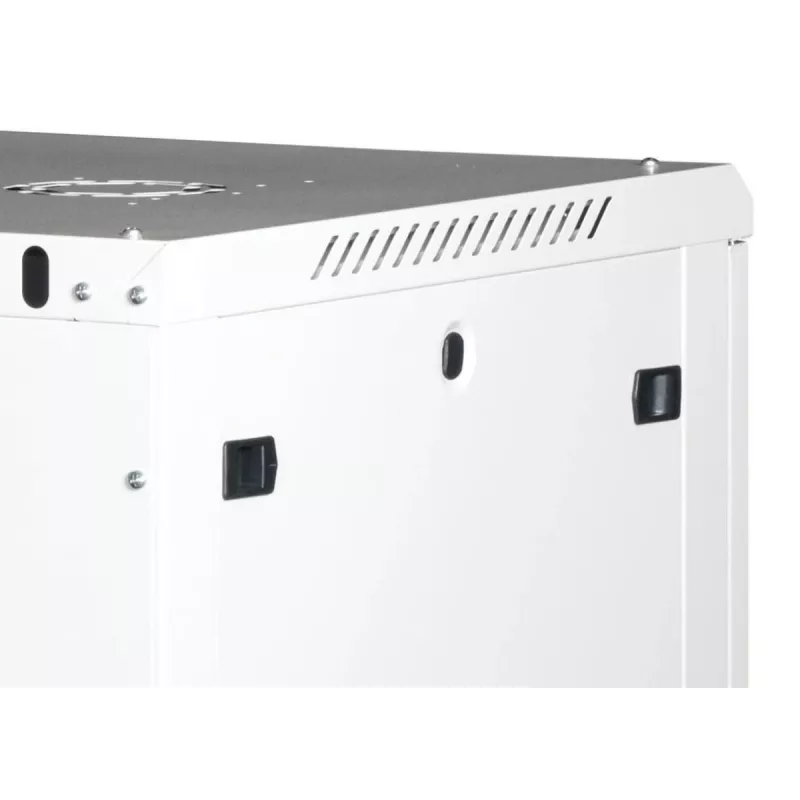

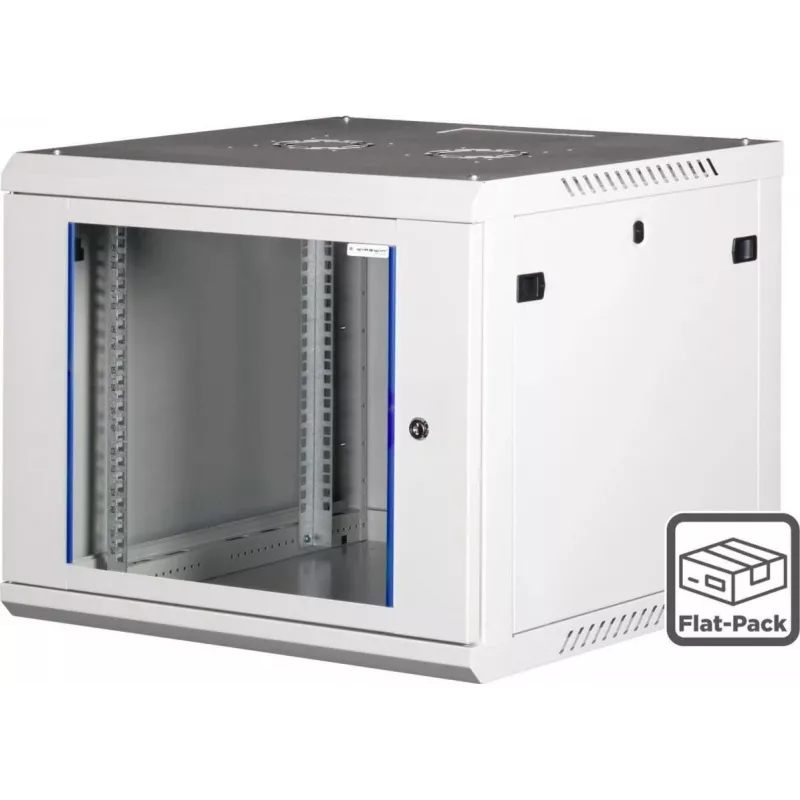

The Wirewin Pro 3rd Generation wall-mounted rack cabinet is a one-piece, flat-pack enclosure designed for 19-inch equipment. It features a welded steel frame, powder-coated in light grey (RAL 7035), and provides adjustable front and rear mounting rails. Passive ventilation is achieved through perforated top and bottom panels, with cable entry via brush strips on both top and bottom.

What stands out

• 12U capacity with 600x600mm external dimensions
• Load capacity of 60 kg
• Tempered glass front door with lock

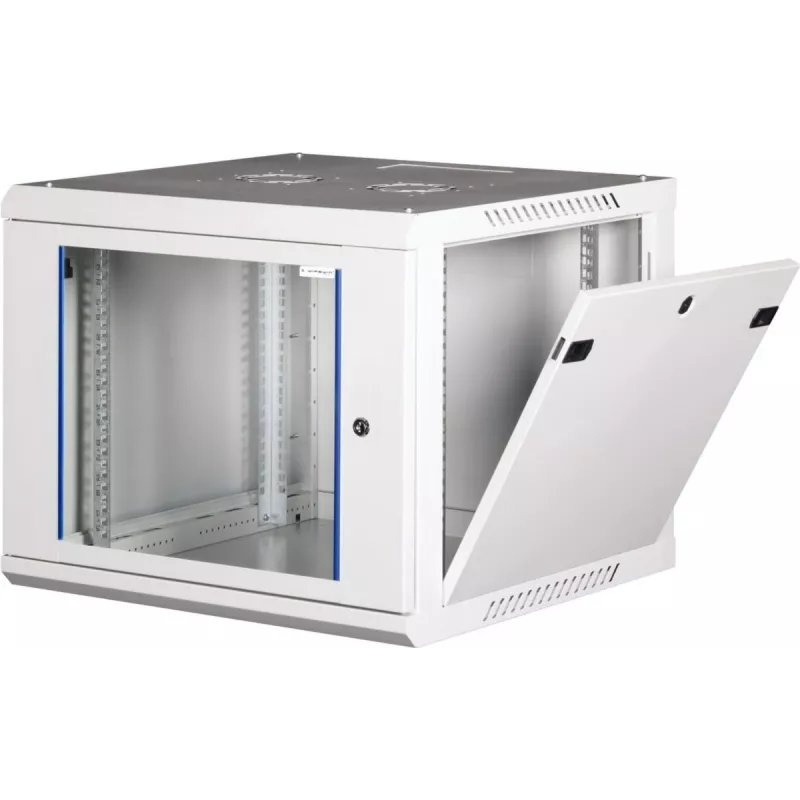

• Removable, lockable side panels
• Flat-pack design for efficient shipping

Technical details

• Rack units: 12U
• External width: 600 mm
• External depth: 600 mm
• External height: 635 mm
• Usable internal depth: approx. 550 mm
• Material: steel
• Colour: light grey (RAL 7035)
• Mounting standard: 19-inch
• Protection class: IP20
• Finish: powder-coated
• Mounting rails: adjustable 19" profile rails (front and rear)

Our verdict

A solid, secure wall-mount cabinet for small network installations, with a practical flat-pack design that simplifies transport and storage.
