Zebra CS60-HC käsikäyttöinen viivakoodinlukija 1D/2D LED valkoinen

The Zebra CS60-HC handheld bar code reader is a healthcare-focused scanner that supports both 1D and 2D barcodes. Designed for clinical environments, it offers a convertible design that switches between corded and cordless operation and between handheld and hands-free use. The housing is disinfectant-ready with IP65 protection and a crevice-free surface to reduce places where bacteria can hide, and the compact white device is lightweight for extended clinician use.

Advantages

The CS60-HC converts easily between corded and cordless modes and between handheld and hands-free configurations, providing flexibility for different clinical workflows. It includes wireless connectivity (Bluetooth), long battery life with an 18-hour runtime, Qi inductive charging, NFC tap-to-pair and Virtual Tether anti-loss features for clinical mobility. The unit’s sealed, disinfectant-ready housing and safe LED aimer support use across patient care areas while helping limit contamination risks.

Suitable for

• Point-of-care scanning at bedside and nursing rounds
• Pharmacy counters and medication verification
• Laboratory specimen tracking and lab stations
• Maternity, NICU and mother–baby units

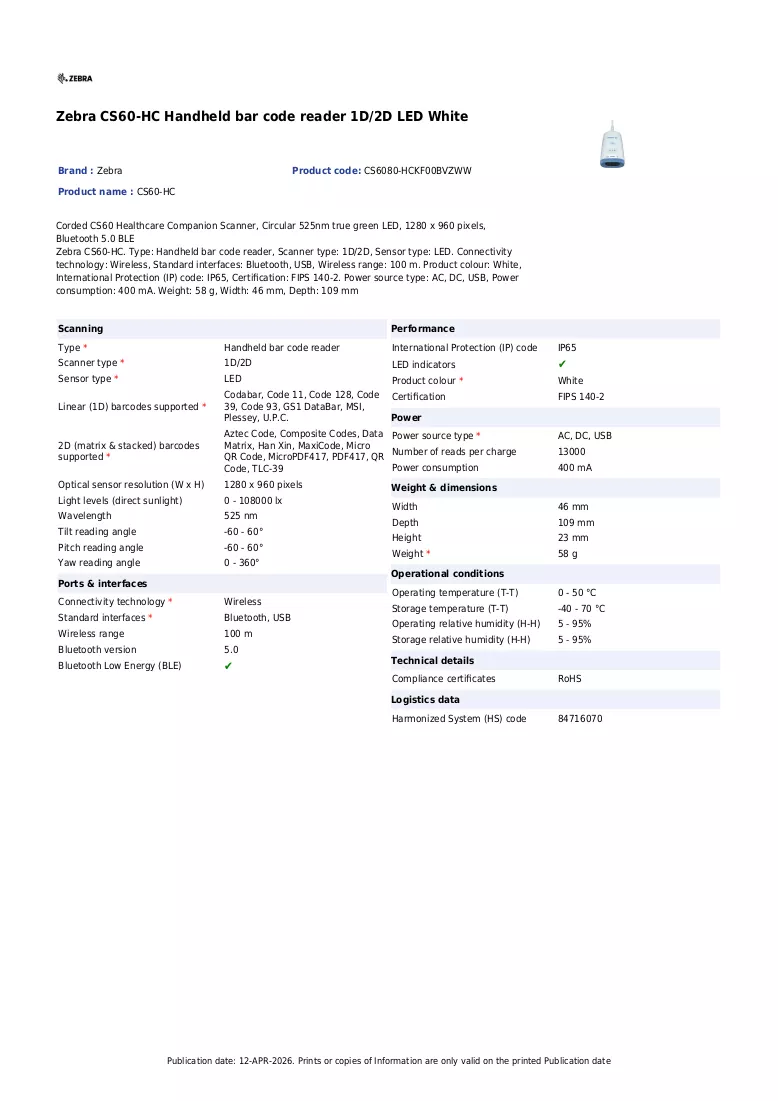

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Connectivity: Bluetooth and USB (wireless range up to 100 m)
• Battery runtime: up to 18 hours (cordless mode)
• Ingress protection: IP65 (disinfectant-ready)
• Weight: 0.058 kg
• Supported 1D codes: Code 128, U.P.C., Plessey, MSI, GS1 DataBar, Code 93, Code 39, Code 11, Codabar
• Supported 2D codes: QR Code, Data Matrix, PDF417, Micro QR, MicroPDF417, Aztec, MaxiCode, TLC-39, Composite Codes, Han Xin
• Colour: White

How to use

For handheld scanning, hold the Zebra CS60-HC and aim the LED sensor at the barcode until a successful read is indicated. To use hands-free, place the scanner in an appropriate stand or mount and present items to the scan window. Switch between corded and cordless modes by attaching or removing the USB cable and, when cordless, use Bluetooth pairing or NFC tap-to-pair for quick connection. Use the Qi charging base or the specified charger to recharge the battery as needed.

Recommendations

The scanner housing is disinfectant-ready; follow your facility’s approved cleaning agents and procedures to disinfect the device. Avoid abrasive cleaners and do not immerse the device. For reliable wireless performance, keep firmware updated and follow recommended pairing steps for Bluetooth and NFC.
