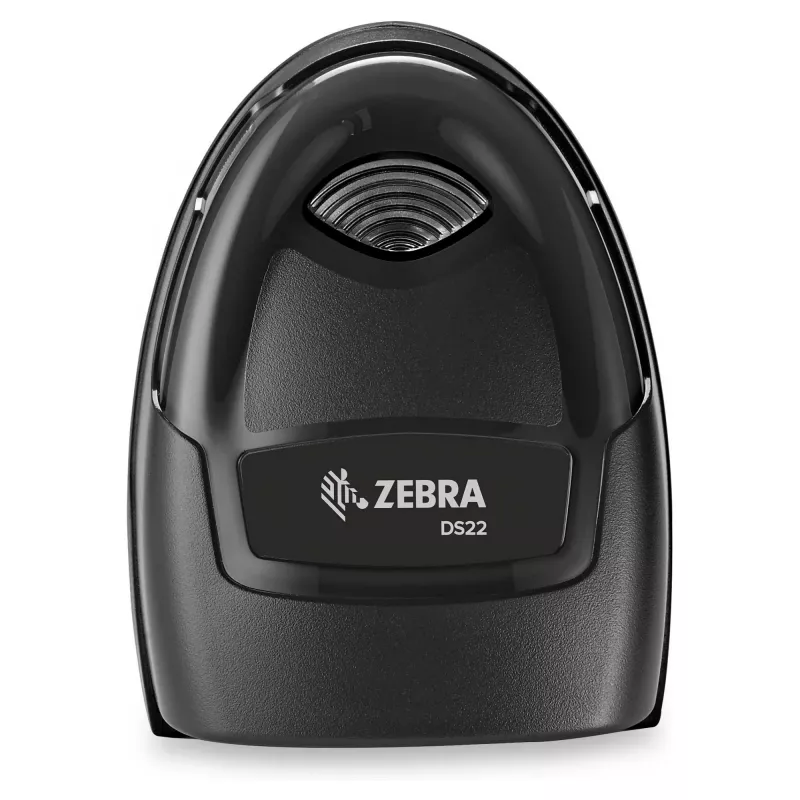

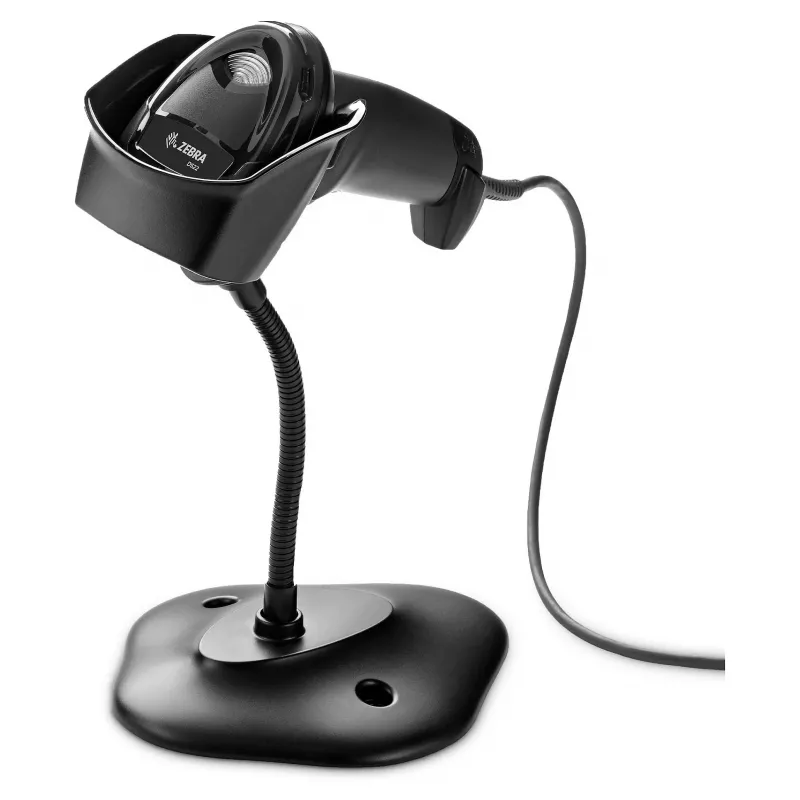

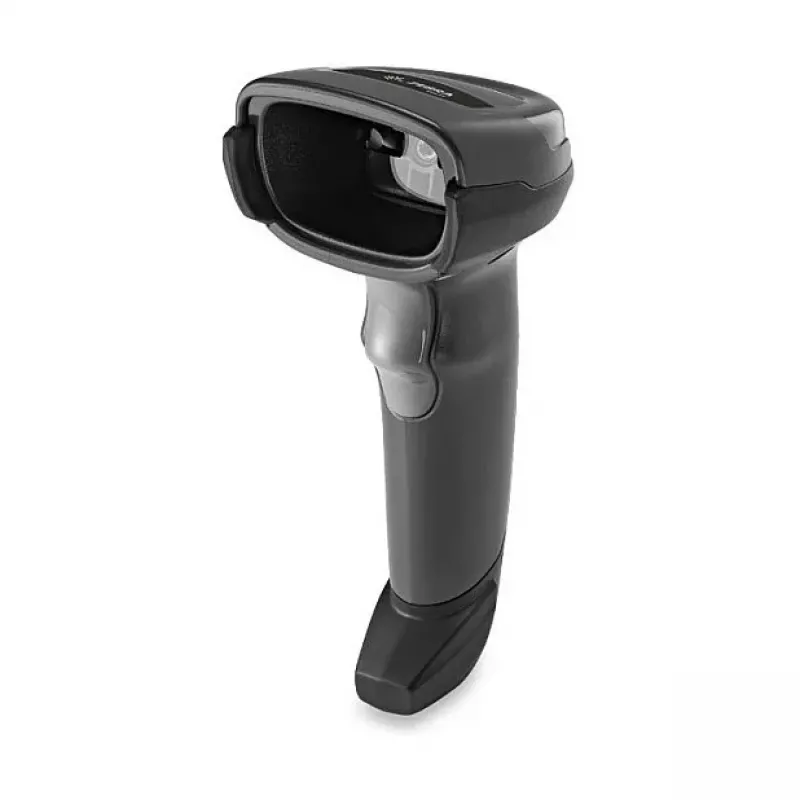

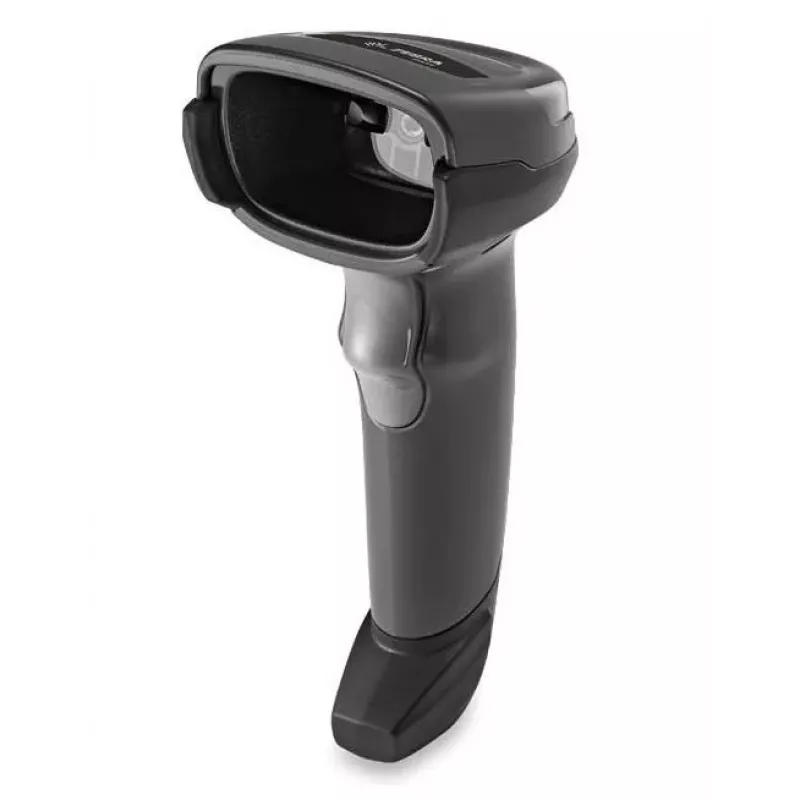

Zebra DS2208 käsikäyttöinen 1D/2D LED-viivakoodilukija musta USB

Slow, unreliable barcode scanning can bottleneck checkout lines, warehouse operations, and inventory management. The Zebra DS2208 Handheld Barcode Scanner eliminates those frustrations with fast, accurate 1D and 2D barcode capture in a lightweight, ergonomic design. Its advanced imaging technology reads even damaged, poorly printed, or mobile barcodes, making it a versatile tool for retail, hospitality, healthcare, and light industrial environments.

Who is it for

This scanner is ideal for businesses that need a dependable, everyday scanning solution. Whether you're processing point-of-sale transactions, tracking inventory, or managing patient records, the DS2208 delivers consistent performance. It's especially suited for small to medium-sized businesses looking for a cost-effective scanner without compromising on quality or durability.

Main features

• 1D and 2D barcode scanning with PRZM Intelligent Imaging technology
• Wired USB connectivity for simple plug-and-play setup
• High-resolution 640 x 480 pixel image sensor for precise capture
• Durable design withstands multiple drops from 1.5 m (5 ft) to concrete
• IP42 rating protects against dust and light moisture
• Bright LED aimer and illumination for accurate targeting in any lighting
• Supports a wide range of symbologies including UPC/EAN, Code 39, Code 128, QR Code, Data Matrix, and PDF417
• Direct decode indicator, good decode LEDs, and rear view LEDs for instant feedback
• Host-powered via USB – no external power supply needed

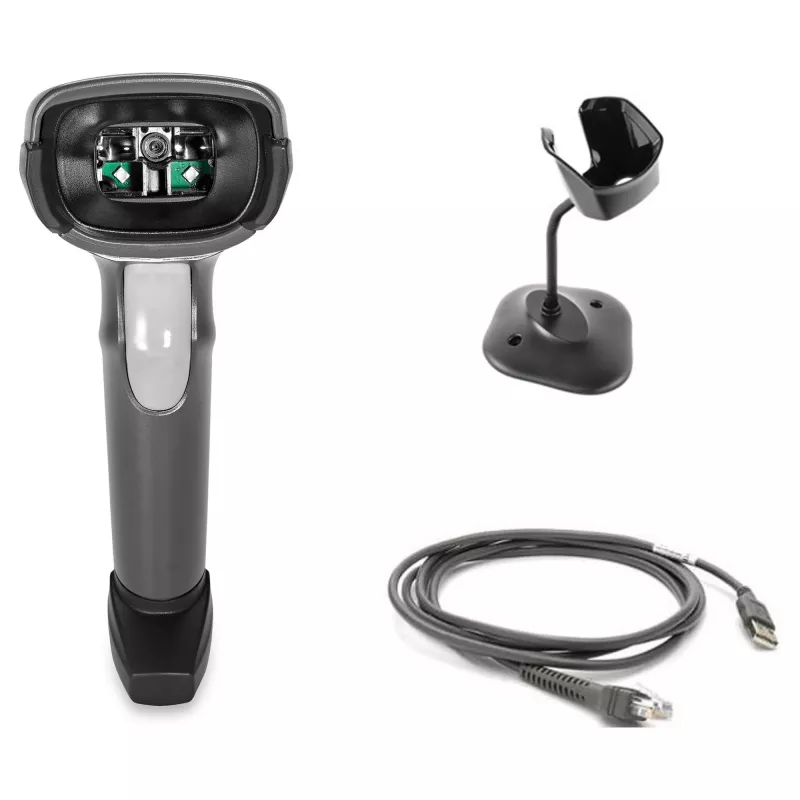

• Includes 2.1 m (7 ft) USB cable for flexible placement

Specifications

• Scanner type: 1D/2D area imager
• Connectivity technology: Wired
• Host interface: USB
• Light source: Aiming pattern – linear 624 nm amber LED; illumination – 645 nm super red LEDs
• Scan angle: Horizontal 46°, vertical 29.5°
• Minimum print contrast: 25% minimum reflective difference
• Motion tolerance: Up to 13 cm/sec (5 in./sec) for 13 mil UPC
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating humidity: 5% to 95% non-condensing
• Drop specification: Withstands multiple drops from 1.5 m (5.0 ft) to concrete
• IP rating: IP42
• Colour: Black
• Cable length: 2.1 m (7 ft)
• Supported barcode symbologies: UPC/EAN, Code 39, Code 128, QR Code, Data Matrix, PDF417, and more
• Power source: Host power (USB)
• Image sensor: 640 x 480 pixels
• Decoding capability: 1D, 2D, PDF417
• Technology: PRZM Intelligent Imaging

Tips

For best performance, ensure the scanner is connected to a powered USB port or a powered USB hub if using a long cable run. Clean the scanner window regularly with a soft, lint-free cloth to maintain optimal reading accuracy. When scanning highly reflective or curved barcodes, adjust the angle slightly to avoid glare.
