FS40 KIINTEÄ TEOLLINEN AUTOMAATTITARKENNUS SKANNAUS VAKIOETÄISYYS 2.3 MP STD 2D BD ETH

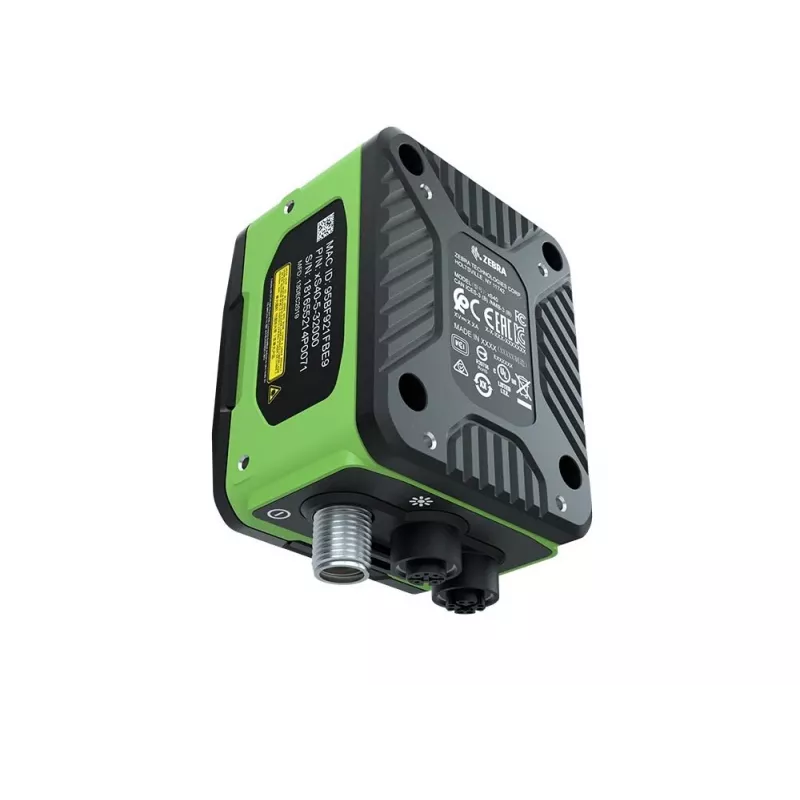

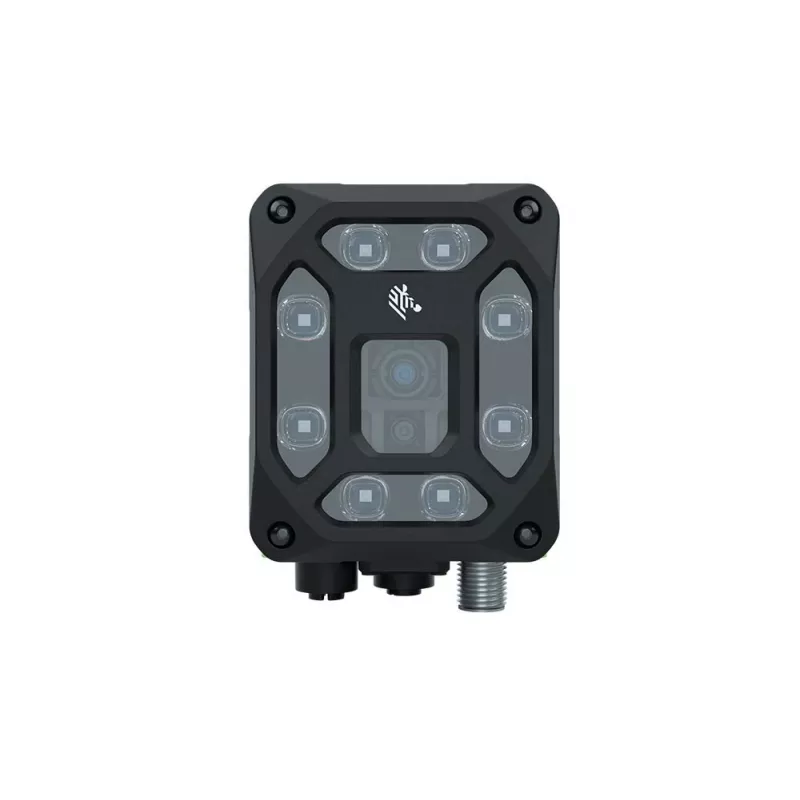

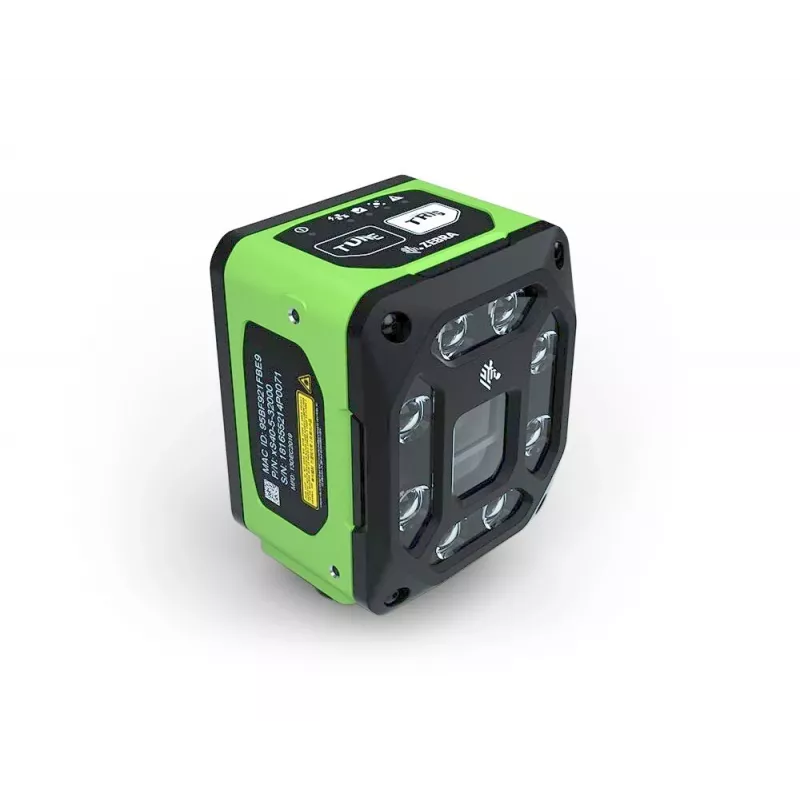

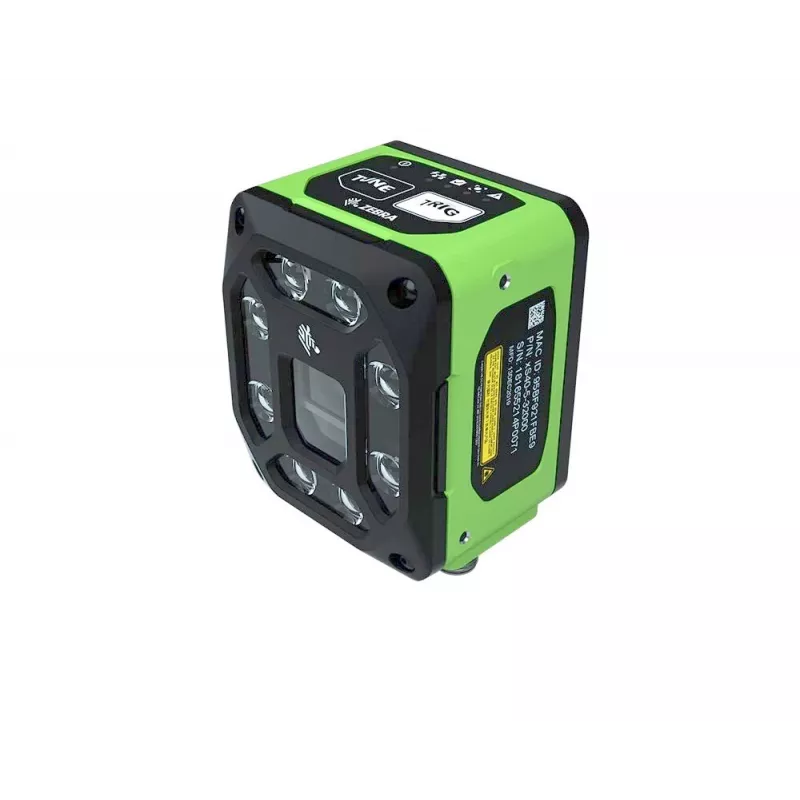

The Zebra FS40 is a fixed industrial barcode scanner engineered for high-speed, high-accuracy decoding in demanding manufacturing and logistics environments. Its standout capability is the 2.3 megapixel global shutter CMOS sensor paired with liquid lens auto-focus, delivering crisp, reliable reads on 1D and 2D codes even at variable distances or on fast-moving lines.

Advantages

Auto-focus technology eliminates manual adjustments and ensures consistent performance across changing product heights and code positions. The global shutter sensor prevents motion blur, making it ideal for conveyor and robotic applications. With an IP67-rated housing, the FS40 withstands dust, moisture, and washdowns, while the multi-core processor accelerates decoding for maximum throughput. Gigabit Ethernet and USB connectivity provide flexible integration into industrial networks.

Suitable for

• Automated inspection and sorting systems
• High-speed packaging lines
• Robotic picking and assembly cells
• Track-and-trace in pharmaceutical and electronics manufacturing
• Logistics hubs requiring rugged, fixed-mount scanning

Key specifications

• Sensor: 2.3 MP global shutter CMOS (1920 x 1200)
• Focus: Auto-focus with liquid lens technology
• Scanning: 1D and 2D barcode symbologies
• Connectivity: Gigabit Ethernet, USB
• Illumination: Integrated high-power LED
• IP rating: IP67
• Operating temperature: 0°C to 45°C
• Power supply: 24V DC
• Processor: Multi-core
• Mounting: Fixed industrial mount

Recommendations

For reliable, unattended scanning in harsh industrial settings, the Zebra FS40 offers the speed, durability, and intelligent auto-focus needed to keep production flowing without interruption.
