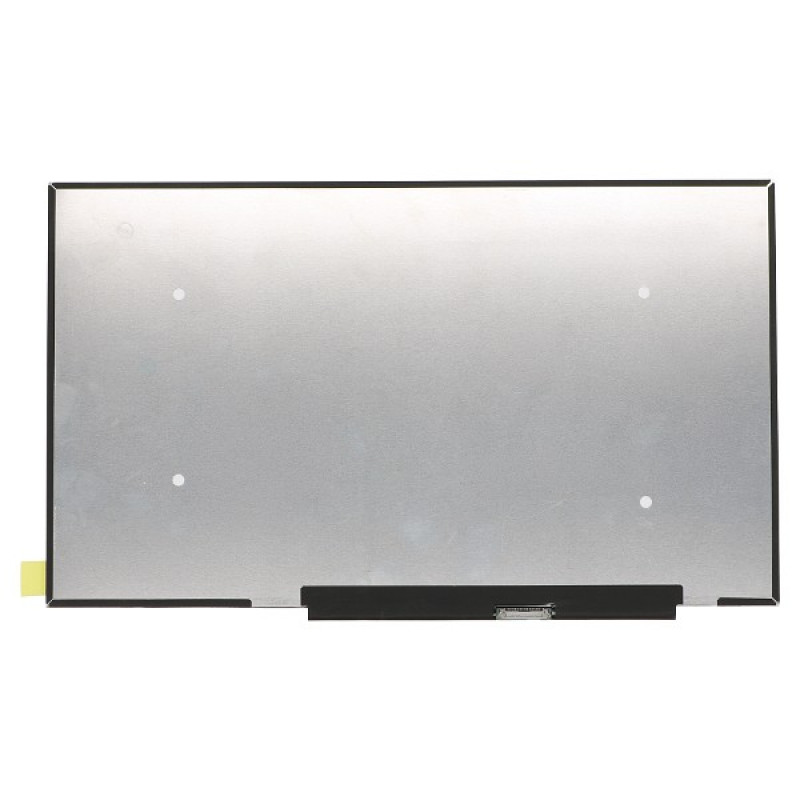

2-power 14,0" 1920x1080 FHD IPS (2P-B140HAN06.B 1A)

This 14.0-inch panel stands apart from generic replacements by combining a crisp Full HD IPS display with a 30-pin eDP interface, ensuring vivid colours and wide viewing angles without the washed-out look of TN alternatives. Built around the trusted B140HAN06.B specification, it delivers consistent brightness and a matte finish that keeps reflections at bay in bright rooms.

Highlights

• 14.0-inch IPS panel with 1920 x 1080 Full HD resolution
• Wide 85° viewing angles in all directions for shared viewing
• Matte anti-glare surface reduces eyestrain and fingerprints
• Standard 30-pin eDP connector for broad laptop compatibility
• LED backlight with 250 nits brightness and 700:1 contrast
• 60 Hz refresh rate and 25 ms response time for smooth visuals

In daily use

Whether you are editing documents, streaming video, or working on detailed graphics, the IPS technology keeps colours accurate from edge to edge. The 45% NTSC colour gamut is well-suited for everyday productivity and multimedia, while the 157 PPI pixel density ensures sharp text and icons. With a typical power draw of just 3–5 W, it helps preserve battery life compared to older CCFL panels.

Full specifications

• Screen size: 14.0 inches (35.6 cm diagonal)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching) TFT Active Matrix LCD
• Aspect ratio: 16:9 widescreen
• Backlight: LED
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 250 nits (cd/m²)
• Contrast ratio: 700:1
• Colour gamut: 45% NTSC
• Viewing angles: 85° left / 85° right / 85° up / 85° down
• Response time: 25 ms
• Surface finish: Matte (anti-glare)
• Touchscreen: No
• Frame/bezel: Not included (panel only)
• Condition: New
• Power consumption: 3–5 W typical
• Pixel density: ~157 PPI

Final note

Designed for universal compatibility with laptops that use a 30-pin eDP 14.0" FHD IPS panel, this screen is an ideal upgrade or replacement for damaged or low-resolution displays. Always verify your laptop's exact panel model and connector before ordering.
