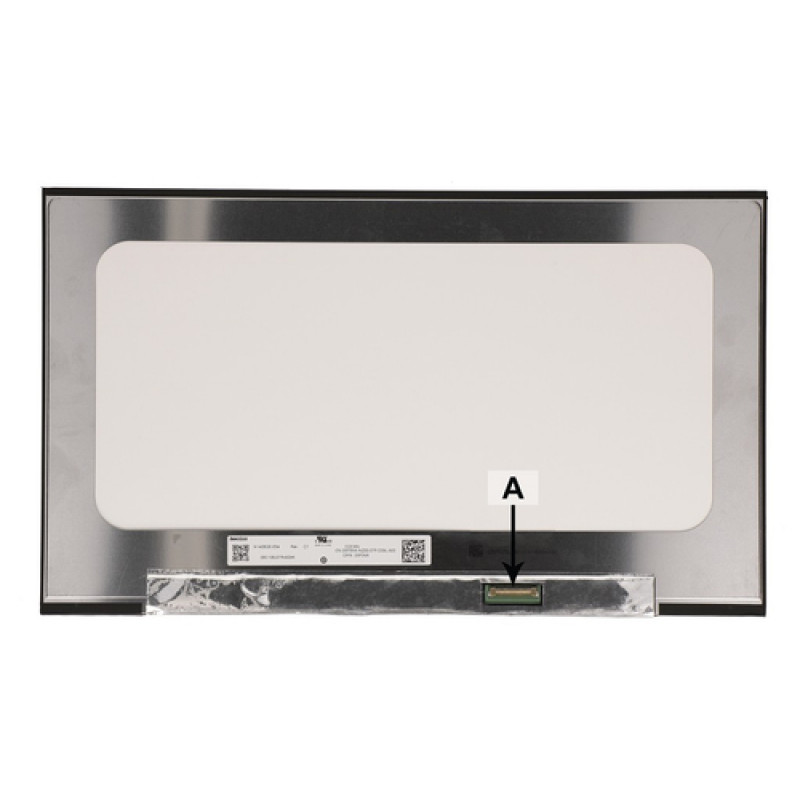

2-power 14.0 HD LCD EDP AG TN mattapinta (2P-L99388-J91)

A 14.0-inch HD LED-backlit LCD panel with a TN matrix and matte anti-glare finish, delivering crisp visuals and reduced reflections for everyday laptop use. Its eDP 30-pin interface ensures straightforward integration with compatible notebooks, while the 1366x768 resolution offers a balanced mix of clarity and power efficiency.

Advantages

The twisted nematic panel provides quick response times and low power draw, making it a practical choice for mobile computing. The matte surface diffuses ambient light, minimizing glare in bright environments. With a 60Hz refresh rate and 200-220 cd/m² brightness, it handles standard office tasks, web browsing, and video playback comfortably.

Suitable for

• Replacing a damaged or faulty 14.0-inch HD laptop display
• Users who need a cost-effective, energy-efficient screen for daily productivity
• Environments with overhead lighting or windows where glare is a concern
• DIY repair enthusiasts and professional technicians seeking a universal 30-pin eDP panel

Key specifications

• Diagonal: 14.0 inches
• Resolution: HD (1366x768)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)
• Interface: eDP 30-pin
• Refresh rate: 60Hz
• Brightness: 200-220 cd/m²
• Contrast ratio: 300:1 - 500:1
• Response time: 8-16ms
• Color gamut: approx. 45% NTSC
• Viewing angles: typical TN (45/45/20/40 degrees H/V)
• Touchscreen: No
• Mounting brackets: not included (bare panel)

Recommendations

Before ordering, verify that your laptop accepts a 14.0-inch HD eDP 30-pin TN matte panel. This bare panel does not include mounting brackets or cables; reuse the original hardware from your device. For best results, professional installation is advised.
