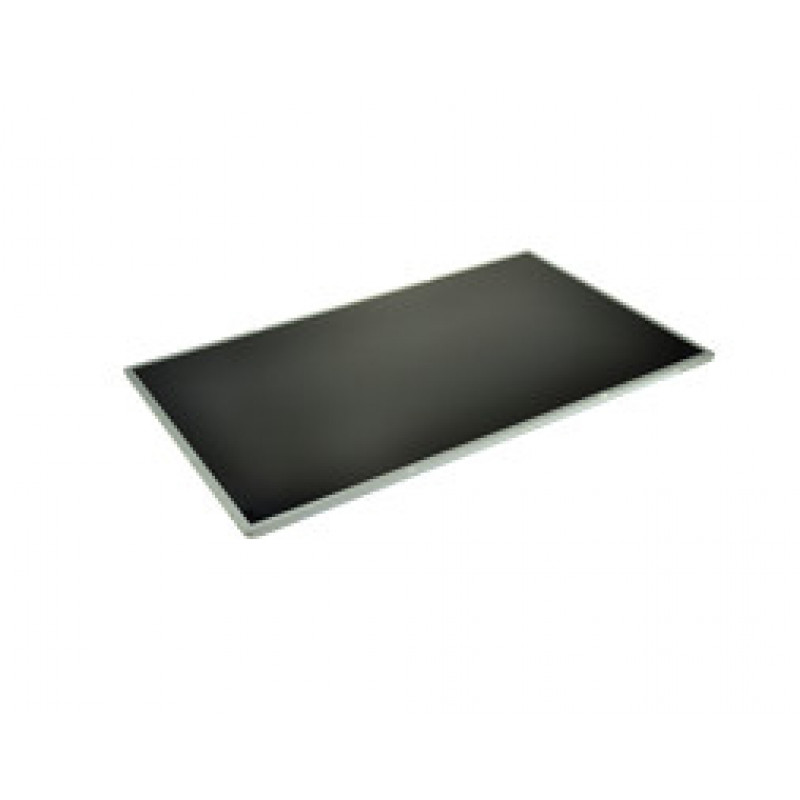

2-power 14,0" WUXGA 1920x1200 5MM EDP IPS (2P-07C28K)

Replacement laptop display panel offering a crisp 1920x1200 WUXGA resolution on a 14.0-inch IPS screen with a slim 5 mm profile. The LED backlight and 30-pin eDP interface deliver bright, accurate visuals with wide viewing angles, making it an ideal upgrade or repair part for compatible notebooks.

Advantages

IPS technology provides consistent colour and clarity from nearly any angle, while the 16:10 aspect ratio offers extra vertical space for productivity. The anti-glare matte surface reduces reflections, and the ultra-slim design fits thin laptop chassis. With a typical brightness of 300 cd/m² and a 1000:1 contrast ratio, images remain vibrant in various lighting conditions.

Suitable for

• Laptop repair technicians replacing damaged or faulty 14.0" WUXGA screens
• DIY enthusiasts upgrading to a higher-resolution IPS panel
• System integrators building portable workstations requiring 16:10 displays
• Users needing a reliable bare panel without touch functionality

Key specifications

• 14.0-inch IPS panel with 1920x1200 (WUXGA) resolution
• eDP 30-pin connector, 5 mm ultra-slim thickness
• LED backlight, 300 cd/m² brightness, 1000:1 contrast ratio
• 170° horizontal and vertical viewing angles
• 45% NTSC colour gamut, 30 ms response time
• Matte anti-glare finish, 60 Hz refresh rate
• Typical power consumption: 4.0 W
• Bare panel – bezel and mounting brackets not included

Recommendations

Verify your laptop's original panel connector type (30-pin eDP), mounting style, and physical dimensions before ordering. This panel is compatible with many 14.0" WUXGA laptops using slim eDP displays; consult your device's service manual or existing screen model for exact fitment.
