2-power 2P-B116XTN02.5 - 29,5 cm (11,6") - WXGA

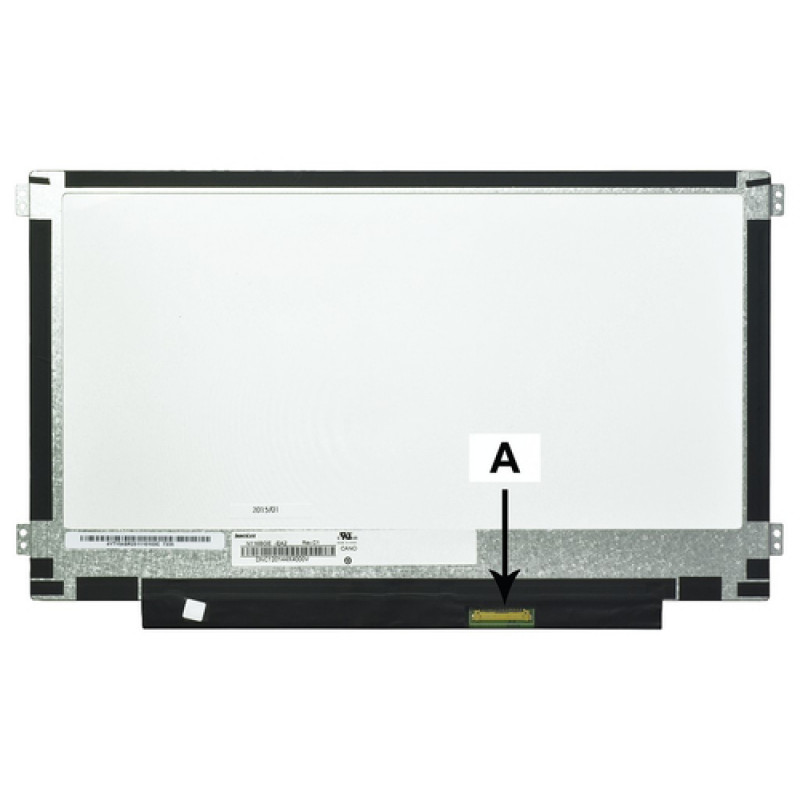

Replace a cracked or dim laptop screen with this 11.6-inch WXGA panel, built for everyday notebooks and education-focused devices. The 2-POWER 2P-B116XTN02.5 delivers sharp 1366 x 768 resolution on a glossy TN surface with LED backlighting, making text and images clear for web browsing, documents, and video calls. The 30-pin eDP connector sits on the bottom right when viewed from the back, matching many common laptop configurations.

Key specifications

• Screen size: 11.6 inches (29.5 cm)
• Resolution: 1366 x 768 (WXGA)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Interface: 30-pin eDP
• Surface finish: Glossy
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 400:1 (typical)
• Viewing angles: 45/45/15/35 degrees (L/R/U/D)
• Color gamut: 45% NTSC
• Response time: 8 ms
• Power consumption: 2.5 W (typical)
• Operating temperature: 0 to 50 °C

Why choose it

This panel is a direct replacement for many 11.6-inch laptops, offering a straightforward swap without driver changes. The LED backlight provides consistent brightness and low power draw, while the glossy coating enhances perceived contrast for indoor use. The 30-pin eDP interface is widely used in modern ultraportables, ensuring compatibility with a broad range of systems.

Ideal use cases

• Repairing a broken or flickering laptop screen
• Upgrading a dim or low-resolution panel
• Refurbishing used notebooks for resale
• DIY projects requiring a compact display

Good to know

Before ordering, verify the original panel's size, resolution, connector type, and mounting holes. The 2P-B116XTN02.5 is compatible with laptops that use a 30-pin eDP connector and a bottom-right cable orientation. The glossy TN panel is best suited for indoor environments; viewing angles are narrower than IPS, so it is ideal for single-user tasks. Installation requires basic tools and care to avoid damaging the new panel.
