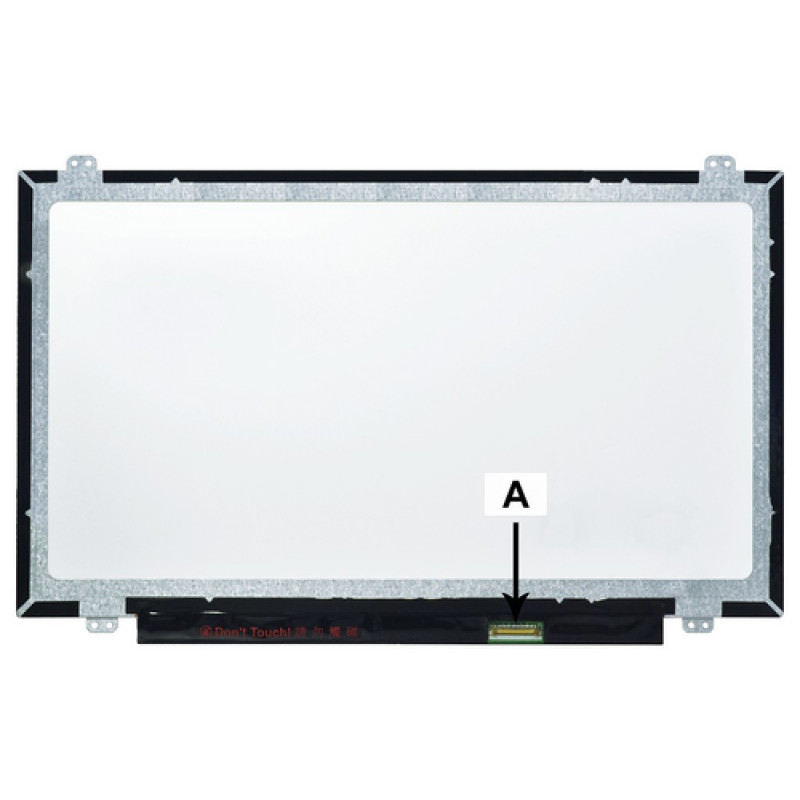

2-power 2P-B140XTN02.1 - näyttö - 35,6 cm (14) - WXGA

If your laptop screen is cracked, dim, or showing lines, the 2-POWER 2P-B140XTN02.1 brings it back to life. This 14-inch WXGA panel delivers the exact visual performance your notebook was built for, with a crisp 1366 x 768 resolution and a bright, glare-type finish that makes colors pop. It’s a direct replacement for the AU Optronics B140XTN02.1, so you can skip the guesswork and get your machine working again.

Who is it for

This panel is ideal for DIY repair enthusiasts, IT technicians, and anyone who wants to avoid the cost of a new laptop. If you’re comfortable with a screwdriver and have a compatible 14-inch notebook, this screen is a cost-effective way to restore your device to like-new condition. It’s also a smart choice for refurbishers and repair shops that need reliable, OEM-grade components.

Main features

• 14.0-inch (35.6 cm) WXGA display with 1366 x 768 resolution for sharp, clear images
• Glossy surface with hard coating (3H) for vibrant colors and scratch resistance
• WLED backlight with LED driver for consistent brightness and low power consumption
• eDP 30-pin connector for modern laptops; no additional adapters needed
• Fast 8 ms response time and 60 Hz refresh rate for smooth motion
• Wide operating temperature range (0 to 50 °C) for reliable performance

Specifications

• Panel model: AU Optronics B140XTN02.1
• Panel type: a-Si TFT-LCD, active matrix
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 400:1 (typical)
• Viewing angles: 45/45/15/35 degrees (L/R/U/D)
• Color depth: 262K (6-bit)
• Connector: eDP, 30 pins
• Backlight: WLED with LED driver
• Operating temperature: 0 to 50 °C
• Storage temperature: -20 to 60 °C

Tips

Before ordering, verify that your laptop originally used a 14.0-inch WXGA panel with a 30-pin eDP connector. Handle the panel by its edges and avoid touching the surface to prevent fingerprints and damage. Use an anti-static wrist strap during installation to protect the electronics. After installation, run a pixel test to ensure there are no dead or stuck pixels.
