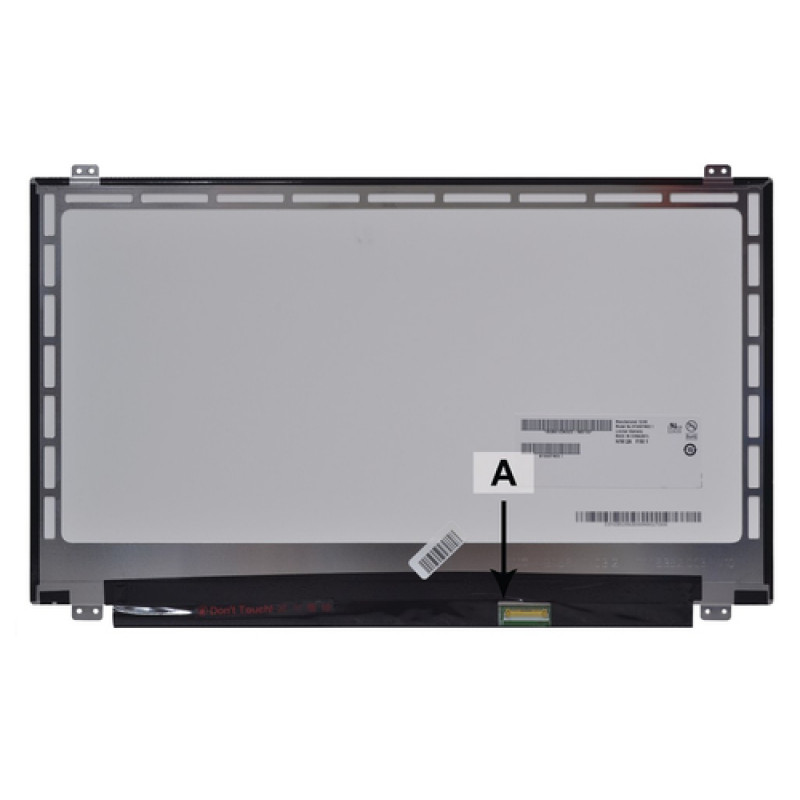

2-power 2P-B156XTN04.0 - näyttö - 39,6 cm (15,6 tuumaa) - WXGA

When a laptop screen cracks or dims, a technician reaches for a reliable replacement panel. The 2-Power 2P-B156XTN04.0 is a 15.6-inch WXGA HD display built for straightforward swaps in common notebooks. It uses a 30-pin eDP connector, LED backlight, and a matte TN surface to deliver a clear, glare-free image for everyday work.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Panel type: TN (Twisted Nematic), TFT active matrix
• Backlight: LED
• Aspect ratio: 16:9
• Connector: 30-pin eDP (Embedded DisplayPort)
• Surface finish: Matte (anti-glare)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Response time: 8 ms
• Viewing angles: 45° left/right, 20° up, 45° down
• Color gamut: 45% NTSC
• Color depth: 6-bit (262K colors)

Why choose it

This panel matches the AUO B156XTN04.0 specification, so it fits many laptops that originally shipped with that screen. The matte coating reduces reflections under office lights or near windows, and the LED backlight keeps power draw low. Installation is simplified by the standard 30-pin eDP interface.

Ideal use cases

• Replacing a damaged or faulty 15.6-inch WXGA screen in a laptop
• Upgrading a glossy panel to a matte finish for better visibility
• Repairing business notebooks, student laptops, or refurbished units
• DIY repairs and professional service workshops

Good to know

The panel is a bare display without mounting brackets or cables. Verify your laptop's original screen connector and mounting position before ordering. Handle by the edges and avoid touching the surface to prevent damage. This listing includes the LCD panel only; no tools or instructions are provided.
