2-power 2P-B156XW02V.0 - näyttö - 39,6 cm (15,6) - WXGA

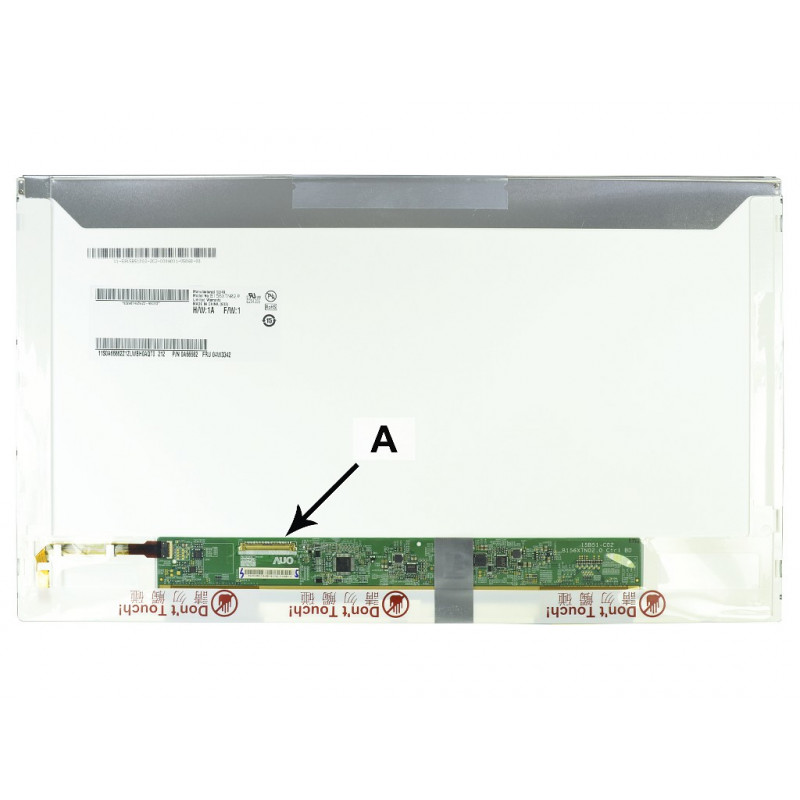

A cracked or dim laptop display can turn a perfectly good machine into a frustrating paperweight. The 2-POWER 2P-B156XW02V.0 replacement panel brings your 15.6-inch laptop back to life with a crisp WXGA picture and reliable performance. This direct-fit LCD uses a 40-pin LVDS connection and LED backlight, making installation straightforward for technicians and confident DIYers.

Who is it for

This screen is ideal for repair shops, IT departments, and home users who need a dependable replacement for laptops originally fitted with a B156XW02 V.0 or compatible 15.6-inch WXGA 40-pin LVDS panel. If your current display has dead pixels, backlight failure, or physical damage, this new panel restores full functionality without the cost of a new laptop.

Main features

• 15.6-inch TFT active matrix LCD with LED backlight for bright, energy-efficient performance
• WXGA resolution (1366 x 768) and 16:9 aspect ratio for sharp text and video
• Glossy TN panel with 220 cd/m² brightness and 500:1 contrast ratio
• 40-pin LVDS connector for easy plug-in installation
• Fast 8 ms response time reduces motion blur in videos and games
• Compact panel dimensions: 359.3 x 209.5 x 3.2 mm, weighing only 0.4 kg

Specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight type: LED
• Display technology: TFT Active Matrix
• Connector type: 40-pin LVDS
• Surface finish: Glossy
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Viewing angles: 45°/45°/20°/40° (Left/Right/Up/Down)
• Response time: 8 ms
• Panel type: TN (Twisted Nematic)
• Color depth: 6-bit (262,144 colors)
• Panel dimensions (WxHxD): 359.3 x 209.5 x 3.2 mm
• Weight (panel only): 0.4 kg
• Condition: New

Tips

Before ordering, verify your laptop's original panel part number and connector type. The 40-pin LVDS interface is common but not universal—check your service manual or existing screen label. Handle the panel by its edges, avoid touching the surface, and use an anti-static wrist strap during installation. Test the screen before fully reassembling the bezel to ensure proper connection and image quality.
