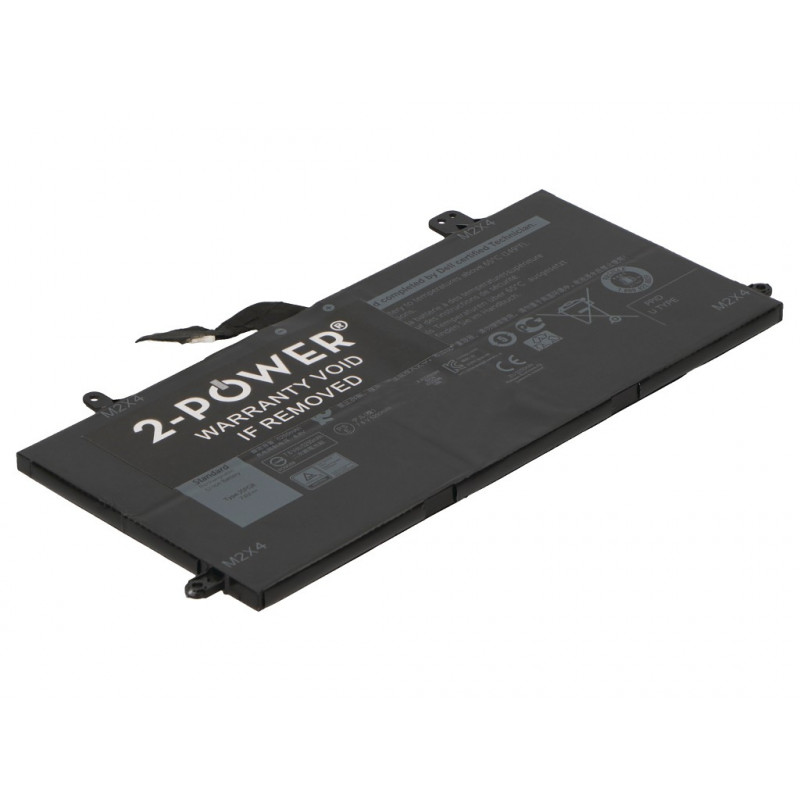

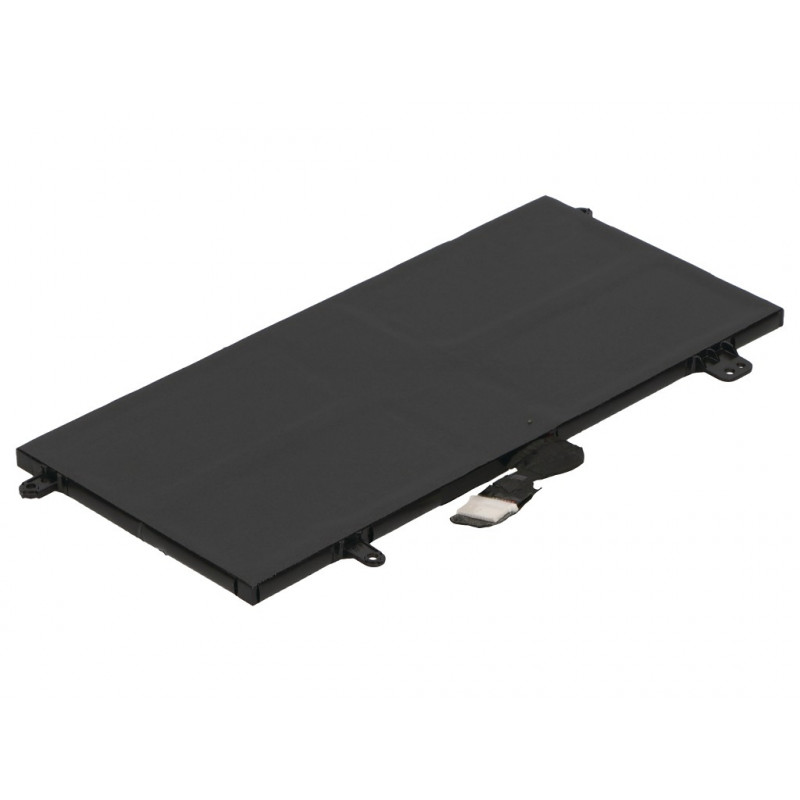

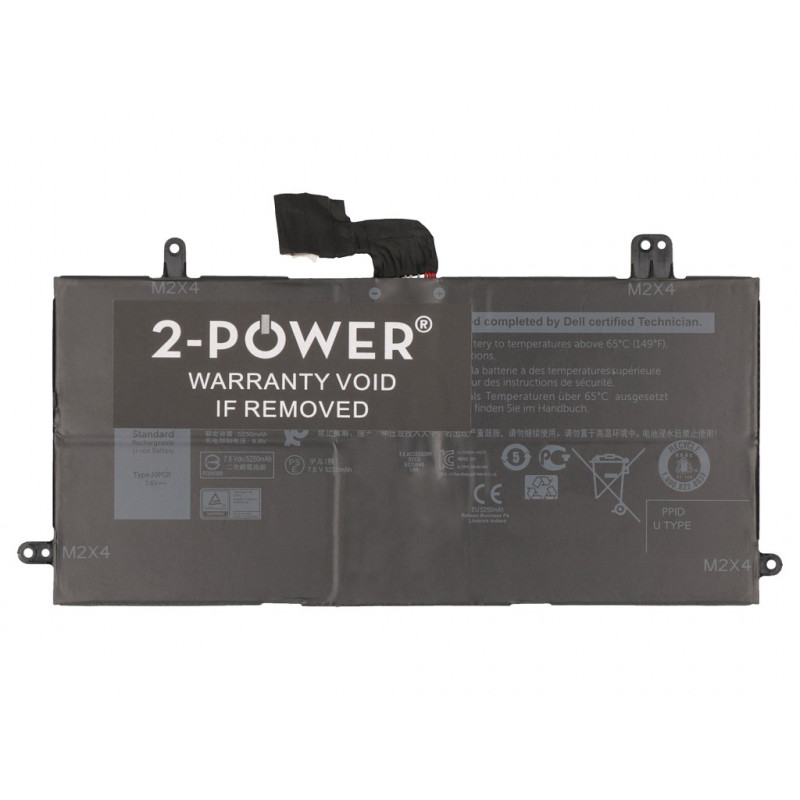

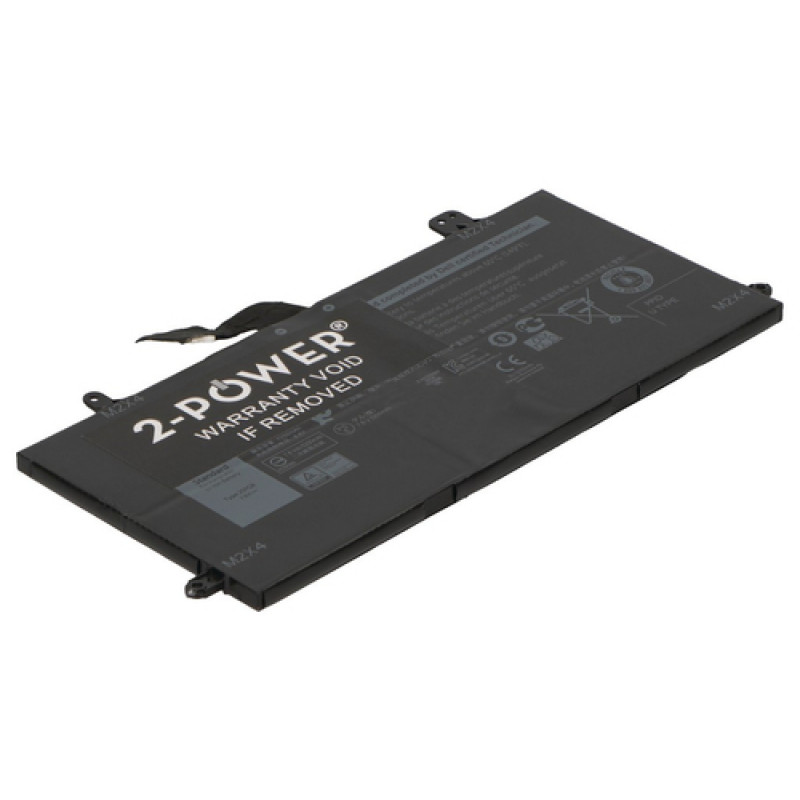

2-power 2P-J0PGR - näyttö - akku 42 mAh 7,6 V

For devices that rely on a compact, dependable power source, the 2-POWER 2P-J0PGR stands out with its precise 42 mAh capacity and stable 7.6 V output. Unlike generic coin cells or bulky packs, this two-cell lithium-ion unit is engineered for small electronic devices with indicator or display functions, where consistent voltage and a slim profile matter most.

Highlights

• Rechargeable lithium-ion chemistry with 42 mAh capacity and 7.6 V nominal voltage
• Compact 2-cell (2S) configuration with 3.8 V per cell for balanced power delivery
• Integrated protection against overcharge, over-discharge, overcurrent, and short circuit
• Wide operating temperature range from -20°C to 60°C for versatile environments
• CE and RoHS compliant, with a cycle life of 500+ charges to 80% capacity

In daily use

This battery is a drop-in solution for specialized applications such as status indicators, small displays, or portable sensors. Its 0.3192 Wh energy capacity ensures long runtimes between charges, while the built-in safety circuitry protects both the battery and the host device. The rechargeable design eliminates the need for frequent replacements, reducing waste and long-term costs.

Full specifications

• Battery chemistry: Lithium-Ion (Li-ion)
• Capacity: 42 mAh
• Voltage: 7.6 V (nominal)
• Energy: 0.3192 Wh
• Number of cells: 2 (2S configuration)
• Nominal cell voltage: 3.8 V per cell
• Maximum charge voltage: 8.4 V (4.2 V per cell)
• Minimum discharge voltage: 6.0 V (3.0 V per cell)
• Cycle life: 500+ cycles (to 80% capacity)
• Operating temperature: -20°C to 60°C
• Storage temperature: -20°C to 45°C
• Safety features: Overcharge, over-discharge, overcurrent, short-circuit protection
• Compliance: CE, RoHS
• Form factor: Compact
• Connector type: Proprietary (not specified)

Final note

The 2-POWER 2P-J0PGR delivers reliable, rechargeable power in a small package, making it an excellent choice for OEM replacements or custom projects requiring a safe and efficient lithium-ion cell.
