2-power 2P-LP140WHU-TPBJ - näyttö - 35,6 cm (14") - WXGA

When the display on a 14-inch laptop goes dark or develops cracks, technicians need a panel that matches the original's mounting points, connector position, and electrical characteristics without guesswork. The 2-POWER 2P-LP140WHU-TPBJ is a direct-fit replacement LCD screen for compatible notebooks, built around a 35.6 cm (14.0") WXGA panel with a 16:9 aspect ratio and LED backlight. It is intended for repair professionals and experienced DIY upgraders who require a new, non-refurbished component that restores the machine to full visual performance.

Key specifications

• Screen size: 14.0 inches (35.6 cm) diagonal
• Native resolution: WXGA 1366 x 768 pixels
• Aspect ratio: 16:9 widescreen
• Panel technology: TN (Twisted Nematic) TFT active matrix
• Backlight: LED, typical brightness 200–220 cd/m²
• Surface finish: Glossy

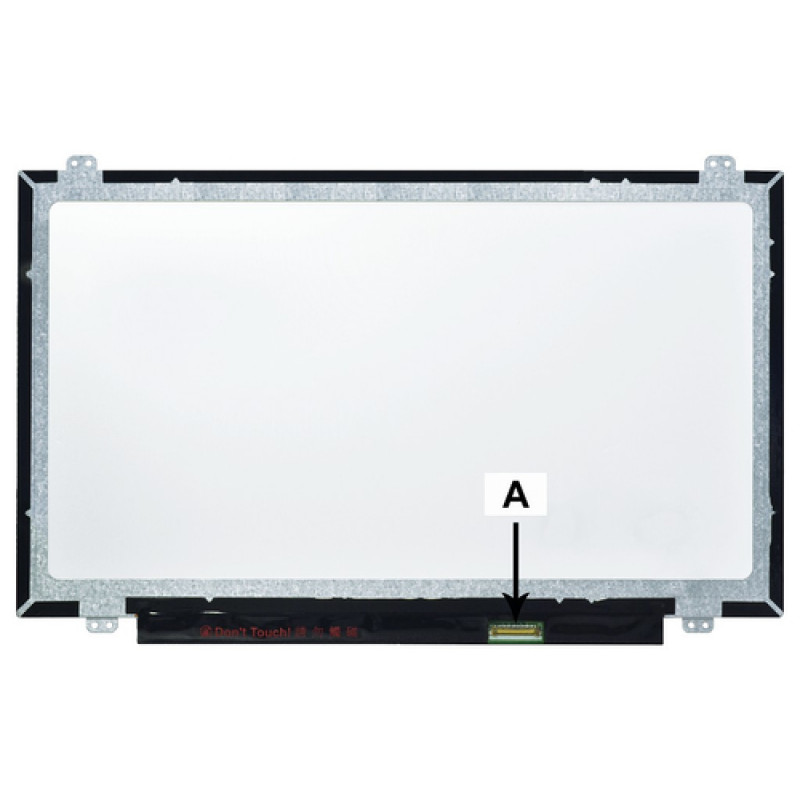

• Connector: 30-pin eDP (Embedded DisplayPort), located bottom right when viewed from the rear
• Refresh rate: 60 Hz
• Response time: 8 ms (typical)
• Viewing angles: 45° left / 45° right / 20° up / 45° down
• Colour gamut: 45% NTSC
• Voltage: 3.3 V
• Mounting: Side brackets (no front bezel or rear cover included)
• Condition: New

Why choose it

This panel is supplied as a bare LCD module without a digitizer or bezel, which keeps the replacement cost low and allows reuse of the original housing. The 30-pin eDP interface is common on many thin-and-light laptops from the 2013–2017 era, and the bottom-right connector position matches a wide range of chassis designs. Because the panel is new rather than pulled from a used system, it carries no burn-in, dead pixels, or backlight unevenness from prior use. The glossy coating enhances perceived contrast and colour saturation in indoor environments, while the LED backlight provides consistent illumination with low power draw.

Ideal use cases

• Replacing a cracked, dim, or flickering 14-inch WXGA screen in a compatible laptop
• Upgrading a lower-resolution or CCFL-backlit panel to LED WXGA for better brightness and efficiency
• Building or repairing an all-in-one PC, portable monitor, or industrial terminal that uses a 30-pin eDP 14-inch panel
• Stocking a repair shop with a commonly requested 14-inch glossy TN panel for quick turnaround

Good to know

Before ordering, verify the original screen's resolution, connector type (30-pin eDP), connector position, and mounting hole spacing. The panel is compatible only with systems that use a bottom-right eDP connector and side mounting brackets. Installation requires careful handling of the flexible connector and may involve removing adhesive tape or screws from the old panel. A clean, dust-free work area and an anti-static wrist strap are recommended. The panel does not include a video cable, inverter, or mounting screws. For best results, test the panel before final assembly.
