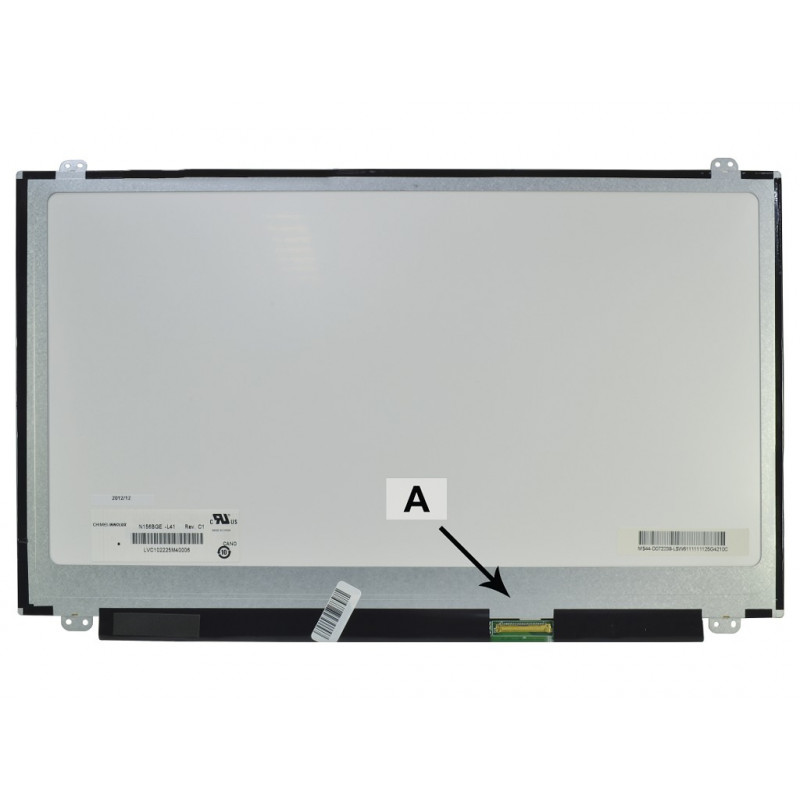

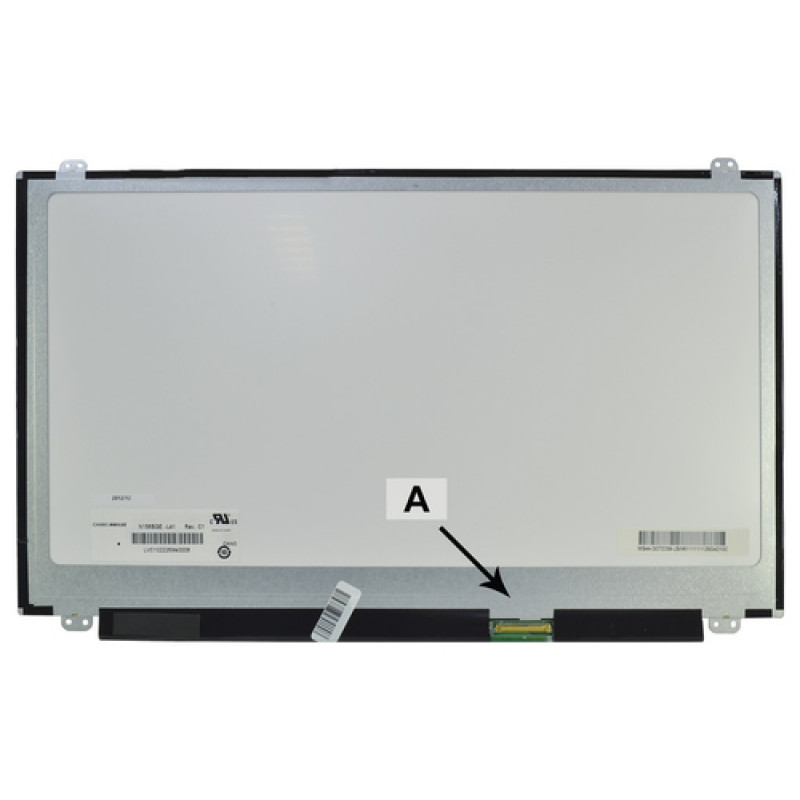

2-power 2P-LP156WH3-TLT1 - 39,6 cm (15,6") - WXGA

The 2-POWER 2P-LP156WH3-TLT1 stands apart from generic replacement panels by matching the exact LP156WH3 series specifications, ensuring a drop-in fit and consistent colour reproduction for compatible laptops. Its 15.6-inch WXGA resolution with LED backlight and glossy finish delivers a bright, crisp image for everyday productivity and multimedia.

Highlights

• 15.6-inch (39.6 cm) diagonal screen with 1366 x 768 WXGA HD resolution
• TN panel with LED backlight for energy efficiency and slim profile
• Glossy (glare) surface enhances perceived contrast and colour vibrancy
• 40-pin LVDS connector located on the left bottom for straightforward installation
• 60 Hz refresh rate and 8 ms response time suitable for office and video use
• Side bracket mounting compatible with many laptops using LP156WH3 series panels

In daily use

This panel delivers reliable performance for spreadsheets, web browsing, and video playback. The glossy coating boosts clarity in controlled lighting, while the 200 cd/m² brightness and 500:1 contrast ratio keep images readable. Viewing angles of 45/45/20/45 degrees are typical for TN technology, making it best suited for single-user viewing. Installation is simplified by the standard 40-pin LVDS interface and side brackets, though exact bracket positions may vary by laptop model—verify compatibility before purchase.

Full specifications

• Brand: 2-POWER
• Model: 2P-LP156WH3-TLT1
• Screen Size: 15.6 inch (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect Ratio: 16:9
• Panel Type: TN (Twisted Nematic)
• Backlight Type: LED
• Data Connector: 40-pin LVDS (Left Bottom)
• Surface Type: Glossy (Glare)
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m² (nits)
• Response Time: 8 ms
• Viewing Angle: 45/45/20/45 (L/R/U/D)
• Color Gamut: 45% NTSC
• Contrast Ratio: 500:1
• Mounting Type: Side Brackets (may vary by specific laptop model)
• Condition: New

Final note

For a dependable replacement that mirrors original LP156WH3 characteristics, the 2-POWER 2P-LP156WH3-TLT1 offers a cost-effective solution without sacrificing core display quality.
