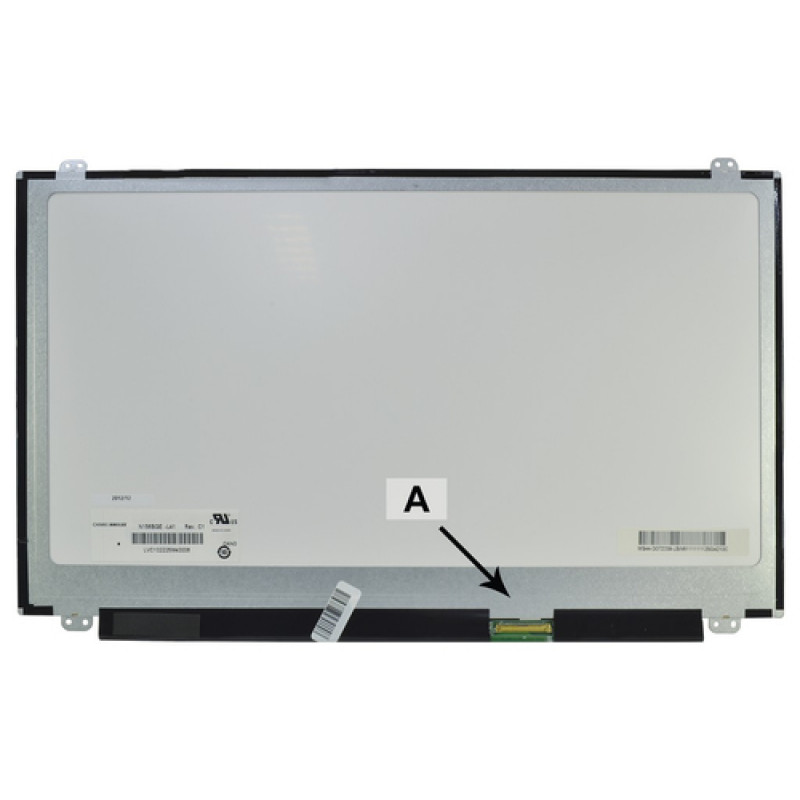

2-power 2P-LTN156AT30-601 - näyttö - 39,6 cm (15,6) - WXGA

Bring your laptop display back to life with a crisp 1366 x 768 WXGA resolution on a 15.6-inch LED-backlit panel. The 2-Power 2P-LTN156AT30-601 delivers a 60 Hz refresh rate and 220 cd/m² brightness for clear, everyday visuals.

Overview

This replacement laptop screen is engineered to match the original Samsung LTN156AT30 panel specifications, ensuring a straightforward swap for compatible notebooks. The TN (Twisted Nematic) technology offers fast 8 ms response times, while the glossy surface enhances colour vibrancy for multimedia and office tasks. A 40-pin LVDS connector positioned at the bottom left simplifies installation, and the 16:9 aspect ratio is ideal for widescreen content.

What stands out

• Native WXGA resolution (1366 x 768) for sharp text and images
• LED backlighting for energy efficiency and uniform brightness
• Glossy finish delivers richer colours and deeper contrast
• Compatible with a wide range of 15.6-inch laptops using 40-pin LVDS
• New condition, ready for immediate installation

Technical details

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Backlight type: LED
• Display technology: TN (Twisted Nematic)
• Surface type: Glossy
• Connector type: 40-pin LVDS
• Connector position: Bottom left
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Response time: 8 ms (typical)
• Viewing angle (H/V): 45°/45°/20°/40° (L/R/U/D)
• Color depth: 6-bit (262K colors)
• Panel manufacturer (original): Samsung (compatible with LTN156AT30)

Our verdict

An exact-fit replacement that restores your laptop's display with reliable performance and vivid clarity. Perfect for DIY repairs and professional refurbishments alike.
