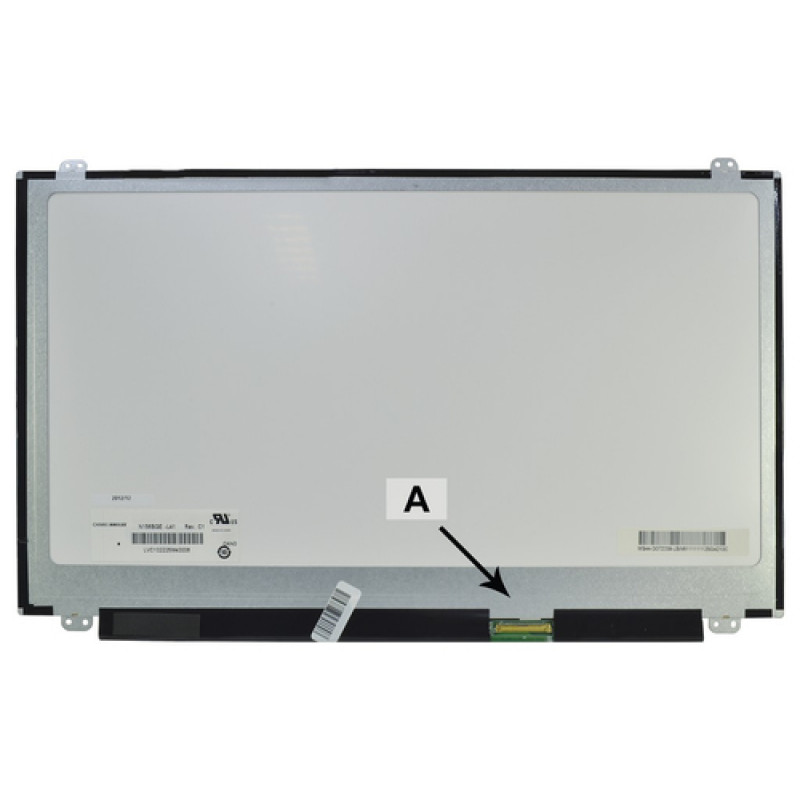

2-power 2P-LTN156AT30-701 - näyttö - 39,6 cm (15,6) - WXGA

A cracked or dim laptop screen can make your device unusable, but replacing it with the right panel restores clarity and productivity. The 2-POWER 2P-LTN156AT30-701 is a 15.6-inch WXGA display engineered as a direct replacement for Samsung LTN156AT30 and compatible panels, offering a cost-effective way to bring your laptop back to life.

Who is it for

This panel is ideal for technicians, IT departments, and DIY repair enthusiasts who need a reliable, new screen for laptops originally equipped with a 15.6-inch WXGA display. It suits users who want to avoid the high cost of a new laptop and prefer a straightforward component swap.

Main features

• 15.6-inch Active Matrix TFT LCD with LED backlight for bright, energy-efficient performance
• WXGA resolution (1366 x 768 pixels) delivers sharp text and vivid images

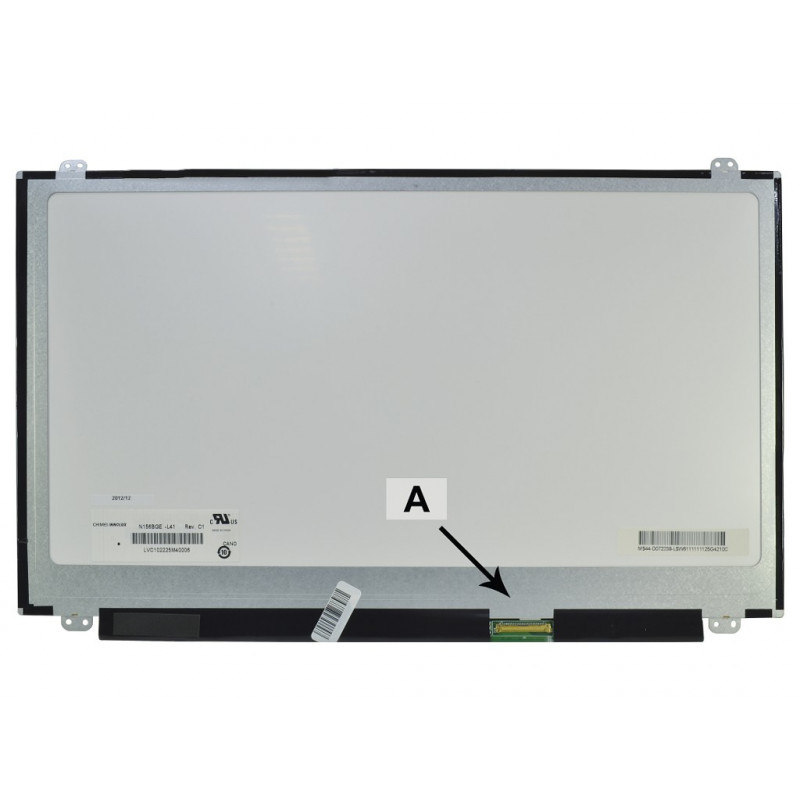

• 40-pin LVDS connector positioned bottom right for easy installation
• Glossy surface enhances color saturation and contrast
• 60 Hz refresh rate and 8 ms response time provide smooth motion for everyday tasks
• Designed as a replacement for Samsung LTN156AT30 and other compatible panels

Specifications

• Display diagonal: 15.6 inches (39.6 cm)
• Display resolution: 1366 x 768 pixels (WXGA HD)
• Display technology: Active Matrix TFT LCD
• Backlight type: LED
• Aspect ratio: 16:9
• Display surface: Glossy
• Connector type: 40-pin LVDS
• Connector location: Bottom right
• Refresh rate: 60 Hz
• Brightness (typical): 200 cd/m²
• Contrast ratio (typical): 500:1
• Response time (typical): 8 ms
• Viewing angles: 45° left, 45° right, 20° up, 40° down
• Color support: 262K colors (6-bit)
• Condition: New
• Mounting: Screw holes (without brackets)

Tips

Before ordering, verify your laptop's screen size, resolution, and connector type. Handle the panel by its edges and use an anti-static wrist strap during installation. Test the screen before fully reassembling your laptop to ensure proper function.
