2-power 2P-LTN156AT35-H01 - näyttö - 39,6 cm (15,6") - WXGA

For users seeking a dependable replacement display that mirrors the original Samsung LTN156AT35-H01 panel, the 2-POWER 2P-LTN156AT35-H01 delivers a crisp 1366x768 WXGA image in a slim, energy-efficient LED-backlit package. Its glossy TN surface and 16:9 aspect ratio make it a straightforward drop-in solution for many 15.6-inch laptops, with a 40-pin LVDS connector positioned on the left bottom for easy integration.

Highlights

• 15.6-inch diagonal (39.6 cm) with WXGA HD resolution (1366x768)
• LED backlight for lower power consumption and longer lifespan
• Glossy TN panel with 16:9 aspect ratio, ideal for everyday computing

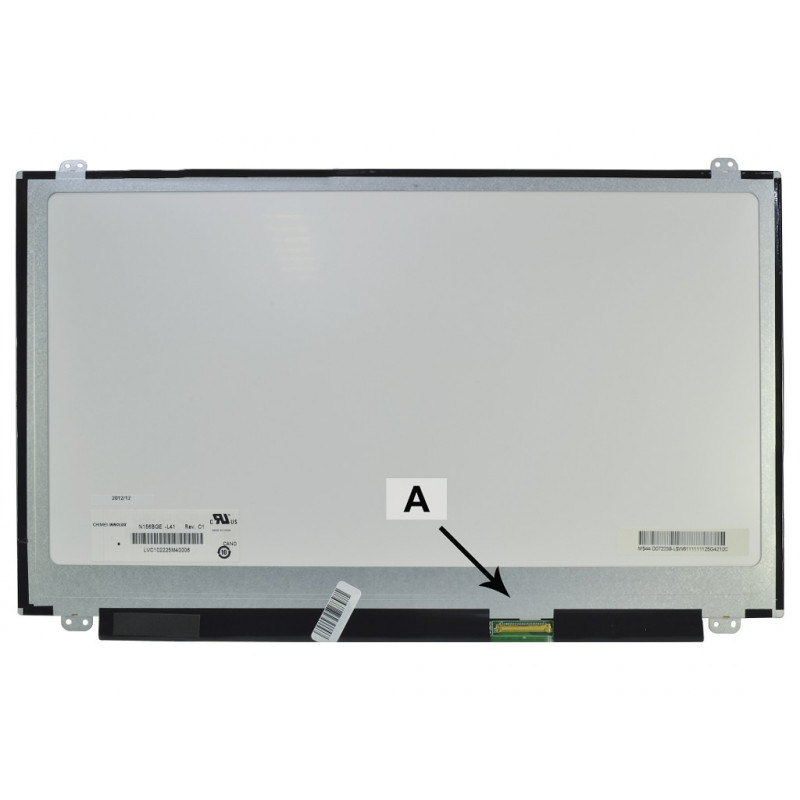

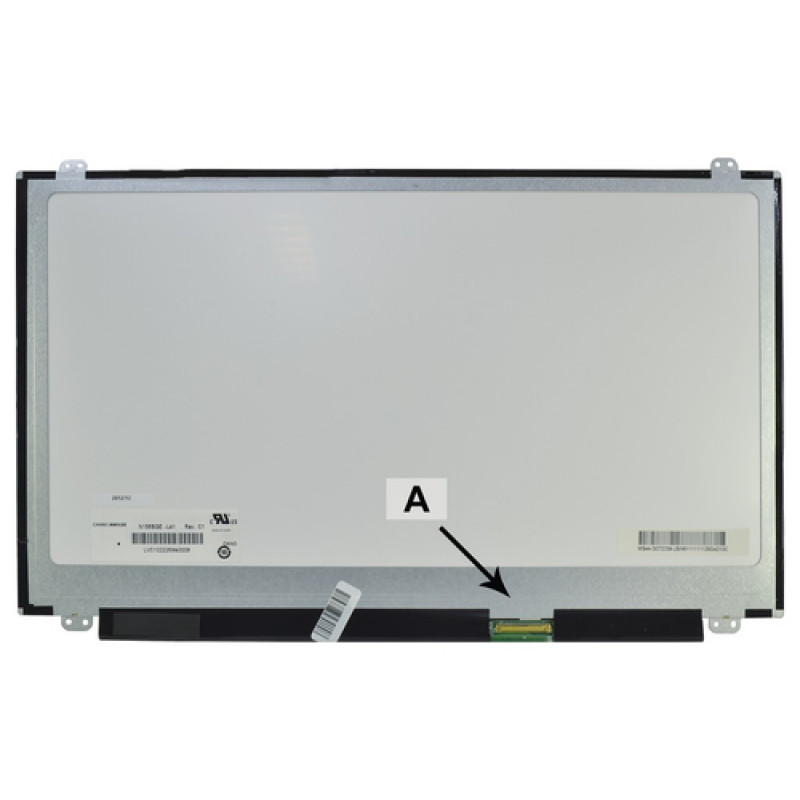

• 40-pin LVDS interface (left bottom) for broad compatibility
• 60 Hz refresh rate and 8 ms response time for smooth motion
• Side bracket mounting for secure installation

In daily use

This panel provides clear text and vibrant colors for office tasks, web browsing, and video playback. The glossy finish enhances contrast in controlled lighting, while the 200 cd/m² brightness and 400:1 contrast ratio ensure comfortable viewing. With a 45% NTSC color gamut and 45/45/20/40 viewing angles, it suits typical laptop usage without excessive power draw.

Full specifications

• Display Size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect Ratio: 16:9
• Backlight Technology: LED
• Display Technology: TN (Twisted Nematic)
• Surface Type: Glossy
• Connector Type: 40-pin LVDS (Left Bottom)
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m² (Typical)
• Contrast Ratio: 400:1 (Typical)
• Response Time: 8 ms (Typical)
• Viewing Angle (H/V): 45/45/20/40 (Typical)
• Color Gamut: 45% NTSC (Typical)
• Pixel Density: ~100 PPI
• Panel Model Compatibility: Samsung LTN156AT35-H01 equivalent
• Mounting Type: Side Brackets

Final note

Engineered as a reliable replacement, the 2P-LTN156AT35-H01 restores your laptop's display with minimal hassle, backed by 2-POWER's commitment to quality.
