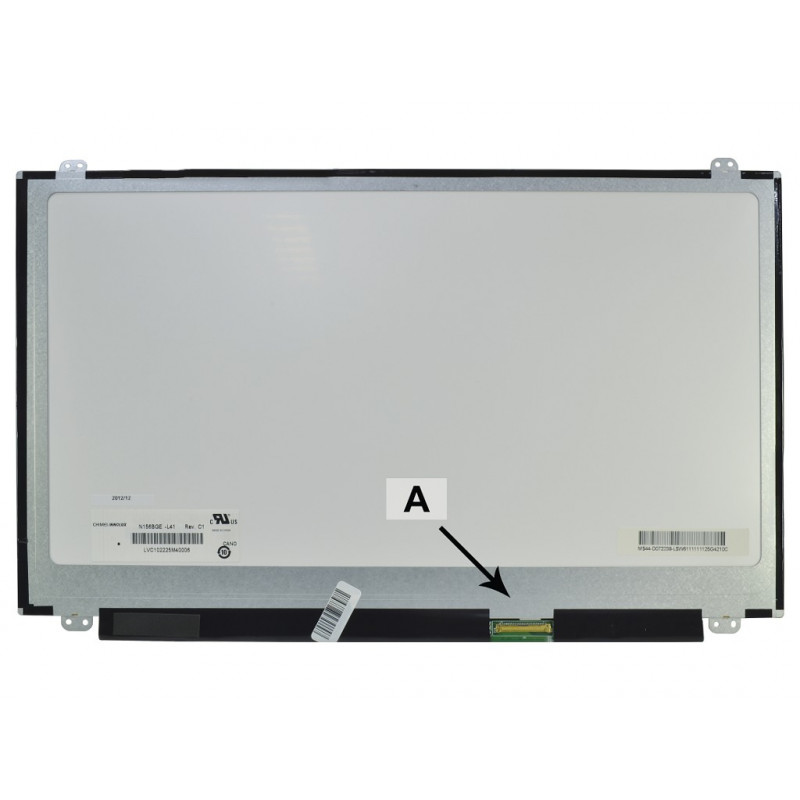

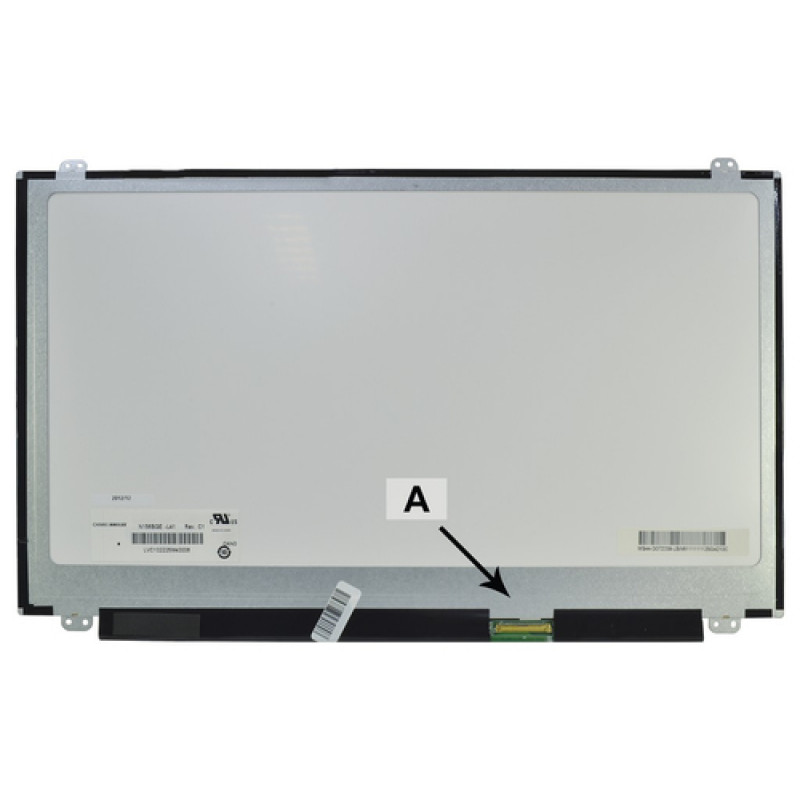

2-power 2P-LTN156AT35-T01 - näyttö - 39,6 cm (15,6") - WXGA

Unlike generic replacement screens that often suffer from washed-out colours and narrow viewing angles, this 2-POWER 2P-LTN156AT35-T01 panel faithfully reproduces the original Samsung LTN156AT35 specifications. It delivers a crisp 1366x768 WXGA image on a 15.6-inch diagonal, with a matte surface that keeps reflections at bay in bright offices or on the go. The LED backlight ensures consistent brightness and low power draw, making it a dependable drop-in upgrade for compatible laptops.

Highlights

• Exact replacement for Samsung LTN156AT35 and compatible models
• 15.6-inch TFT-LCD with 1366x768 (WXGA) resolution and 16:9 aspect ratio
• LED backlight for energy efficiency and uniform illumination
• Matte anti-glare finish reduces reflections and eye strain
• 40-pin LVDS connector positioned bottom left for straightforward installation
• Supports 262,144 colours (6-bit) with 500:1 contrast ratio
• Wide 45°/45°/20°/40° viewing angles for flexible use
• Fast 8 ms response time and 60 Hz refresh rate for smooth visuals

In daily use

Whether you are repairing a laptop, upgrading a workstation, or building a custom display, this panel integrates seamlessly. The side mounting brackets align with standard chassis designs, and the LVDS interface ensures compatibility with a broad range of systems. With a typical power consumption of only 4.5 W, it helps extend battery life while maintaining a bright 220 cd/m² output. The matte coating is particularly valuable in environments with overhead lighting or windows, as it minimises glare without sacrificing colour accuracy.

Full specifications

• Brand: 2-POWER
• Model: 2P-LTN156AT35-T01
• MPN: 2P-LTN156AT35-T01
• Display diagonal: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TFT-LCD, active matrix
• Backlight: LED
• Surface finish: Matte
• Connector: 40-pin LVDS (bottom left)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Colour support: 262,144 colours (6-bit)
• Contrast ratio: 500:1
• Power consumption: 4.5 W (typical)
• Mounting: Side brackets
• Data interface: LVDS
• Compatibility: Replaces Samsung LTN156AT35 and compatible models
• Condition: New

Final note

For technicians and enthusiasts who demand OEM-level quality without the OEM price, this 2-POWER panel offers a reliable, high-performance solution. Its exacting specifications and robust construction ensure a long service life, while the matte finish and LED backlight provide everyday comfort and efficiency.
