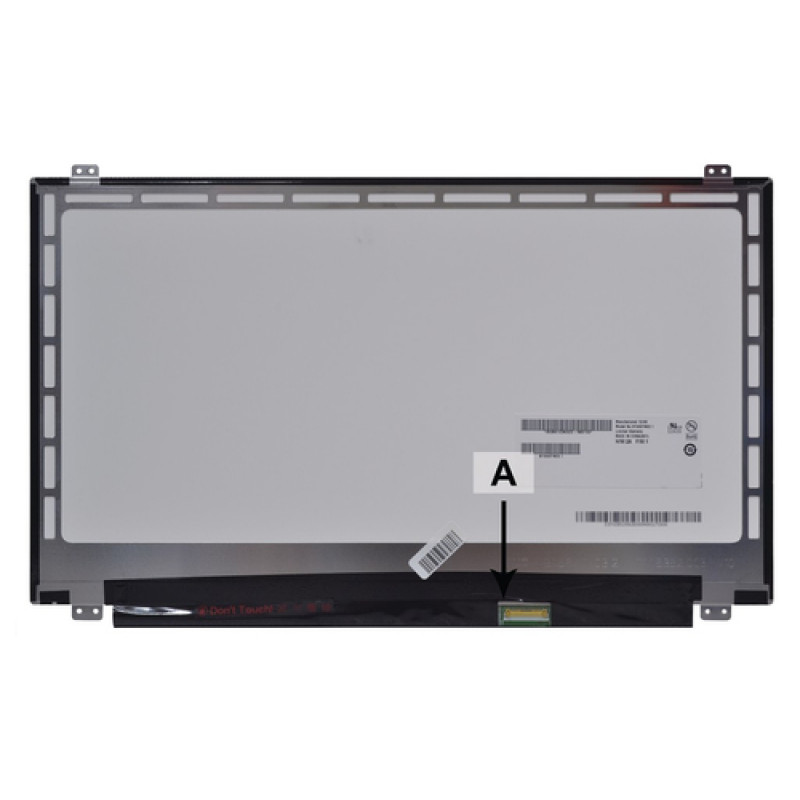

2-power 2P-LTN156AT39-001 - näyttö - 39,6 cm (15,6") - WXGA

When a laptop display fails, the difference between a quick fix and a drawn-out repair often comes down to the panel itself. The 2-POWER 2P-LTN156AT39-001 is a direct replacement for the Samsung LTN156AT39-001, built to the same 15.6-inch WXGA specification but with a glossy TN surface that favours punchy contrast in controlled lighting. It uses a 40-pin LVDS connector and LED backlight, which means it draws less power than older CCFL panels while maintaining a 60 Hz refresh rate.

Highlights

• 15.6-inch (39.6 cm) diagonal, 16:9 aspect ratio
• WXGA resolution: 1366 x 768 pixels
• TN panel with glossy finish and LED backlight
• 40-pin LVDS interface for broad compatibility
• 8 ms response time, 200 cd/m² typical brightness
• 262K colours (6-bit) and 400:1 contrast ratio

In daily use

This panel is intended for technicians and end users who need a dependable replacement screen for compatible 15.6-inch laptops. The TN technology delivers fast pixel transitions, which is useful for video and everyday productivity. The glossy coating enhances perceived sharpness and colour depth, though it is more reflective than matte alternatives. Installation requires careful handling of the 40-pin LVDS cable and correct alignment of the mounting brackets.

Full specifications

• Brand: 2-POWER
• Model: 2P-LTN156AT39-001
• MPN: 2P-LTN156AT39-001
• Display size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Surface finish: Glossy
• Backlight type: LED
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 400:1 (typical)
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Response time: 8 ms
• Colour support: 262K colours (6-bit)
• Condition: New
• Compatibility: Samsung LTN156AT39-001 and similar 15.6" WXGA panels

Final note

Before ordering, verify the original panel's connector position, mounting hole pattern, and cable length. The 2P-LTN156AT39-001 is a bare panel without brackets, bezel, or cables, so those parts must be reused from the existing assembly.
