2-power 2P-LTN156HL01-102 - näyttö - 39,6 cm (15,6") - Full HD

When a laptop screen cracks or dims, a reliable replacement panel gets the machine back to work. The 2-POWER 2P-LTN156HL01-102 is a 15.6-inch Full HD display built for straightforward swaps in notebooks and portable monitors. It uses a TN panel with a matte anti-glare finish, so reflections stay low in offices, workshops, or bright rooms.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: Full HD 1920 x 1080, 16:9 aspect ratio
• Panel type: TN with LED backlight, matte surface

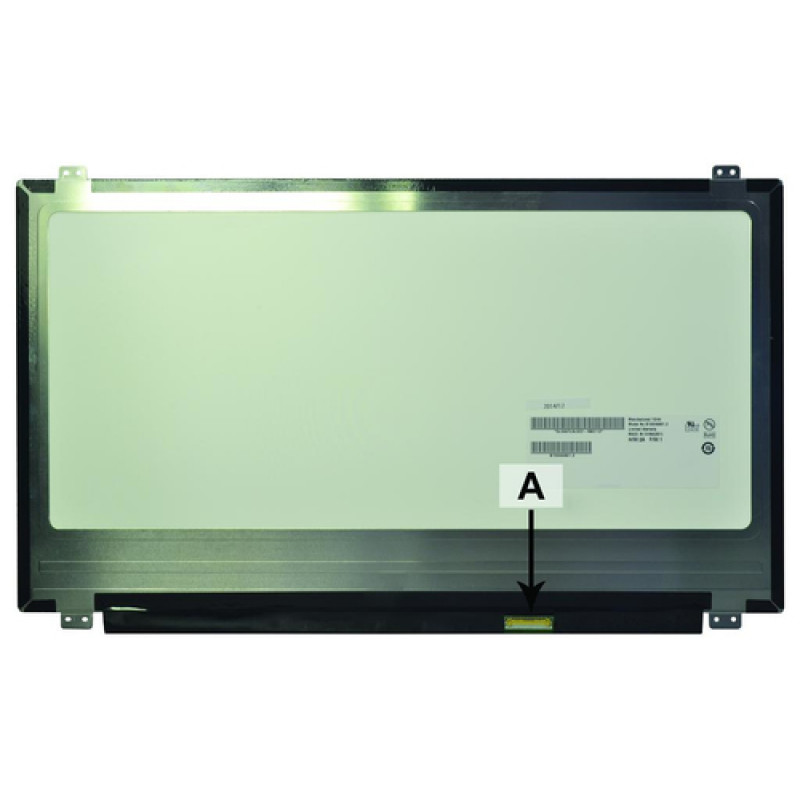

• Connector: 30-pin eDP, bottom right position
• Refresh rate: 60 Hz
• Brightness: 220 cd/m² typical
• Contrast ratio: 500:1 typical
• Viewing angles: ±45° horizontal, ±20° vertical
• Response time: 8 ms typical
• Colour gamut: 45% NTSC
• Original panel reference: Samsung LTN156HL01
• Condition: New

Why choose it

This panel matches the original Samsung LTN156HL01 specifications, ensuring compatibility with many 15.6-inch laptops that use a 30-pin eDP connection. The matte coating reduces glare, and the Full HD resolution delivers crisp text and images for daily tasks. Installation is straightforward for technicians and confident DIYers.

Ideal use cases

• Replacing a damaged or faulty laptop screen
• Upgrading a lower-resolution panel to Full HD
• Building or repairing portable monitors
• Refurbishing business notebooks for resale

Good to know

Before ordering, verify that your device uses a 30-pin eDP connector and supports a 15.6-inch panel with the same mounting holes and outline dimensions. The panel is new and tested, but professional installation is recommended to avoid damage from static or improper handling.
