2-power 2P-N140BGA-EA4 C3 - 35,6 cm (14")

A cracked or dim laptop display can make even simple tasks frustrating. The 2-POWER 2P-N140BGA-EA4 C3 replacement panel restores crisp visuals to compatible 14-inch notebooks, eliminating the need for an expensive new machine. This 14.0-inch HD (1366x768) TN panel with LED backlight and matte finish delivers clear images and reduces glare, making it suitable for everyday computing in various lighting conditions.

Who is it for

This panel is ideal for technicians, IT departments, and DIY users who need a reliable, cost-effective screen replacement for laptops that use a 30-pin eDP connection. It is a universal fit for many 14.0-inch HD laptops, provided the connector position and mounting match.

Main features

• 14.0-inch diagonal, 16:9 aspect ratio, HD resolution (1366 x 768)
• TN (Twisted Nematic) panel with LED backlight for energy efficiency
• Matte (anti-glare) surface finish reduces reflections and eye strain

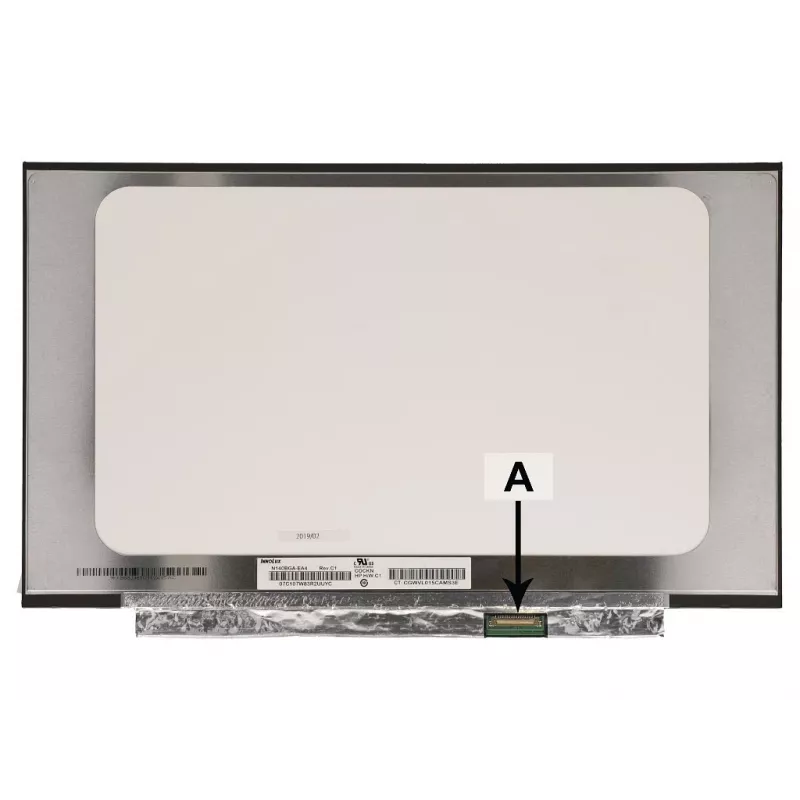

• 30-pin eDP connector, bottom right position (when viewed from the back)
• 60 Hz refresh rate, 8 ms response time, 200 cd/m² brightness
• Panel only, without frame – easy to integrate into existing bezel
• Non-touch, a-Si TFT-LCD technology, 45% NTSC color gamut
• Low power consumption (~3.5 W) helps preserve battery life

Specifications

• Brand: 2-POWER
• Model: 2P-N140BGA-EA4 C3
• Panel Manufacturer Part Number: N140BGA-EA4 C3
• Display Size: 14.0 inches
• Resolution: 1366 x 768 (HD)
• Aspect Ratio: 16:9
• Panel Type: TN (Twisted Nematic)
• Backlight Type: LED
• Surface Finish: Matte (Anti-Glare)
• Connector Type: 30-pin eDP (Embedded DisplayPort)
• Connector Position: Bottom Right (when viewed from the back)
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m²
• Color Gamut: 45% NTSC
• Viewing Angle (H/V): 90° / 50°
• Response Time: 8 ms
• Technology: a-Si TFT-LCD
• Compatibility: Universal 14.0" HD 30-pin eDP replacement
• Condition: New
• Frame: Without frame (panel only)
• Touchscreen: No
• Power Consumption: ~3.5 W

Tips

Before ordering, verify that your original screen has the same size, resolution, connector type (30-pin eDP), and connector position. Handle the panel by its edges to avoid fingerprints or pressure damage. Test the screen before final assembly to ensure compatibility.
