2-power 2P-N156B6-L04REV.C1 näyttö kannettavan varaosa

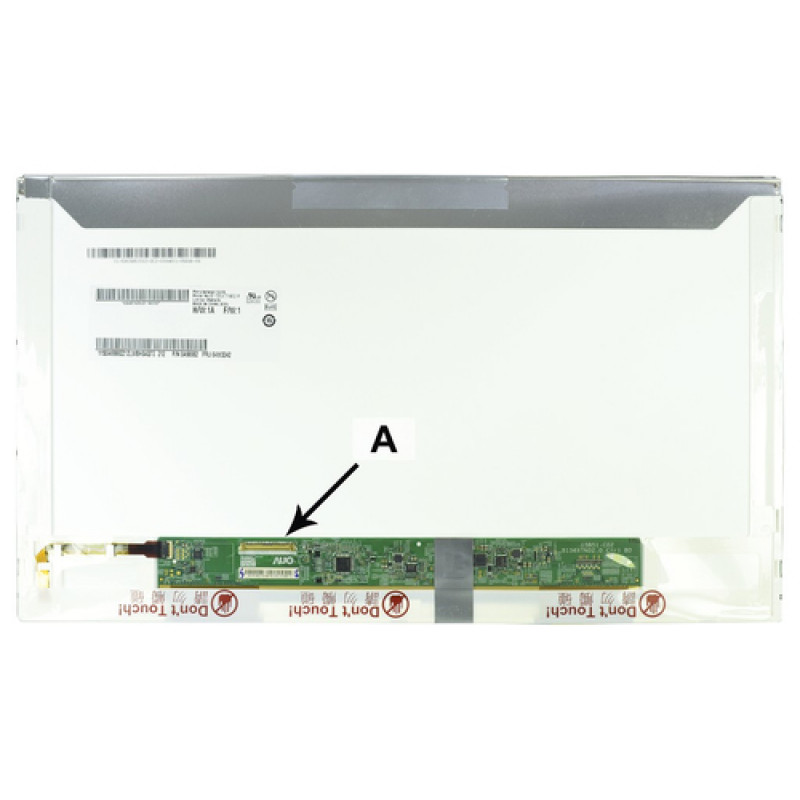

This 15.6-inch laptop display panel delivers crisp WXGA HD visuals with a glossy finish, making it a direct replacement for the N156B6-L04 Rev.C1. Its 40-pin LVDS connector and LED backlight ensure reliable compatibility and energy efficiency.

Advantages

The TN panel offers a fast 8 ms response time and 60 Hz refresh rate, suitable for everyday computing. LED backlighting provides consistent brightness at 200 cd/m² while keeping power consumption low at approximately 3.5W. The glossy surface enhances colour vibrancy for multimedia use.

Suitable for

• Laptops requiring a 15.6" WXGA HD (1366x768) 40-pin LVDS glossy panel
• Replacing faulty or damaged screens in compatible notebooks
• DIY repairs and professional refurbishment projects

Key specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (WXGA HD)
• Panel type: TN
• Backlight: LED
• Surface: Glossy
• Aspect ratio: 16:9
• Connector: 40-pin LVDS (bottom left when viewed from back)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Colour support: 262K (6-bit)
• Response time: 8 ms
• Power consumption: ~3.5W
• Condition: New

Recommendations

For best results, verify your laptop's original panel part number (e.g., N156B6-L04 Rev.C1) and connector position before ordering. Handle the panel by its edges and avoid touching the surface to prevent damage.
