2-power 2P-Y2HM9 - näyttö - 31,8 cm (12.5) - WXGA

Replace a dim or damaged laptop screen with the 2-POWER 2P-Y2HM9, a 12.5-inch WXGA display panel that restores crisp, readable visuals without the cost of a new machine. Unlike generic panels, this unit uses a 30-pin eDP connector and a matte anti-glare surface, making it a direct fit for many business and ultraportable laptops that require a slim TN panel with LED backlighting.

Highlights

• 12.5-inch (31.8 cm) active matrix TFT LCD with WXGA resolution (1366 x 768)
• LED backlight for lower power consumption and consistent brightness
• Matte (anti-glare) surface reduces reflections in bright environments

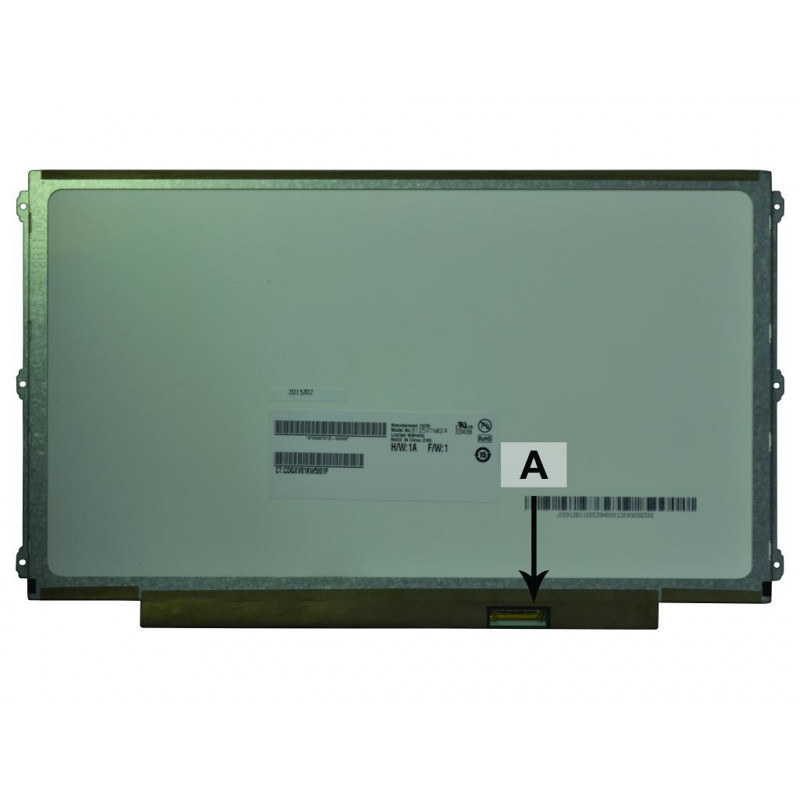

• 30-pin eDP connector positioned bottom right (viewed from back)
• TN panel with 60 Hz refresh rate and 8 ms typical response time
• 200 cd/m² typical brightness and 400:1 typical contrast ratio
• 45% NTSC colour gamut for accurate everyday colours
• 16:9 aspect ratio, ideal for widescreen productivity and media

In daily use

The 2P-Y2HM9 is engineered for straightforward installation and reliable performance. Its 30-pin eDP interface is common across many HP, Dell, Lenovo, and other laptops that use a 12.5-inch WXGA panel, but always verify your device's connector type and mounting position before ordering. The matte finish helps maintain visibility near windows or under office lighting, while the LED backlight offers a good balance between brightness and battery life. With a typical brightness of 200 cd/m², it performs best indoors; outdoor use in direct sunlight may be limited. The TN technology delivers fast pixel response for smooth cursor movement and video playback, though viewing angles are narrower than IPS alternatives—a trade-off that keeps the panel slim and affordable.

Full specifications

• Brand: 2-POWER
• Model: 2P-Y2HM9
• Display diagonal: 12.5 inches (31.8 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)
• Connector: 30-pin eDP
• Connector position: Bottom right (viewed from back)
• Refresh rate: 60 Hz
• Response time: 8 ms (typical)
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 400:1 (typical)
• Colour gamut: 45% NTSC (typical)
• Voltage: 3.3V
• Condition: New
• Compatibility: Universal for laptops requiring 12.5" WXGA 30-pin eDP panels (verify exact fit)

Final note

For a cost-effective screen replacement that matches the original specifications of many 12.5-inch laptops, the 2-POWER 2P-Y2HM9 offers a dependable solution with the convenience of a matte, LED-backlit TN panel.
