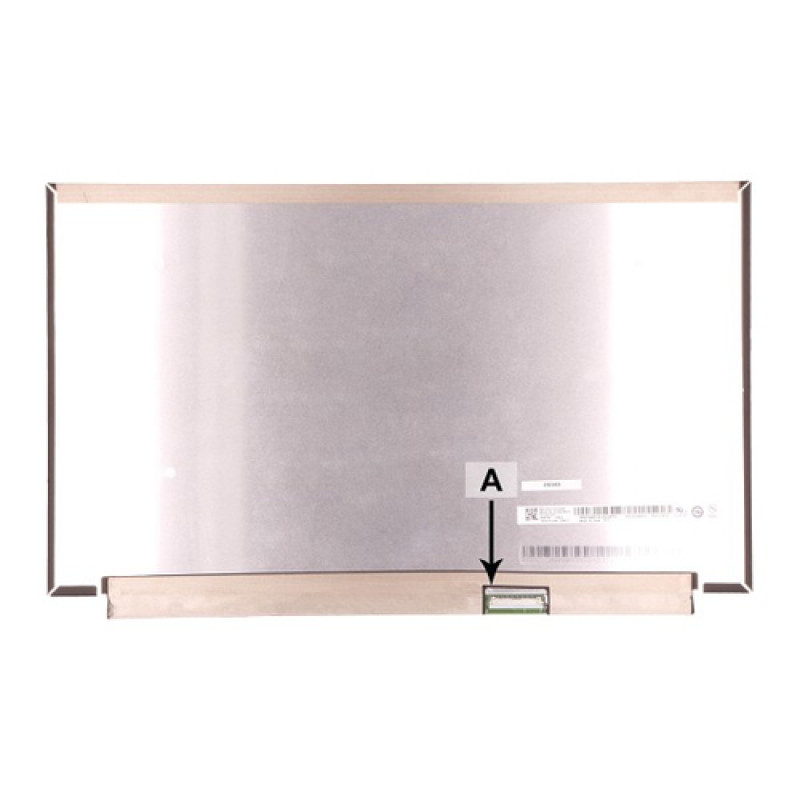

2-power LCD CSOT 15.6" UHD IPS 600nit (B156ZAN04.1 2A)

Upgrade a laptop display with this 15.6-inch UHD IPS panel, ideal for technicians refurbishing high-end notebooks or enthusiasts building portable monitors. The CSOT B156ZAN04.1 2A delivers crisp 3840x2160 resolution, 600-nit brightness, and 100% DCI-P3 color for vivid, accurate visuals in bright environments.

Key specifications

• 15.6-inch IPS panel with 3840 x 2160 (UHD) resolution
• 600 cd/m² brightness and anti-glare matte surface
• 100% DCI-P3 color gamut and 1200:1 contrast ratio
• 60 Hz refresh rate, 30 ms response time
• eDP 40-pin connector, 3.3V power interface
• 89/89/89/89 viewing angles
• Manufacturer: CSOT, Model: B156ZAN04.1, Revision: 2A

Why choose it

This panel offers exceptional color fidelity and high brightness, making it suitable for photo editing, video production, and outdoor use. Its standard eDP interface ensures compatibility with a wide range of laptop motherboards and driver boards. The anti-glare coating reduces reflections, improving usability in varied lighting conditions.

Ideal use cases

• Replacing a damaged or faulty laptop screen
• Upgrading an existing display to UHD resolution
• Building a portable monitor with a compatible controller board
• DIY projects requiring a high-quality 15.6-inch panel

Good to know

The panel is a bare LCD without mounting brackets or cables; professional installation is recommended. Verify connector orientation and pin count before ordering. The 600-nit brightness exceeds typical laptop panels, providing excellent visibility even in direct sunlight.
