2-tie-kaiutin Vision SP-900P 30 W

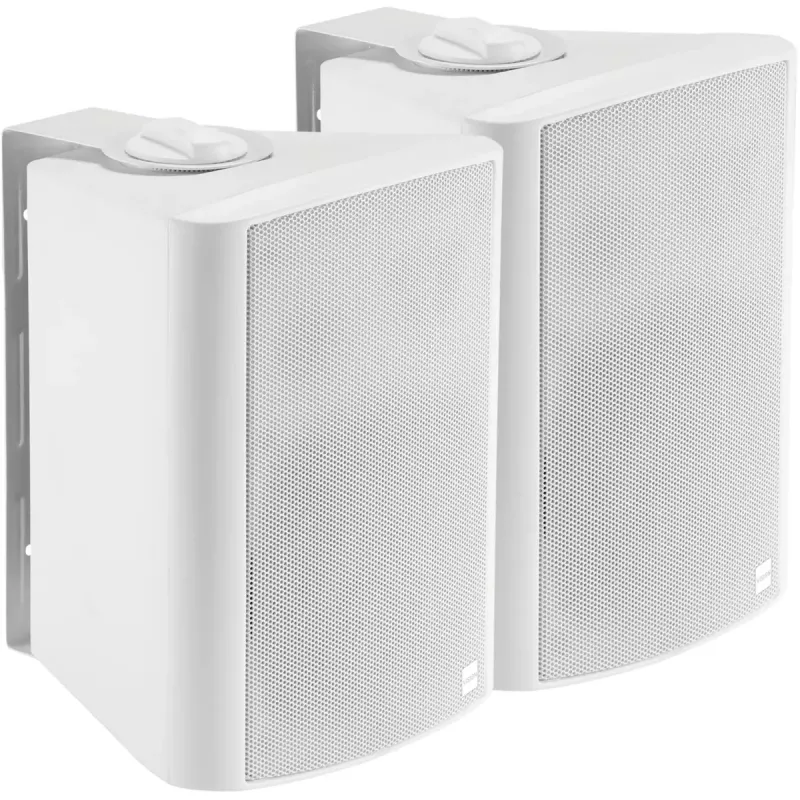

The Vision SP-900P is a 2-way wired loudspeaker with a 30 W RMS rating, designed for small meeting rooms and classrooms. It combines a 5.25" woofer with a Mylar dome tweeter in an ABS chassis and uses a bass-reflex port to extend low-frequency output. The master unit contains the amplifier, rear-panel volume control and power switch, and offers multiple inputs for flexible connectivity.

Advantages

The speaker delivers clear, evenly dispersed sound across the room thanks to the wide-dispersion Mylar dome tweeter and the 2-way configuration. A bass-reflex port enhances low-frequency response while the rigid ABS enclosure reduces distortion. Wall brackets allow easy side-to-side and downward tilt mounting, and the unit can alternatively be used as a shelf speaker. Multiple rear-panel inputs (3.5 mm minijack and 2× RCA) simplify connections for different source devices.

Suitable for

• Small meeting rooms and conference spaces
• Classrooms and training rooms
• Reception areas and small public spaces
• Desktop or shelf use for background or speech reinforcement

Key specifications

• Type: 2-way wired loudspeaker
• Rated power: 30 W RMS
• Frequency response: 50–20,000 Hz
• Impedance: 8 Ω
• Sensitivity: 101 dB

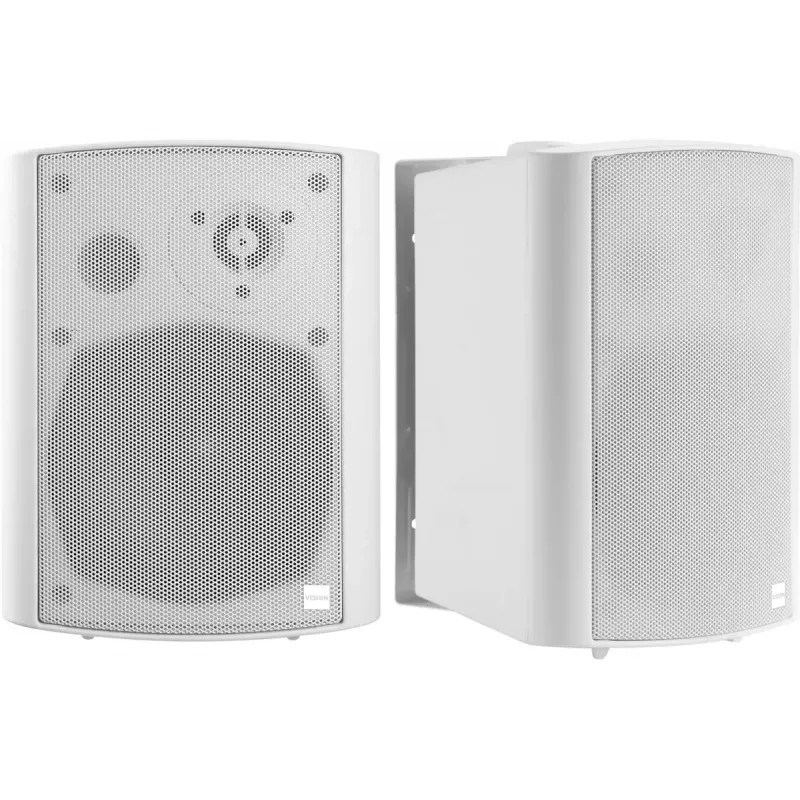

• Drivers: 5.25" woofer + Mylar dome tweeter
• Inputs: 3.5 mm minijack and 2× RCA (summed at input stage)
• Colour: White
• Chassis: ABS with bass-reflex port

How to use

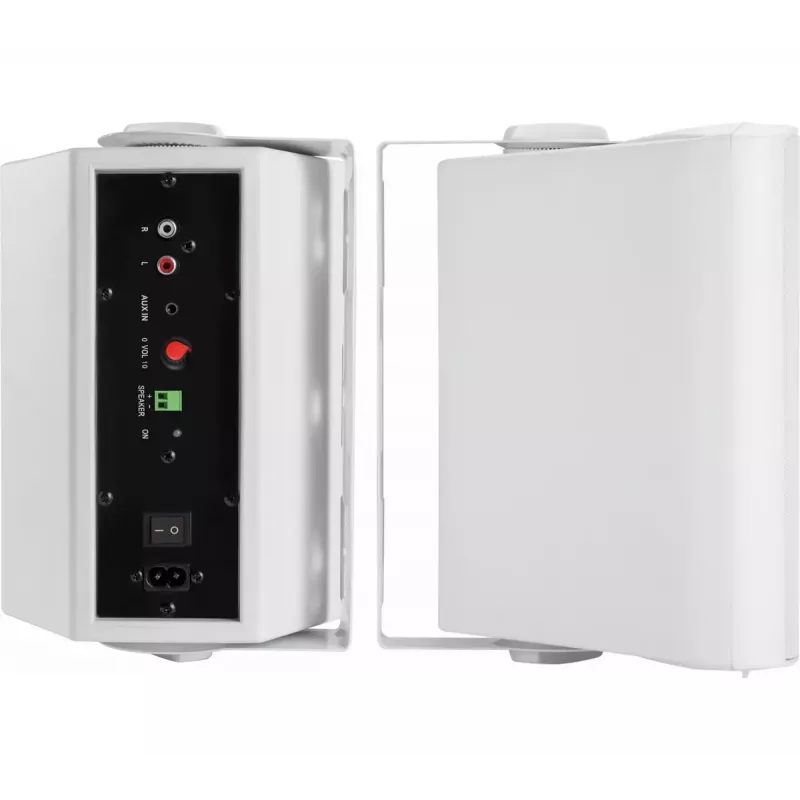

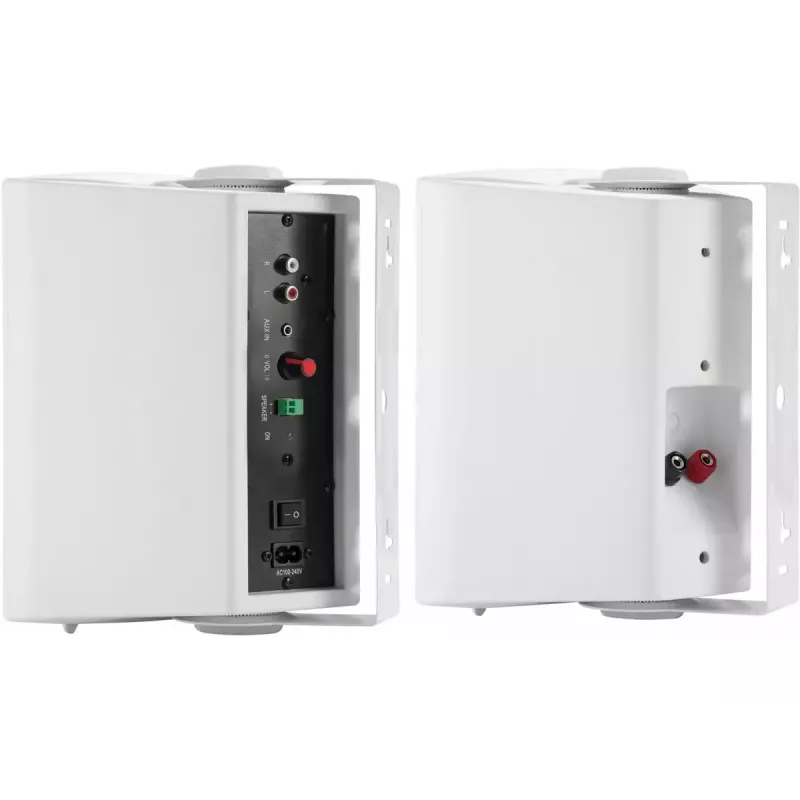

Connect source devices to the master loudspeaker using the 3.5 mm minijack or RCA inputs; both inputs are summed at the input stage so no input selector is provided. Ensure connected source and display devices share the same mains earth to avoid hum. Use the rear-panel power switch to turn the unit on or off and adjust volume with the rear volume dial on the master speaker. Mount the speakers using the supplied wall brackets for tilt adjustment or place them on a shelf; the dome tweeter allows the speaker to be mounted on its side for downward tilt.

Recommendations

For best results in small rooms, position the speakers so the tweeters face the listening area and avoid placing them directly in corners. When using multiple source devices, power them from the same mains outlet to prevent earth loop hum.
