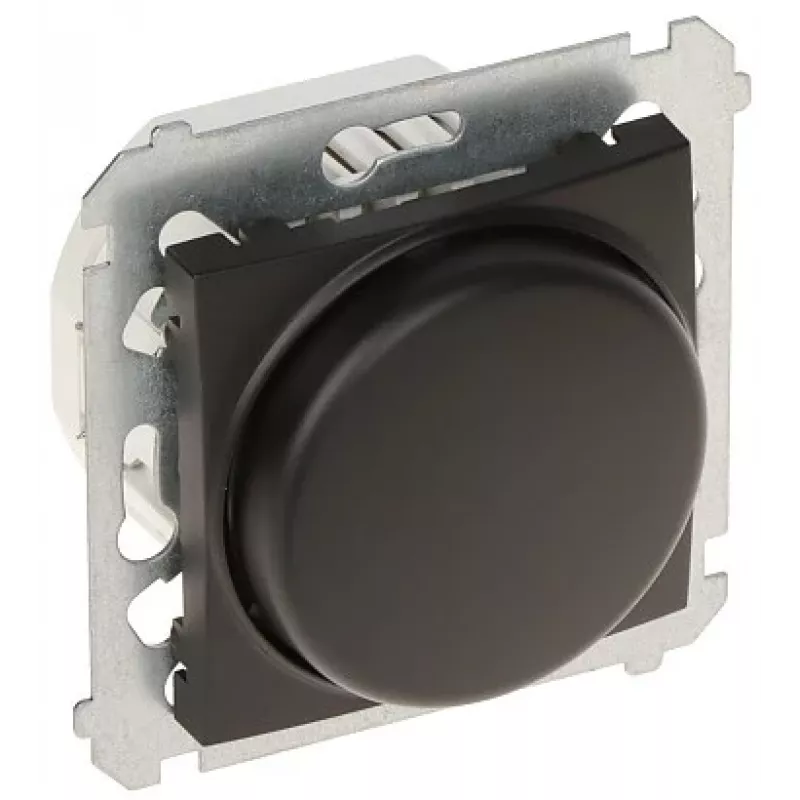

230V LED-kierrosdimmer-moduuli DS9L.01/49

The 230V LED rotary dimmer module DS9L.01/49 is a flush-mounted dimming solution designed for controlling dimmable LED, incandescent, and halogen lamps. It supports both trailing edge (RC) for LEDs and leading edge (RL) for incandescent/halogen loads, ensuring compatibility with a wide range of lighting fixtures.

Advantages

This dimmer module offers overload, short-circuit, and over-temperature protection for safe operation. The soft start function extends lamp life, while the memory function retains the last dimming level. Its compact flush-mount design fits standard Ø60mm wall boxes, making it ideal for new installations or retrofits.

Suitable for

• Dimmable LED lamps (230V)
• Incandescent lamps
• Halogen lamps (230V and low-voltage with electronic transformers)
• Residential and commercial lighting control

Key specifications

• Input Voltage: 230V AC, 50 Hz
• Max. LED Load: 100W, Min. LED Load: 3W
• Max. Incandescent/Halogen Load: 300W, Min. Incandescent/Halogen Load: 10W
• Dimming Principle: Trailing Edge (RC) for LED, Leading Edge (RL) for Incandescent/Halogen
• Control Type: Rotary (external knob required)
• Installation: Flush-mounted module (fits Ø60mm wall boxes)
• Protection: Overload, Short-circuit, Over-temperature
• Soft Start & Memory Function
• Operating Temperature: 0°C to +40°C
• Housing Material: Thermoplastic, Color: White
• Number of Channels: 1, Dimming Range: 0-100%
• Certifications: CE
• Connection: Screw terminals

Recommendations

For optimal performance, use only with dimmable LED lamps. Ensure proper ventilation and do not exceed the maximum load ratings. The module requires an external rotary knob (not included).
