2N Access Unit 2.0 Bluetooth- ja RFID-lukija, musta

The 2N Access Unit 2.0 stands apart from ordinary readers by combining Bluetooth mobile credentials with dual-frequency RFID in a single, vandal-resistant unit. It eliminates the need for separate readers for legacy cards and modern smartphones, streamlining access control at every door.

Highlights

• Reads Bluetooth (BLE) mobile keys and RFID cards (125 kHz EM4100/HID Prox and 13.56 MHz MIFARE/DESFire/NFC)
• IP54 weather resistance and IK07 vandal resistance for reliable outdoor or high-traffic use
• Power over Ethernet (PoE 802.3af) or 12V DC supply with Ethernet and Wiegand interfaces
• OSDP secured communication and Linux-based firmware for robust security
• Integrated web interface and 2N Access Commander management

In daily use

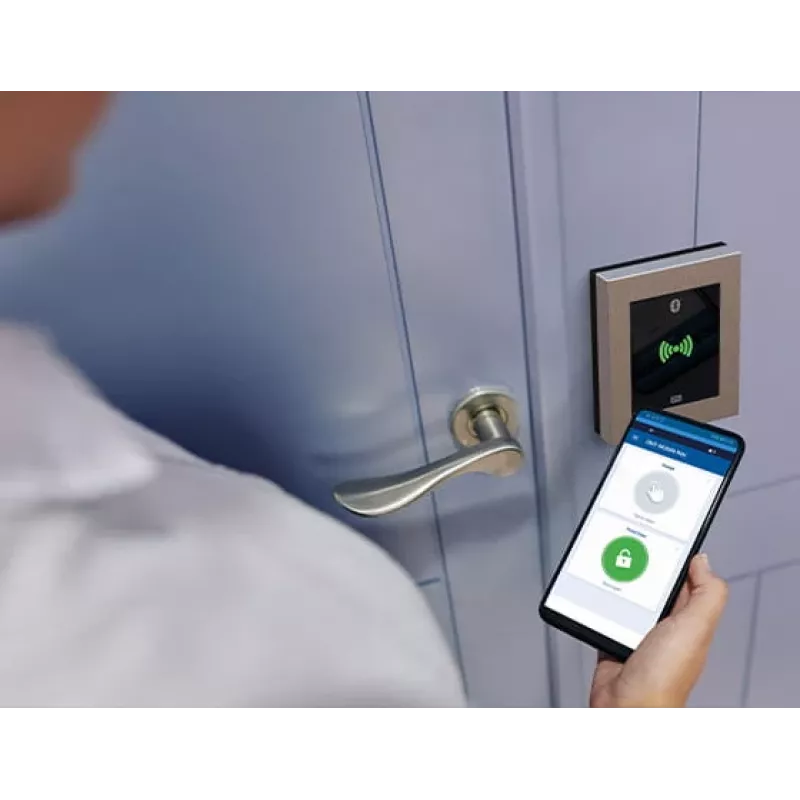

Mount the reader at entrances where users may carry either traditional RFID badges or smartphones. Employees simply present their 2N Mobile Key via Bluetooth, while visitors or legacy cardholders use their existing 125 kHz or 13.56 MHz credentials. The relay output can directly control a door lock, and two digital inputs allow connection of exit buttons or door sensors. Configuration is straightforward via the built-in web server, and the unit integrates seamlessly into larger systems using Wiegand or OSDP.

Full specifications

• Brand: 2N
• Model: Access Unit 2.0
• MPN: 9160345-S
• EAN: 8595159515144
• Type: Access control reader
• Reading technologies: Bluetooth (BLE), RFID 125 kHz, RFID 13.56 MHz
• Supported RFID standards: EM4100, HID Prox, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, FeliCa, PIV, NFC
• Communication interfaces: Ethernet 10/100Base-T, Wiegand In/Out
• Power supply: PoE IEEE 802.3af or 12V DC / 2A
• Operating temperature: -40°C to +60°C
• Ingress protection: IP54
• Vandal resistance: IK07
• Operating system: Linux
• Security: OSDP, Secured RFID
• Inputs/Outputs: 2x digital inputs, 1x relay output (NO/NC)
• Management: Web interface, 2N Access Commander
• Mounting: Surface mount
• Colour: Black

Final note

For a future-proof access solution that bridges legacy cards and mobile credentials without compromising durability, the 2N Access Unit 2.0 delivers dependable performance in any environment.
