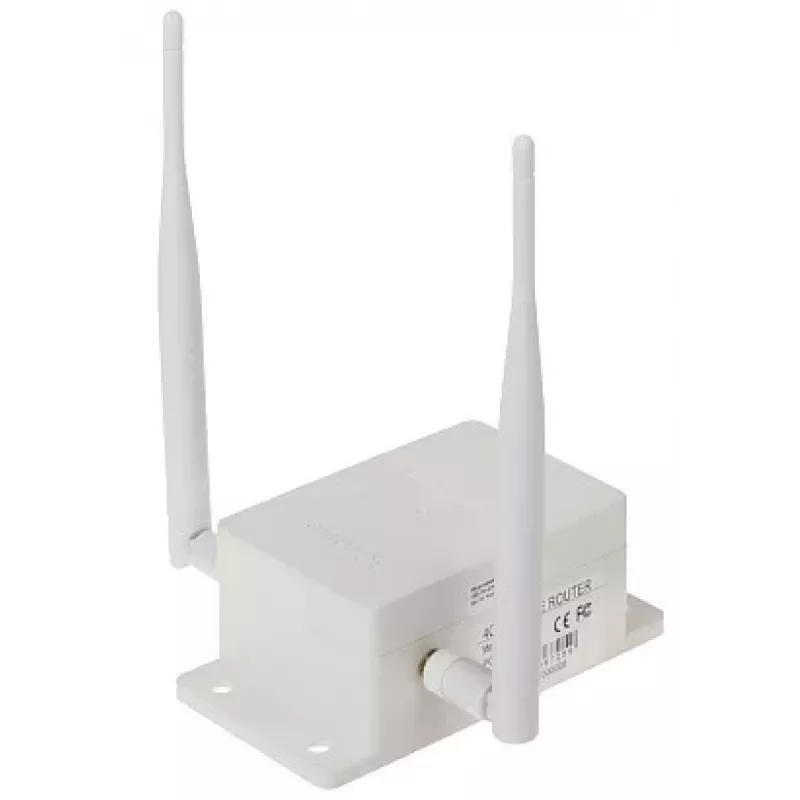

4G LTE -tukiasema + reititin ATE-G1CH 150Mb/s

The 4G LTE Access Point + Router ATE-G1CH is a versatile networking device that combines high-speed 4G LTE connectivity with reliable Wi-Fi routing. Ideal for remote locations, temporary setups, or as a backup internet solution, it delivers download speeds up to 150 Mbps and supports multiple operating modes including 4G router, wireless router, and access point.

Advantages

With dual external detachable 4G LTE antennas and an internal Wi-Fi antenna, this device ensures strong signal reception and stable connections. It supports 4G LTE Cat4 with fallback to 3G WCDMA, covering a wide range of frequency bands for global compatibility. The integrated security features including WPA/WPA2-PSK, MAC filtering, and firewall provide a secure network environment.

Suitable for

• Home and small office internet access in areas with limited wired broadband
• Remote monitoring and surveillance systems
• Temporary event or construction site connectivity
• Backup internet connection for critical operations

Key specifications

• Network Technology: 4G LTE Cat4, 3G WCDMA
• Wi-Fi Standard: IEEE 802.11b/g/n (Wi-Fi 4)
• Wi-Fi Speed: 150 Mbps (2.4 GHz)
• LTE Download Speed: Up to 150 Mbps
• LTE Upload Speed: Up to 50 Mbps
• LTE FDD Bands: B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
• LTE TDD Bands: B38/B40/B41 (2600/2300/2500 MHz)
• 3G WCDMA Bands: B1/B8 (2100/900 MHz)
• Ethernet Ports: 1x 10/100Mbps LAN, 1x 10/100Mbps WAN/LAN
• SIM Card Slot: 1x Standard SIM (2FF)
• Antennas: 2x External Detachable 4G LTE Antennas, Internal Wi-Fi Antenna
• Operating Modes: 4G Router, Wireless Router, Access Point
• Security: WPA/WPA2-PSK, WPA/WPA2, MAC Filtering, IP Filtering, Firewall
• Power Supply: DC 12V / 1A
• Management: Web UI, SMS Management
• LED Indicators: Power, Wi-Fi, LAN, WAN, 4G Signal Strength
• Buttons: Power, Reset, WPS

Recommendations

For optimal performance, place the device in a location with strong cellular signal and use the external antennas to improve reception. Ensure your SIM card is activated for data services and check compatibility with your carrier's LTE bands.
