ABB Busch-balance SI pinta-asennusrasia, 1-osainen, studiovalkoinen 2TKA00005514

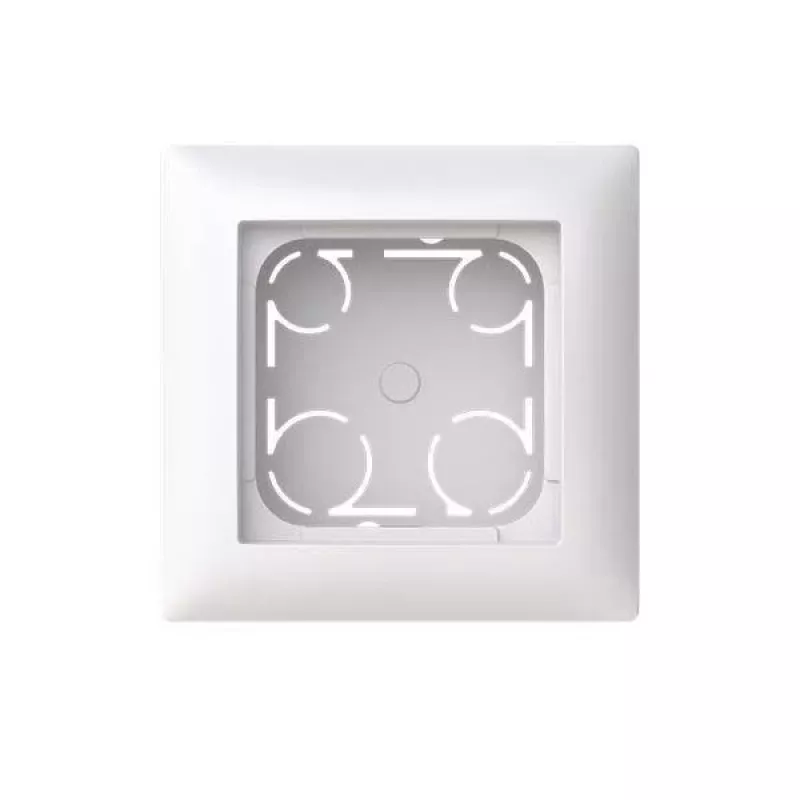

When a flush-mounted installation is not possible, you need a surface-mounted housing that matches the design of your switches and sockets. The ABB Busch-balance SI surface-mounted housing provides a clean, flat solution for mounting standard Busch-Jaeger inserts on walls, in Studio White to blend with the Busch-balance SI range.

Who is it for

Electricians and installers who need a reliable, halogen-free surface-mounted housing for 1-gang inserts in residential or commercial settings.

Main features

• 1-gang surface-mounted housing for standard Busch-Jaeger inserts
• Flat design, part of the Busch-balance SI line
• Made of halogen-free thermoplastic
• Pre-punched knock-outs for cable entry
• Color: Studio White

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 1
• Design line: Busch-balance SI
• Mounting type: Surface mounting
• Material: Thermoplastic
• Color: Studio White
• Halogen-free: Yes
• Impact resistance: IK05
• Flammability rating: UL94 V-2
• Operating temperature range: -5 to +45 °C
• Internal depth: Approx. 24 mm
• With cover: Yes
• Transparent cover: No

Tips

Pair this housing with Busch-balance SI inserts for a consistent look. The pre-punched knock-outs allow for flexible cable routing.
