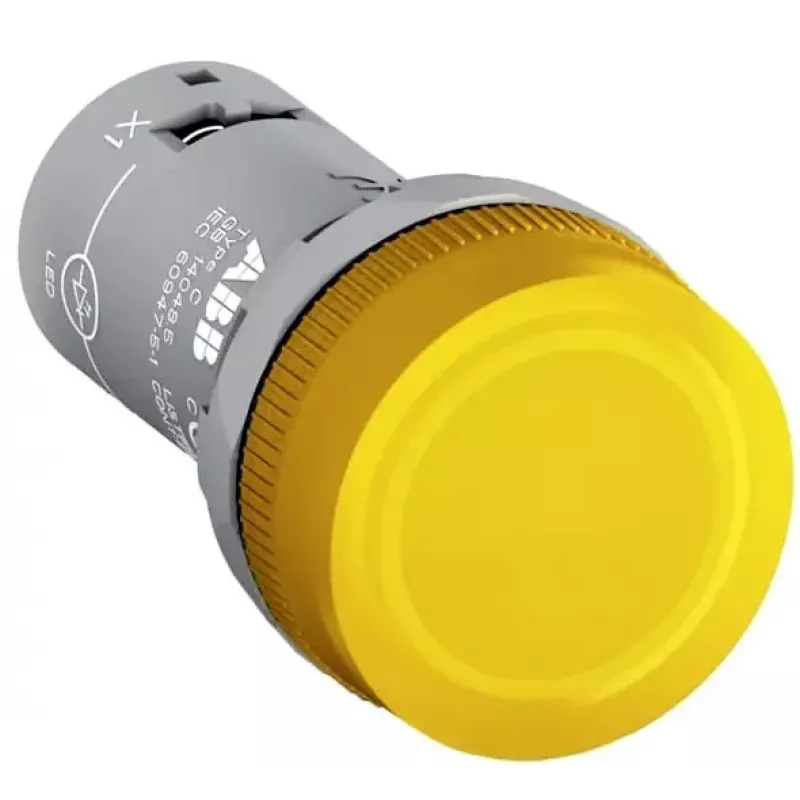

ABB CL2-502Y keltainen LED-merkkivalo 24V AC/DC, 22mm 1SFA619403R5023

The ABB CL2-502Y is a compact LED indicator light from the CL2 series, offering bright yellow illumination for status signaling in industrial control panels. Its 22mm mounting diameter and screw terminals ensure easy installation and reliable connection.

Advantages

LED technology provides long service life up to 100,000 hours, reducing maintenance. The front bezel is rated IP66, protecting against dust and water jets, while the flat lens ensures clear visibility. Low power consumption of 0.015 W makes it energy-efficient.

Suitable for

• Industrial control panels and machinery status indication
• Applications requiring 24V AC/DC operation
• Environments needing front protection against dust and water

Key specifications

• Light source: LED
• Light colour: Yellow
• Operating voltage: 24 V AC/DC
• Mounting diameter: 22 mm
• Front protection: IP66
• Terminal protection: IP20
• Terminal type: Screw terminals
• Power consumption: 0.015 W
• Current consumption: 6 mA
• Operating temperature: -25 to +70 °C
• Electrical durability: 100,000 hours
• Bezel material: Plastic

Recommendations

Ideal for panel builders seeking a reliable, low-maintenance indicator light with clear yellow indication and robust front protection.
