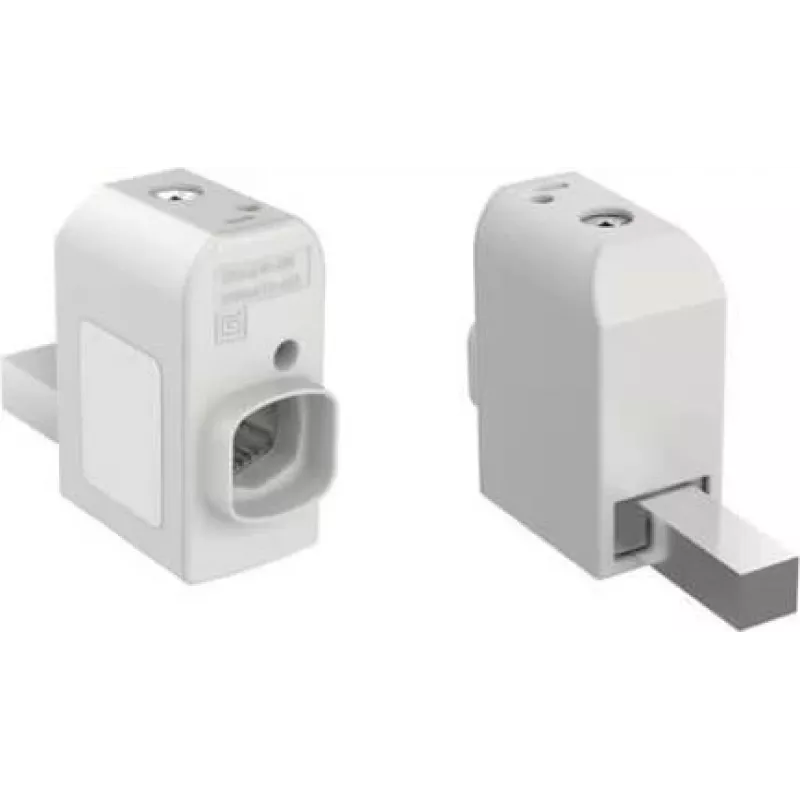

ABB liitäntäsarja OZXT9516 Tmax XT3/XT4 - 230A Cu / 180A Al, 95mm², 1-napainen

Terminal set for ABB SACE Tmax XT3 and XT4 circuit breakers, engineered for high-current input/output connections. This set handles up to 230 A with copper conductors and 180 A with aluminum, accepting conductors up to 95 mm². The screw terminal design ensures a secure, low-resistance connection, while the tinned copper/brass construction and polyamide insulation provide durability and safety in industrial environments.

Advantages

Robust screw terminals deliver reliable clamping force for both copper and aluminum conductors, minimizing maintenance. The polyamide housing offers excellent electrical insulation and resistance to heat and impact. Rated for operation from -25°C to +70°C, this terminal set is suitable for demanding applications. Its direct mounting to the breaker terminals simplifies installation and reduces wiring time.

Suitable for

• ABB SACE Tmax XT3 circuit breakers
• ABB SACE Tmax XT4 circuit breakers
• Copper conductors up to 95 mm²
• Aluminum conductors up to 95 mm²
• Industrial power distribution and motor control centers

Key specifications

• Rated current: 230 A (Cu) / 180 A (Al)
• Max conductor cross-section: 95 mm² (Cu and Al)
• Connection type: Screw terminal
• Number of poles per set: 1
• Terminal material: Tinned copper / brass
• Insulation material: Polyamide
• Operating temperature: -25°C to +70°C
• Compliance: IEC standards

Recommendations

For optimal performance, use with ABB Tmax XT3 or XT4 breakers in applications where high current capacity and mixed conductor compatibility are required. Ensure proper torque settings during installation to maintain connection integrity.
