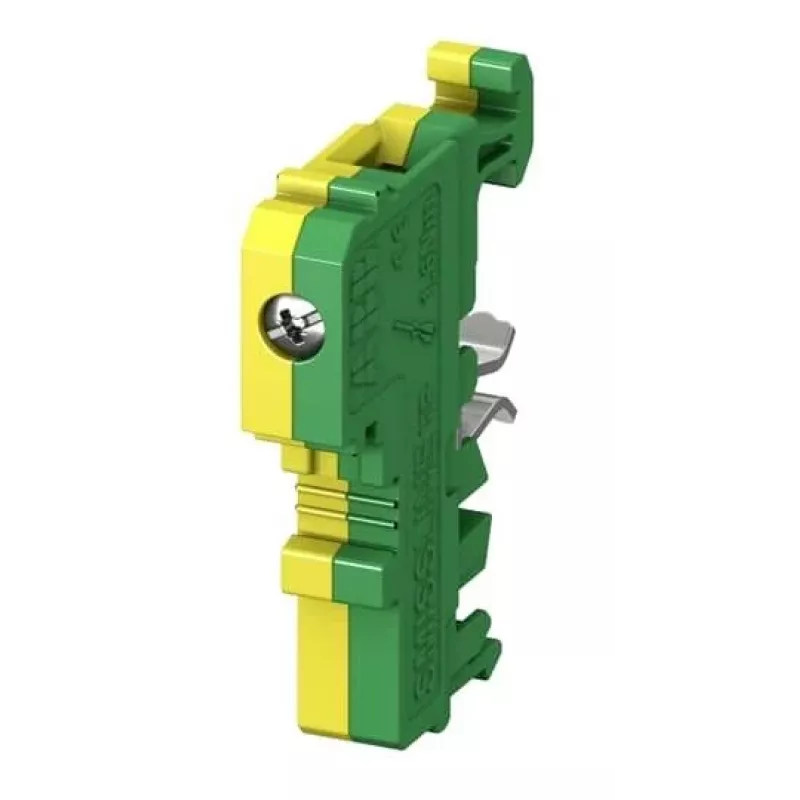

ABB SMISSLINE TP suojamaaliitin 10 mm² ruuviliitin vihreä-keltainen ZLS919 (2CCA183441R0001)

In SMISSLINE TP distribution boards, a secure protective earth connection is essential for safety and compliance. This ABB terminal block provides a reliable PE connection point for conductors up to 10 mm², plugging directly onto the busbar without tools.

Who is it for

Electrical installers and panel builders working with ABB SMISSLINE TP systems who need a fast, secure earthing solution for distribution circuits.

Main features

• Protective earth (PE) function for SMISSLINE TP busbar
• Screw clamp connection for conductor cross-section up to 10 mm²
• Tool-free pluggable mounting onto busbar
• Green-yellow colour coding for instant identification
• Rated current 63 A, rated voltage 400 V AC

Specifications

• Product type: Terminal block
• Terminal function: Protective Earth (PE)
• System type: SMISSLINE TP
• Connection type: Screw clamp
• Rated conductor cross-section: 10 mm²
• Number of connections: 1
• Number of poles: 1
• Mounting method: Pluggable onto SMISSLINE TP busbar
• Colour: Green-yellow
• Rated voltage: 400 V AC
• Rated current: 63 A
• Pollution degree: 3
• Degree of protection: IP20
• Housing material: Polyamide
• Conductive material: Copper alloy
• Tightening torque: 1.2 Nm
• Wire stripping length: 12 mm
• Compatibility: ABB SMISSLINE TP busbar system

Tips

Ensure the busbar is de-energised before plugging or unplugging the terminal. Use the specified stripping length and torque for a reliable connection.
