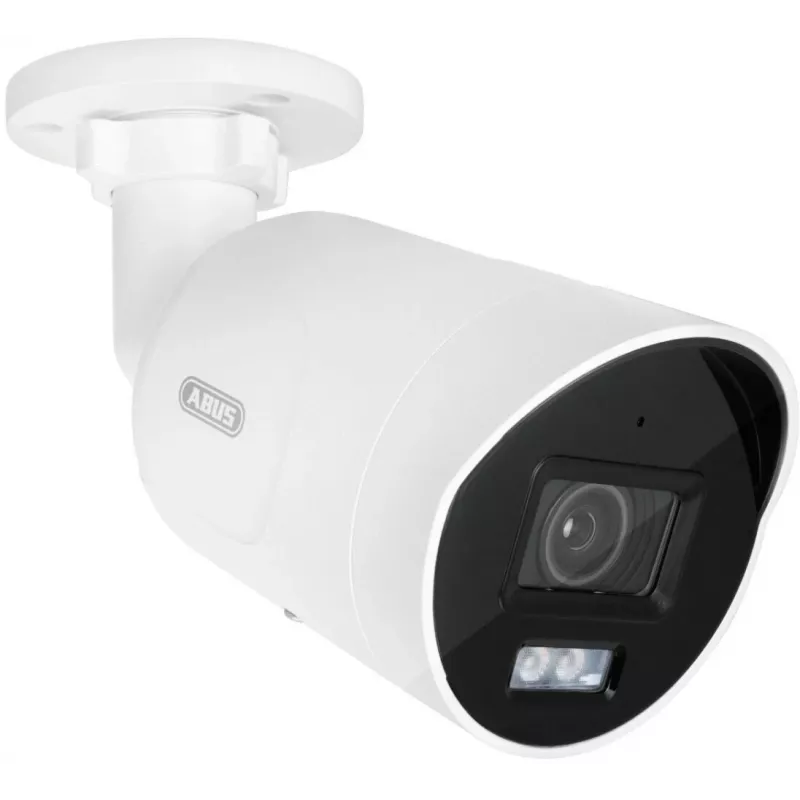

ABUS 4 MP IP-miniputkikamera 4 mm objektiivilla, IR ja valkoinen valo

Compact yet rugged, the ABUS 4 MP IP Mini Tube Camera delivers crisp 2560 x 1440 video in a discreet cylindrical housing that shrugs off weather and vandals alike. Its 4 mm fixed lens frames a wide 84° scene, while dual IR and white-light illumination keeps details visible day and night up to 30 metres. Built for professional installs, it pairs PoE simplicity with 120 dB WDR and a built-in microphone, so you capture both clear images and sound without extra cabling.

Highlights

• 4 MP resolution (2560 x 1440) for sharp, detailed footage
• Fixed 4 mm lens with F1.6 aperture and approx. 84° horizontal field of view
• IR and white-light illumination up to 30 m night vision range
• IP67 weatherproof and IK10 vandal-resistant metal housing
• Power over Ethernet (802.3af) or 12 V DC for flexible installation
• Built-in microphone and microSD slot (up to 256 GB) for local recording
• H.265, H.264, and MJPEG compression with ONVIF Profile S/G/T support

In daily use

Mount the camera under an eave or on a wall and let its 84° view cover entrances, corridors, or loading areas. When motion triggers the white light, colour detail is preserved even at night, while the IR mode provides covert monochrome surveillance. The 120 dB WDR balances bright backlight and deep shadows, so faces and licence plates remain readable. With PoE, a single network cable carries both data and power, simplifying installation in hard-to-reach spots. The built-in microphone adds an extra layer of situational awareness, and local recording to a microSD card ensures footage is captured even if the network drops.

Full specifications

• Sensor: 1/3" Progressive Scan CMOS
• Max resolution: 2560 x 1440 (4 MP)
• Lens: 4 mm fixed, F1.6, horizontal field of view approx. 84°
• Night vision: IR and white light, up to 30 m
• Video compression: H.265, H.264, MJPEG
• Frame rate: up to 25/30 fps at 4 MP
• Wide Dynamic Range: 120 dB
• Audio: built-in microphone
• Local storage: microSD card slot (up to 256 GB)
• Network: 1x RJ45 10/100 Mbps Ethernet
• Power: PoE IEEE 802.3af Class 3 or 12 V DC, max 6.5 W
• Ingress protection: IP67
• Vandal resistance: IK10
• Operating temperature: -30 °C to +60 °C
• ONVIF: Profile S/G/T

Final note

For installers and integrators who need a dependable, low-profile surveillance camera that performs in tough conditions, the ABUS 4 MP IP Mini Tube Camera is a solid choice that balances image quality, durability, and ease of deployment.
