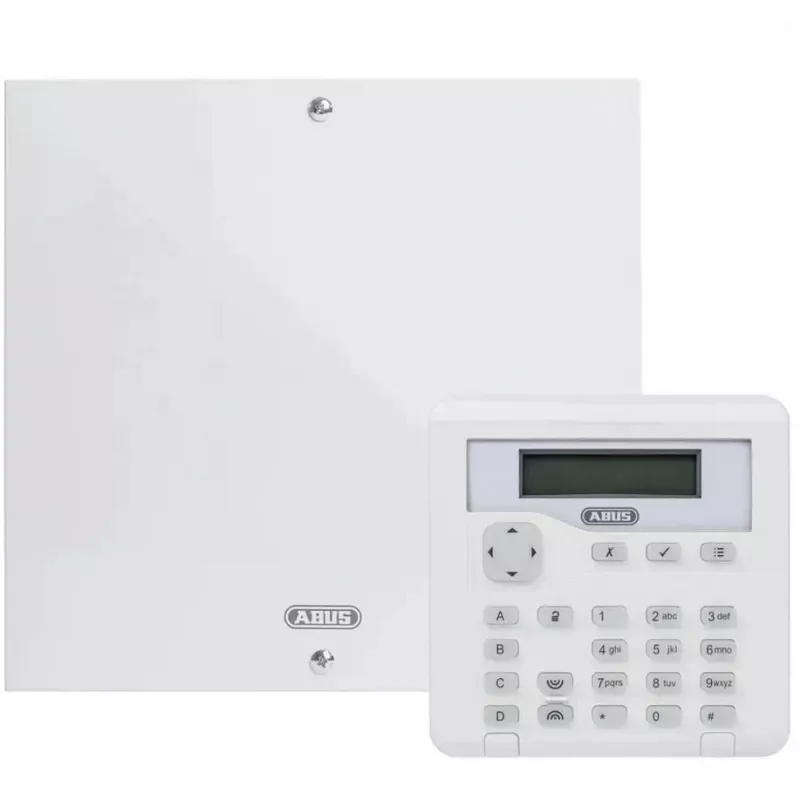

ABUS SECURITY-CENTER Terxon SX langallinen hälytyskeskus (AZAA10000)

Securing a home or small business against intrusion demands a dependable alarm system that can manage multiple zones and alert you when something is wrong. The ABUS Terxon SX wired alarm control panel is built for exactly that—it provides a robust foundation for a professional security installation, combining flexible zone management with straightforward operation.

Who is it for

This control panel is ideal for homeowners and small business owners who want a wired security system with room to grow. It suits installers and advanced DIYers who prefer the reliability of wired sensors and need a panel that supports partitioning, multiple user codes, and expansion options.

Main features

• 8 wired zones on board, expandable to 32 zones with additional modules
• Supports up to 3 independent partitions for arming different areas separately
• 32 user codes allow individual access for family members or staff
• Integrated PSTN dialer sends alarm notifications via telephone line
• 3 programmable outputs (PGMs) for controlling external devices
• Dedicated 12V DC siren output with tamper-protected housing
• Compatible with up to 4 keypads for convenient operation at multiple locations
• VdS Home certified and EN 50131 Grade 2 compliant for reliable security

Specifications

• System type: Wired alarm control panel
• Number of zones: 8 (expandable to 32)
• Number of partitions: 3
• Max user codes: 32
• Event log capacity: 256 events
• Integrated dialer: PSTN (telephone line)
• Programmable outputs (PGMs): 3
• Siren output: 1 (12V DC)
• Power supply input: 230V AC
• Auxiliary power output: 12V DC, 1A
• Battery backup support: Yes (12V 7Ah lead-acid battery, not included)
• Max keypads supported: 4
• Housing material: Plastic
• Certifications: VdS Home (G100001), EN 50131 Grade 2
• Operating temperature: -10°C to +55°C
• Programming method: Keypad or PC software
• Expansion modules supported: GSM, IP, zone expanders
• Tamper protection: Housing tamper
• Installation: Wall mount

Tips

For a complete system, pair the Terxon SX with wired magnetic contacts, motion detectors, and a suitable backup battery. If you need remote access or mobile notifications, add a compatible GSM or IP module. Always test the system after installation and register the panel with a monitoring service if professional alarm response is required.
