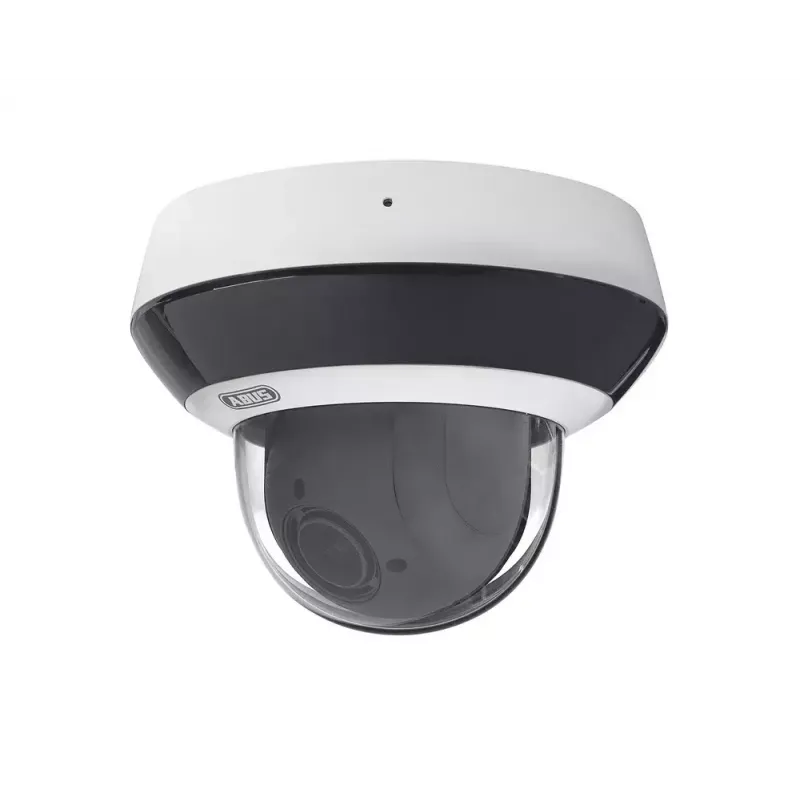

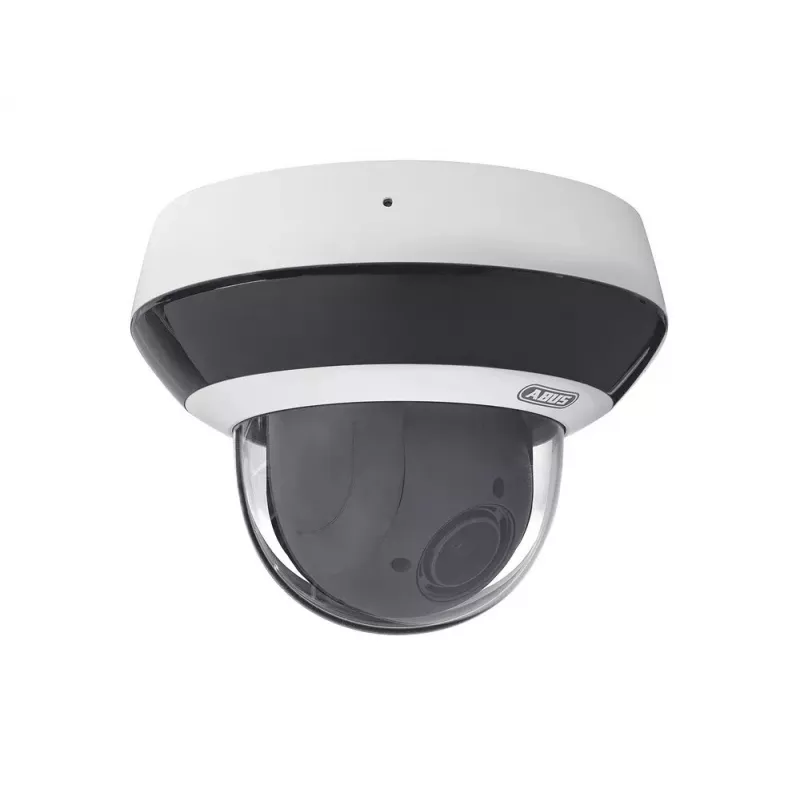

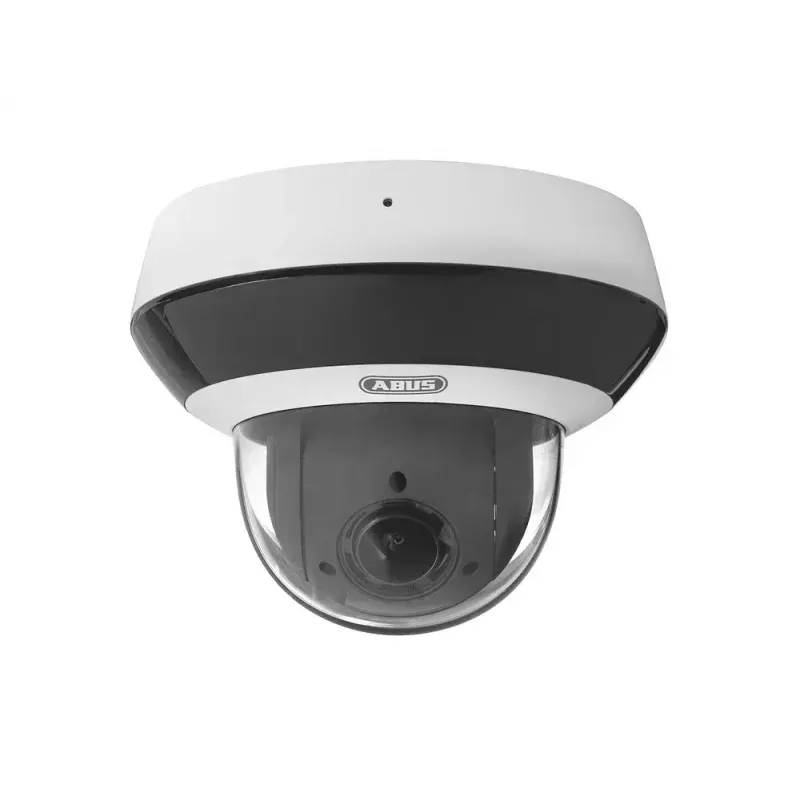

ABUS TVIP82561 IP-valvontakamera sisäkäyttöön 1920x1080 johdollinen kupoli

The ABUS TVIP82561 Indoor 1920x1080 Wired Dome is a fixed-mount IP security camera designed for indoor surveillance. It captures full HD 1920x1080 video using a CMOS sensor and a varifocal lens with a focal length range of 2.8–12 mm, enabling adjustment between wider and narrower fields of view. The camera supports wired network connectivity and provides low-light performance down to 0.005 lux for monitoring in dim environments. Its dome housing offers a compact profile suitable for ceiling or wall mounting in offices, retail premises, and residential common areas.

Advantages

The camera delivers full HD resolution for detailed image capture and uses a varifocal lens to adapt framing to different monitoring distances without changing the device. Low minimum illumination improves visibility in low-light scenes while the dome form factor reduces visual obstruction and simplifies installation on ceilings or walls. Wired connectivity provides a stable network link for continuous recording and live viewing.

Suitable for (tasks / use cases)

• Indoor office surveillance and monitoring of workspaces
• Retail floor and checkout area monitoring
• Common corridors, lobbies and stairwell observation
• Small business security and inventory oversight
• Reception desks and entrance monitoring

Key specifications

• Image sensor type: CMOS
• Maximum resolution: 1920 x 1080 (Full HD)
• Lens: varifocal 2.8–12 mm
• Minimum illumination: 0.005 lux
• Horizontal field of view: approx. 33°–101°
• Vertical field of view: approx. 18°–53°
• Form factor: indoor dome
• Connectivity: wired network (Ethernet)

How to use

Mount the dome camera on a flat ceiling or wall surface using appropriate screws and anchors for the installation material. Adjust the varifocal lens to the desired focal length, framing the scene to cover the required area before tightening the lens lock. Connect the camera to the local network via an Ethernet cable to provide power and data if Power over Ethernet (PoE) is supported by the installation; otherwise use the recommended power adapter. Configure IP settings and any recording or motion detection parameters through the camera’s web interface or compatible network video recorder (NVR).

Recommendations

Position the camera to avoid direct pointing at strong light sources and to maximise coverage of entrances or high-traffic areas. Use the varifocal lens to set an appropriate balance between field of view and detail — wider settings for general area monitoring, longer focal lengths for face or object identification. Ensure regular firmware updates and secure network configuration to maintain reliable operation.
