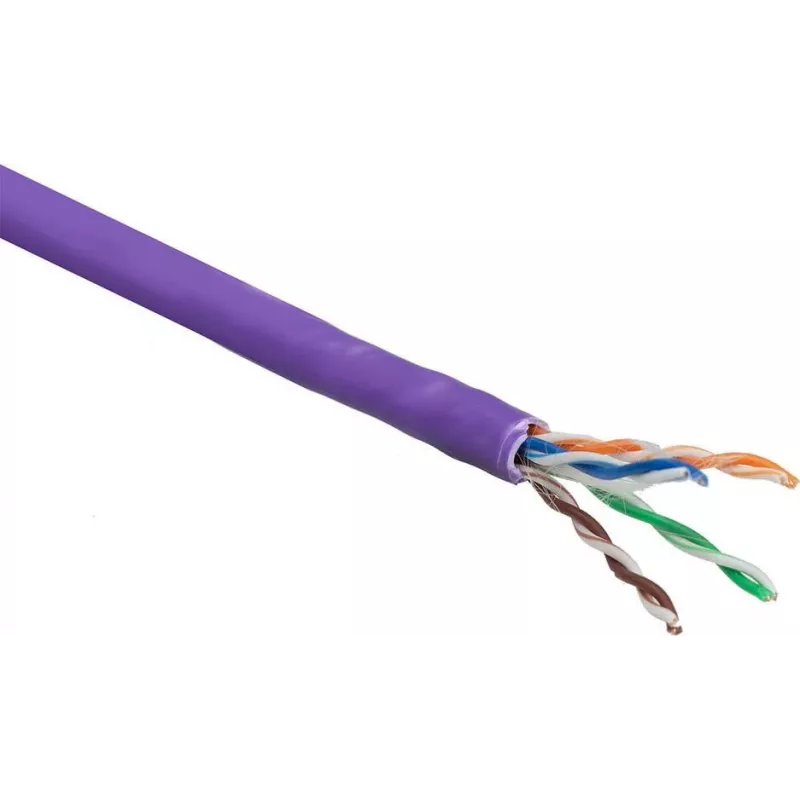

ACT Cat 6 U/UTP massiivi asennuskaapeli, LSZH, CPR Dca, 24AWG, violetti, 305m (XS6003)

Running high-speed network cabling through walls, ceilings, and conduits demands a cable that won't degrade signal over distance or release toxic smoke in a fire. The ACT XS6003 is a Cat 6 U/UTP solid installation cable built exactly for that job. Its solid bare copper conductors and 24 AWG gauge keep insertion loss low and headroom high across the full 250 MHz bandwidth, so Gigabit Ethernet stays rock-solid even on long permanent links. The violet LSZH jacket makes it easy to identify in crowded cable trays while meeting CPR Euroclass Dca for low smoke and zero halogen emissions.

Who is it for

Professional installers, IT technicians, and facility managers who need a dependable horizontal cabling solution for offices, schools, hospitals, and industrial buildings. If you're pulling cable through risers, under floors, or behind walls and terminating into patch panels or keystone jacks, this reel-in-box format keeps the cable tangle-free and easy to feed.

Main features

• Cat 6 U/UTP construction with 4 solid bare copper pairs, 24 AWG
• LSZH (Low Smoke Zero Halogen) jacket, CPR Euroclass Dca
• Supports Gigabit Ethernet (1000 Mbps) up to 100 meters, 250 MHz bandwidth
• Violet jacket for quick identification and clean cable management
• 305-meter reel-in-box for convenient pulling and storage
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

Specifications

• Cable type: Cat 6 U/UTP (unshielded twisted pair)
• Conductor: Solid bare copper, 24 AWG, 4 pairs
• Jacket: LSZH, violet
• CPR Euroclass: Dca
• Length: 305 m
• Bandwidth: 250 MHz
• Data rate: up to 1 Gbps
• Impedance: 100 Ohm
• Outer diameter: ~6.2 mm
• Operating temperature: -20°C to +60°C
• Flame retardancy: IEC 60332-1
• Packaging: reel-in-box

Tips

When pulling this cable, respect the minimum bend radius of 4x the outer diameter to avoid damaging the pairs. For permanent links, keep the total length under 90 meters of solid cable plus 10 meters of stranded patch cords to stay within Cat 6 limits. Use LSZH-compatible cable ties and avoid PVC conduit that could compromise the low-smoke rating.
