ACT vihreä 5 metrin U/UTP CAT6 patch-kaapeli RJ45-liittimillä

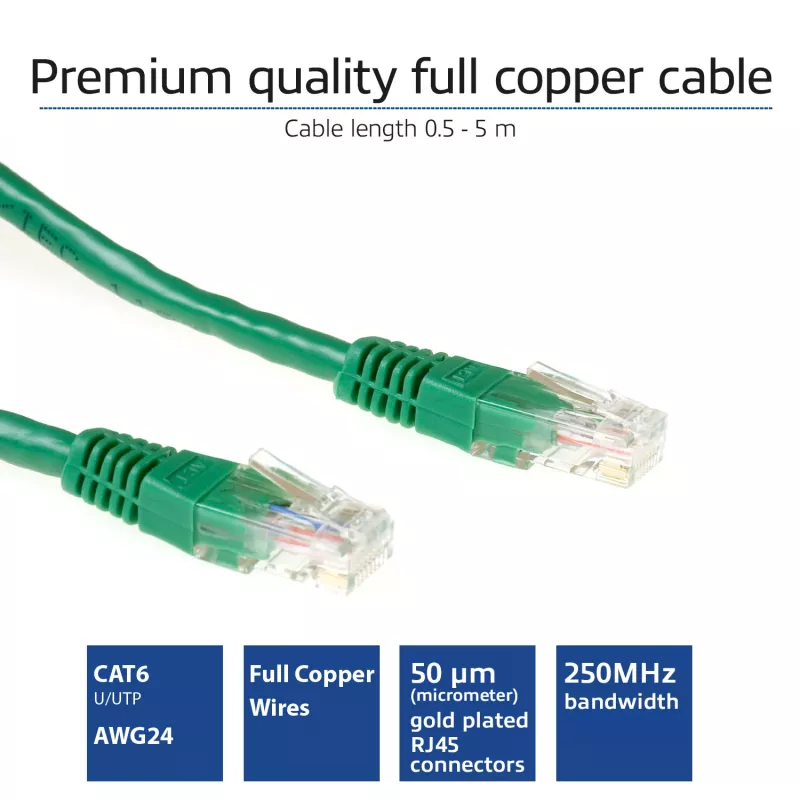

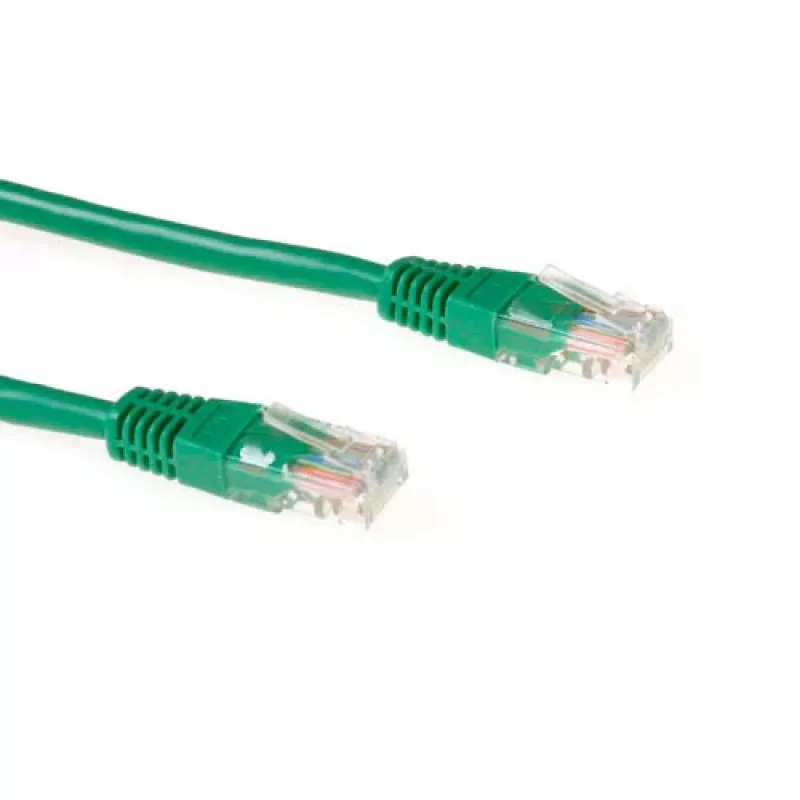

The ACT Green 5 meter U/UTP CAT6 patch cable with RJ45 connectors is a stranded AWG#24 cable designed for high-speed Ethernet connections. It has a PVC sheath in RAL 6016 green and supports frequencies up to 250 MHz, making it suitable for modern LAN environments that require reliable data transmission at speeds up to 10 Gbps over appropriate channel lengths.

Advantages

Gold-plated contacts on the RJ45 plugs improve contact reliability and reduce corrosion. The U/UTP CAT6 design provides good crosstalk and noise performance for typical office and home networks. A 5 m length offers flexible device placement while the PVC sheath delivers mechanical protection and a standardized colour for easy cable management.

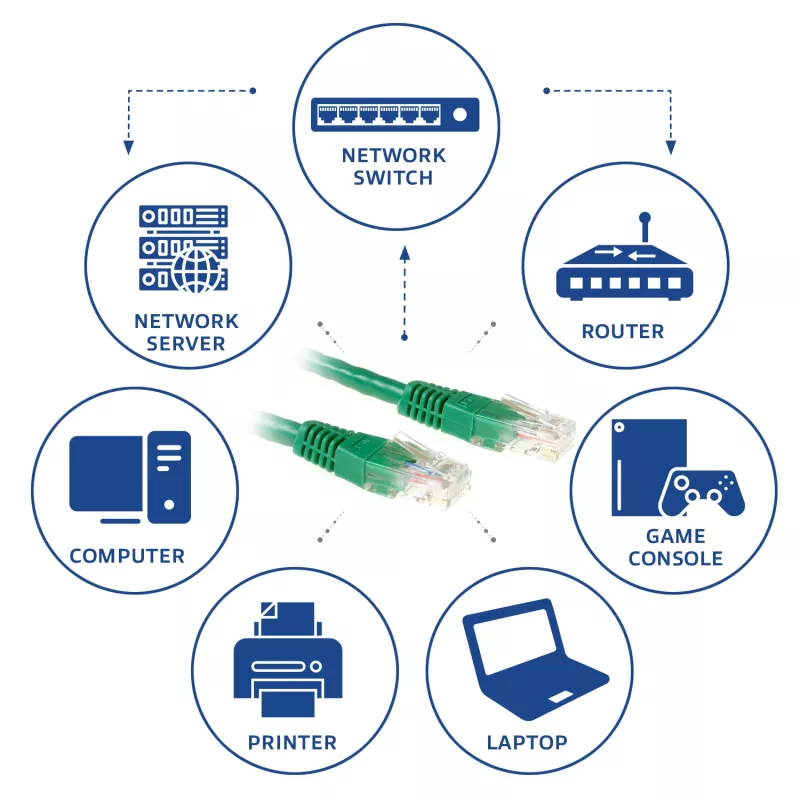

Suitable for

• Wired Ethernet connections for desktop computers and networked devices
• Home and small office local area networks
• Patch panels and network switches within a 5 m reach

Key specifications

• Cable type: U/UTP CAT6
• Length: 5 m
• Conductors: AWG#24 (stranded)
• Bandwidth: 250 MHz
• Connectors: RJ45 with gold-plated contacts
• Sheath material: PVC
• Colour: Green (RAL 6016)
• Supported data rate: up to 10 Gbps (within specified channel limits)

How to use

Plug one RJ45 connector into your network device (PC, switch, router or patch panel) and the other connector into the corresponding port. Ensure connectors are fully inserted until they click. Route the cable to avoid sharp bends and mechanical strain; secure with ties if necessary. Verify link status on connected devices and test network throughput if required.

Recommendations

For best performance, keep total channel length and component ratings within CAT6 specifications and avoid running the cable parallel to high-voltage power lines. Use appropriate cable management to prevent excessive bending or compression of the PVC sheath.
